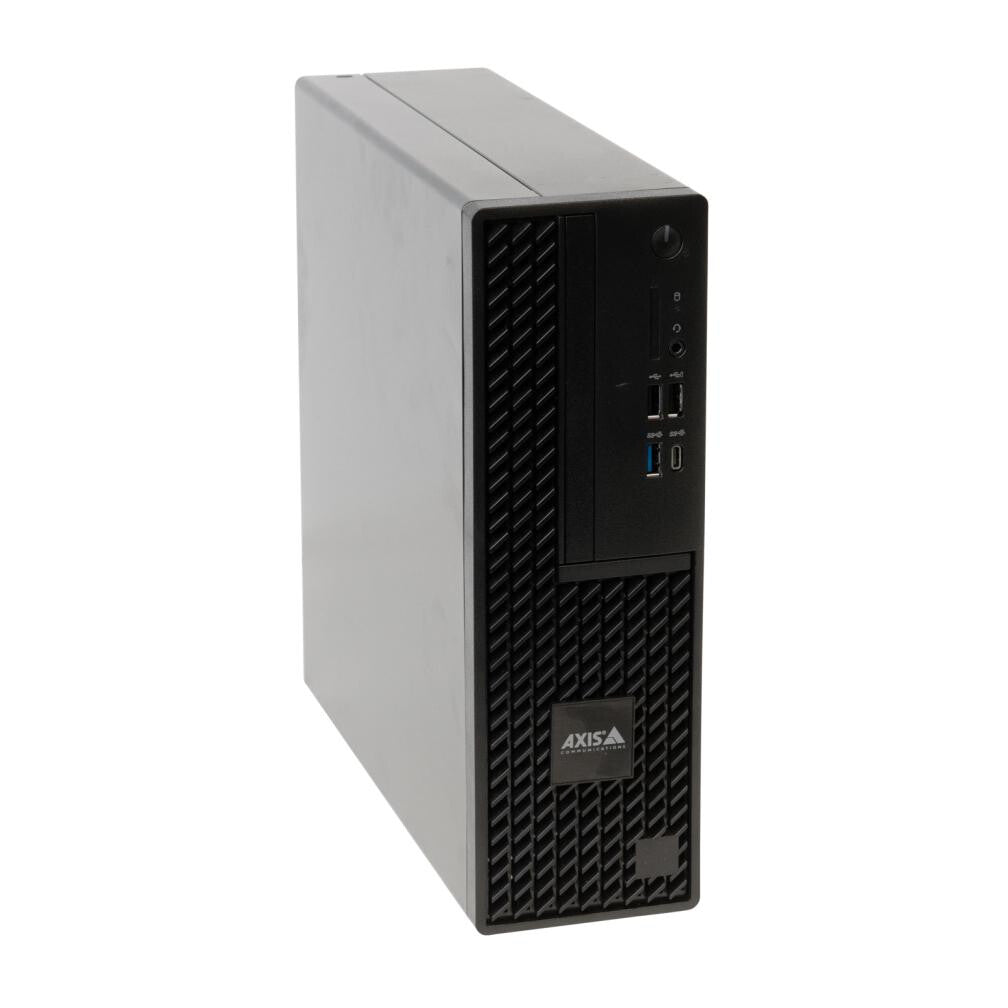

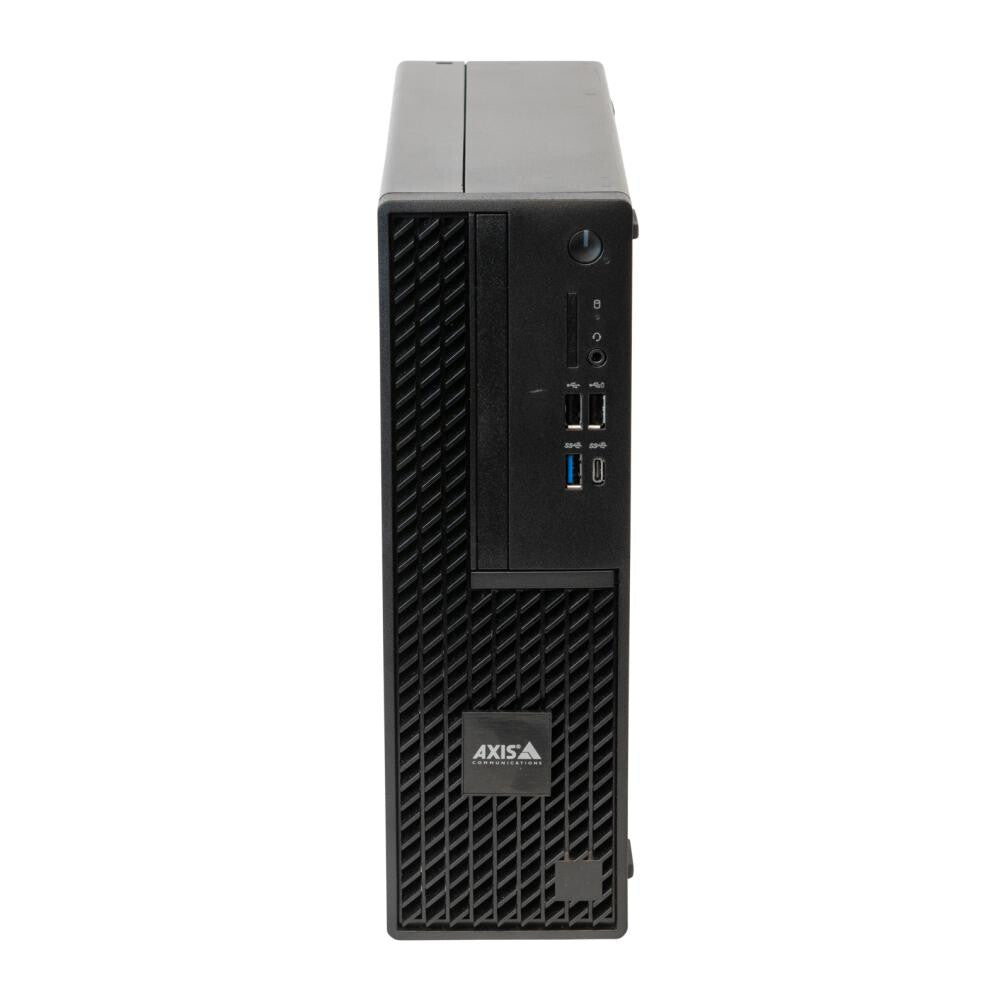

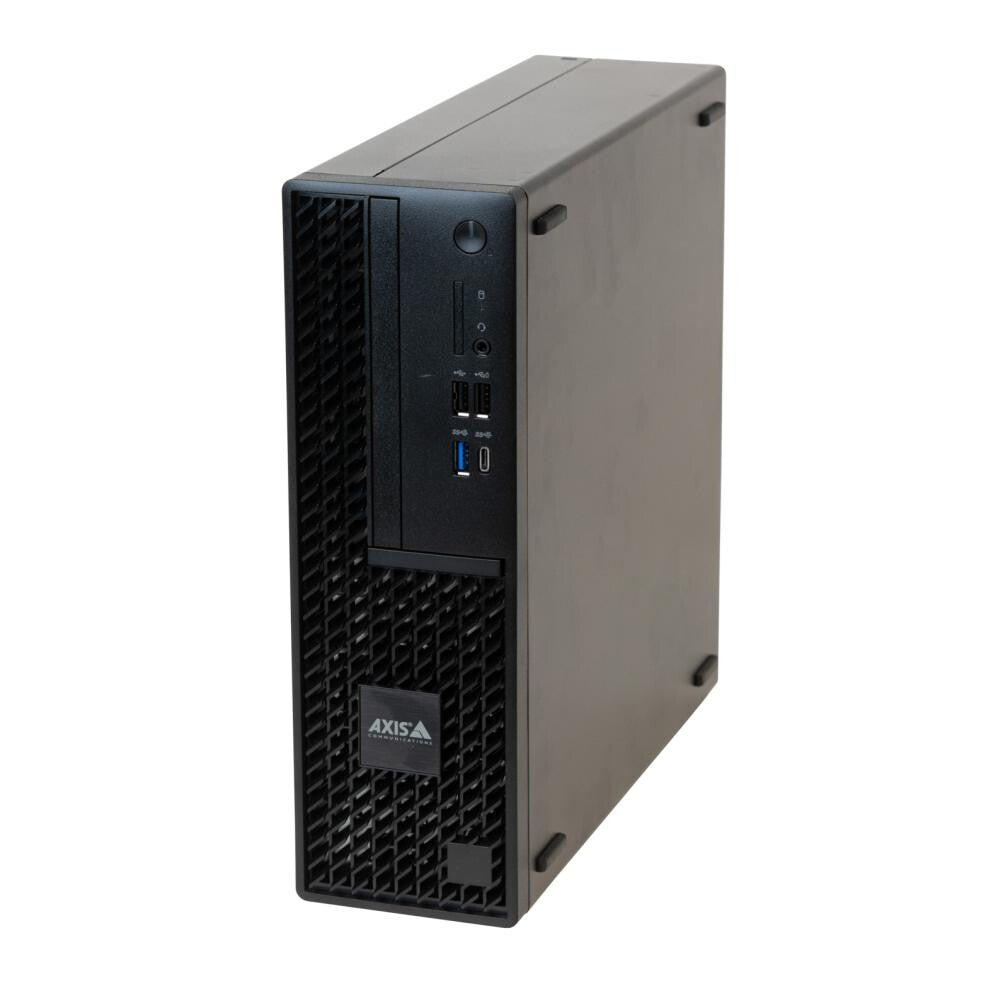

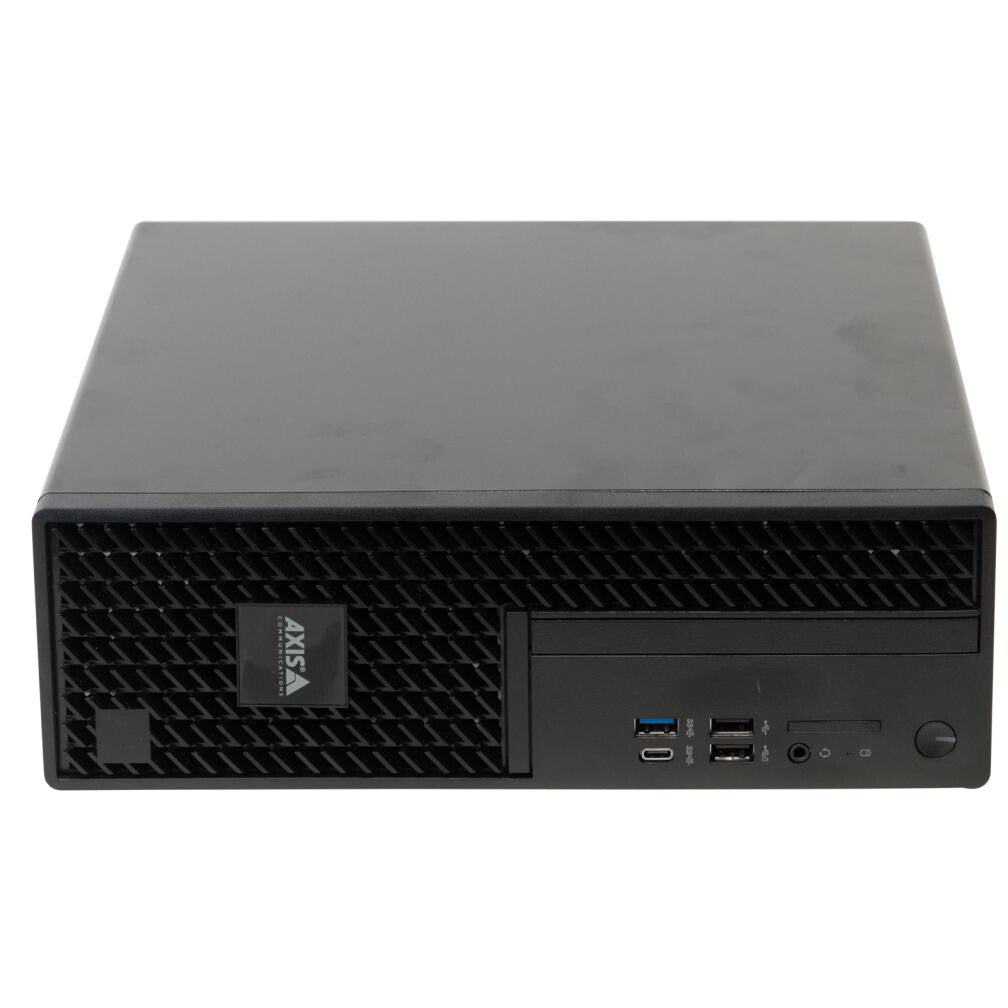

Axis 02692-002 workstation 16 GB 256 GB SSD Windows 10 IoT Enterprise SFF Black
£3,263.99
Couldn't load pickup availability
- AXIS Camera Station client software included; Extensive support and 5-year warranty; Scalable and powerful solution; Supports up to four 4K monitors
Extensively tested and validated with a wide range of Axis products, this powerful workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS S30 Series. It supports up to four 4K resolution monitors for optimal overview. With a small form factor, it’s ideal wherever space is limited. It comes preloaded with AXIS Camera Station client software. Plus, the integrated AXIS Recorder Toolbox installation wizard ensures quick and easy installation. Furthermore, it includes next business day on-site hardware replacement, 5-year warranty, and one point-of-contact for support.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |

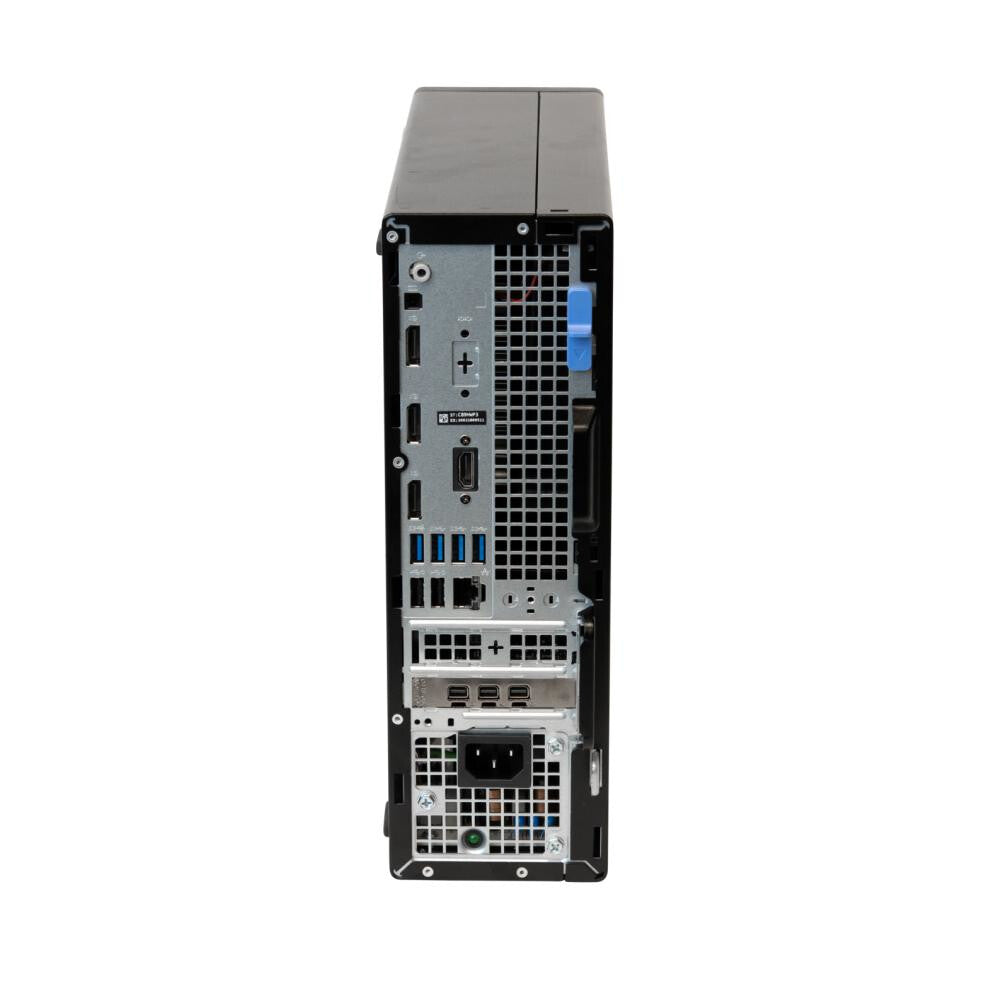

| Ports & interfaces | |
|---|---|
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 4 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | SFF |
| Performance | |
|---|---|
| Product type | Workstation |
| Software | |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Power | |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 300 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.5 kg |
| Height | 293 mm |
| Depth | 290 mm |
| Width | 93 mm |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort to Mini DisplayPort |
| Display included | No |
