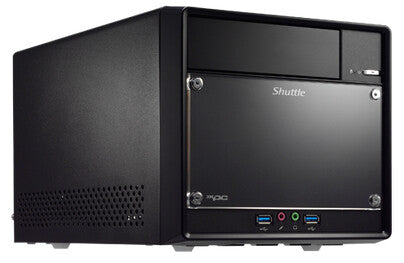

Shuttle XPC cube SH310R4V2 Black Intel® H310 LGA 1151 (Socket H4)
£255.99
Couldn't load pickup availability
- Supports Intel® 8th/9th Genera on Processors up to 8 cores
- High scalability with one PCI-E x16, one PCI-E x1, and two M.2
- Display support with HDMI 2.0a, DisplayPort and VGA outputs
- Mulple USB 3.1 gen 1 and USB 2.0 ports for connec on op ons
- Equipped with Shule's exclusive I.C.E 2™ cooling engine
The SH310R4V2 is an entry-level cube PC with support for Intel’s 8th/9th gen processors. Featuring up to 8 cores with integrated UHD graphics, the SH310R4V2 provides more power for demanding workflows. With HDMI, DP and VGA outputs built-in, users have more flexible opons running mulple displays. Despite its seeming small cube, there is enough room to accommodate a whopping 32GB of DDR4, a fast M.2 SSD, a dual-slot graphics card, and even three storage drives. For a personal look and feel, the front panel can be customized by adding individual designs
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5,5.25,M.2 |
| Storage drive interface | PCI Express |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Housing material | Aluminium |
| Performance | |
|---|---|
| Motherboard chipset | Intel® H310 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| BIOS type | UEFI AMI |
| ACPI version | 3.0 |
| Trusted Platform Module (TPM) | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
| General | |
|---|---|
| Product family | XPC cube |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Certificates | |
|---|---|
| Certification | CB, CE, BSMI, ETL, FCC, RCM, RoHS, VCCI |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 300 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 216 mm |
| Depth | 332 mm |
| Height | 198 mm |
| Weight | 3.3 kg |
| Package weight | 4.4 kg |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
| Other features | |
|---|---|
| Country of origin | China |
