Shuttle Slim PC DH470C , S1200, 1x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA
Couldn't load pickup availability
- 1.3L- slim PC for 10th Gen. socket 1200 CPU's
- Supports 24/7 operating in ambient temperatures of up to 50 °C
- Supports 3x 4K UHD Displays (1 x HDMI, 2x DP)
Robust 1.3-litre Slim PC supports Intel "Comet Lake-S" 10-core processors and three UHD displays

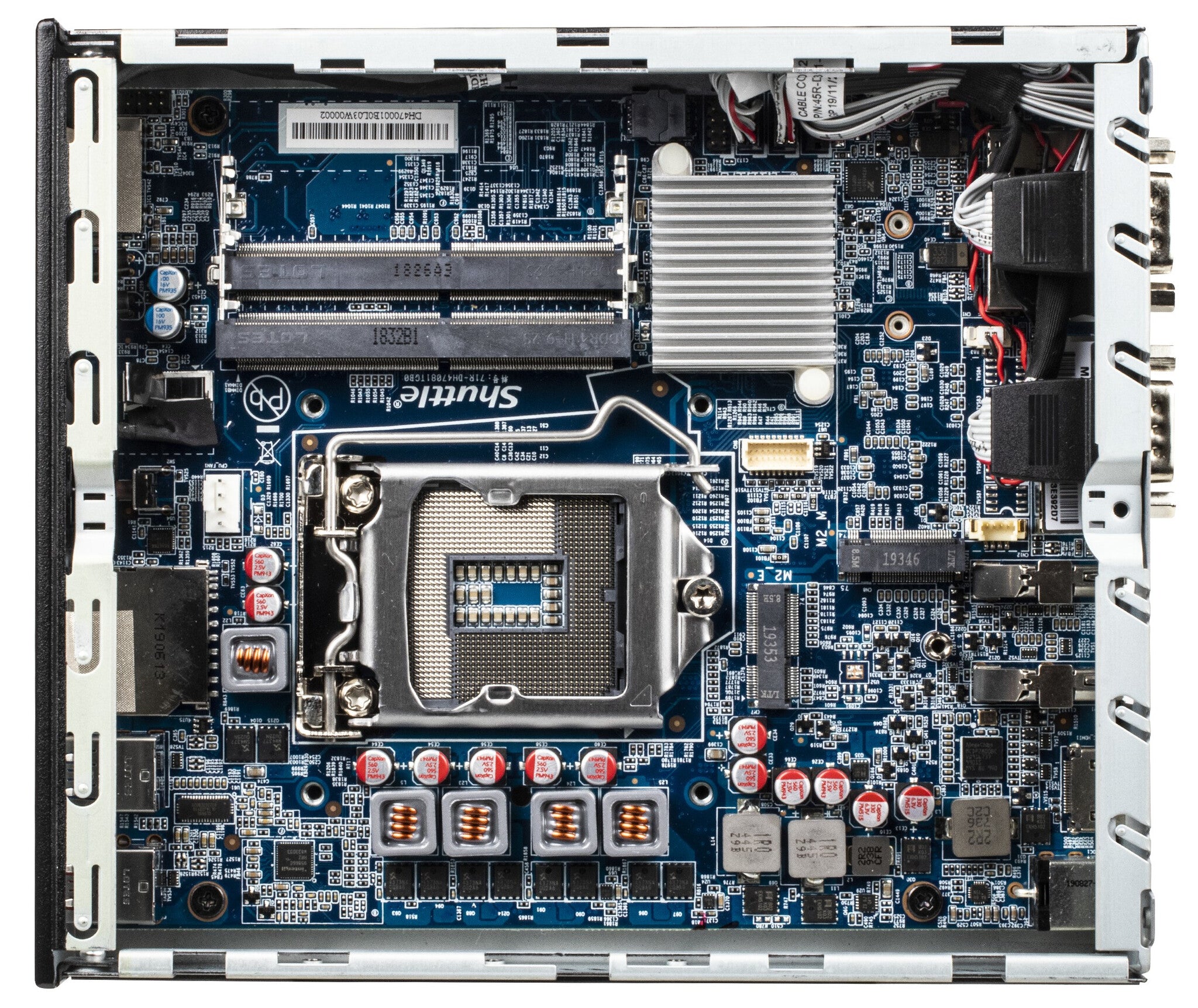

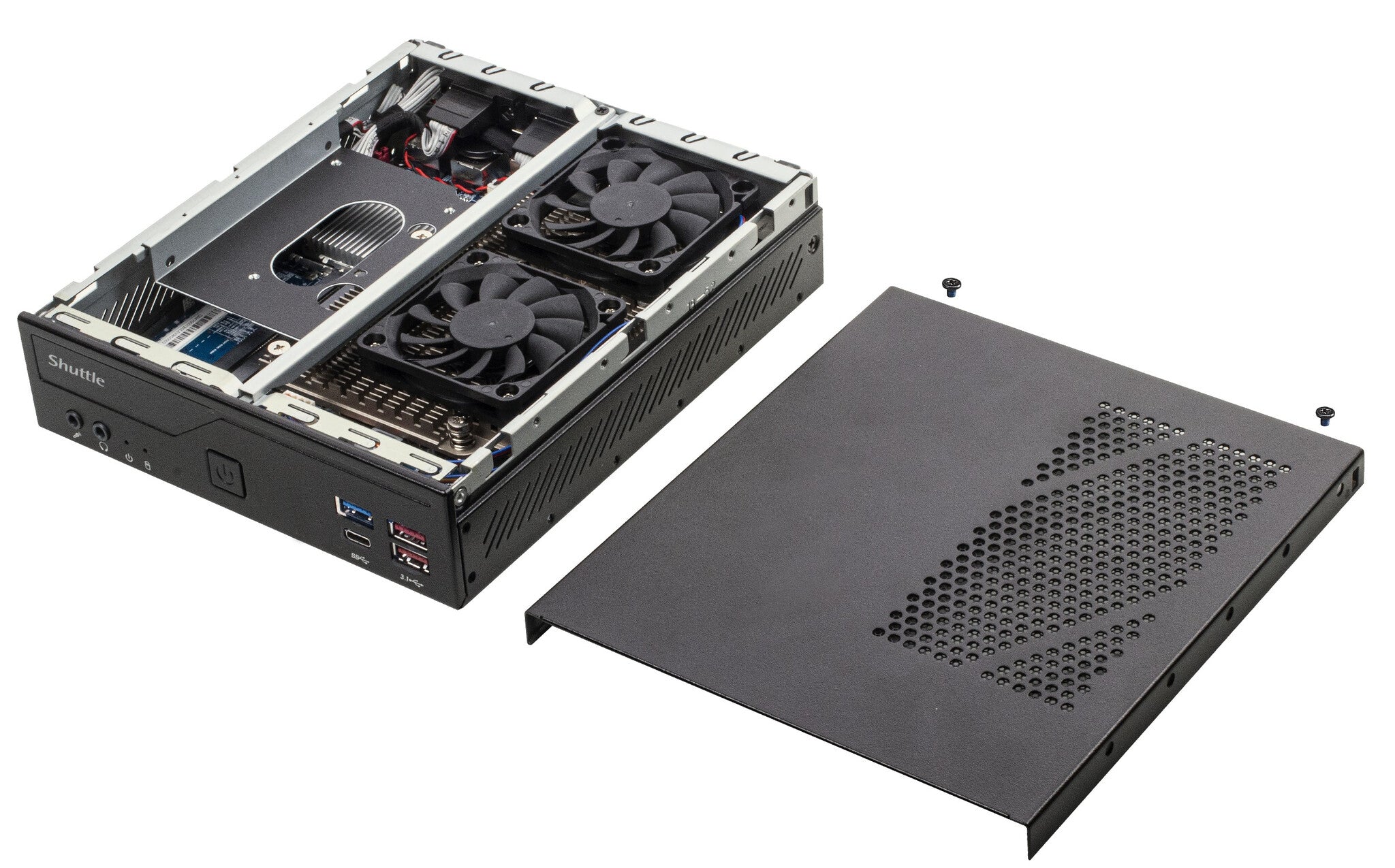

The Shuttle XPC slim Barebone DH470C with H470 chipset houses the performance of Intel's 10th generation Core desktop processors (codenamed Comet Lake-S) for socket LGA1200 in a compact 1.3-litre format. The DH470C allows for three Ultra HD displays to be operated at the same time via HDMI 2.0a and 2x DisplayPort. It also offers Dual Intel LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666,2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT |

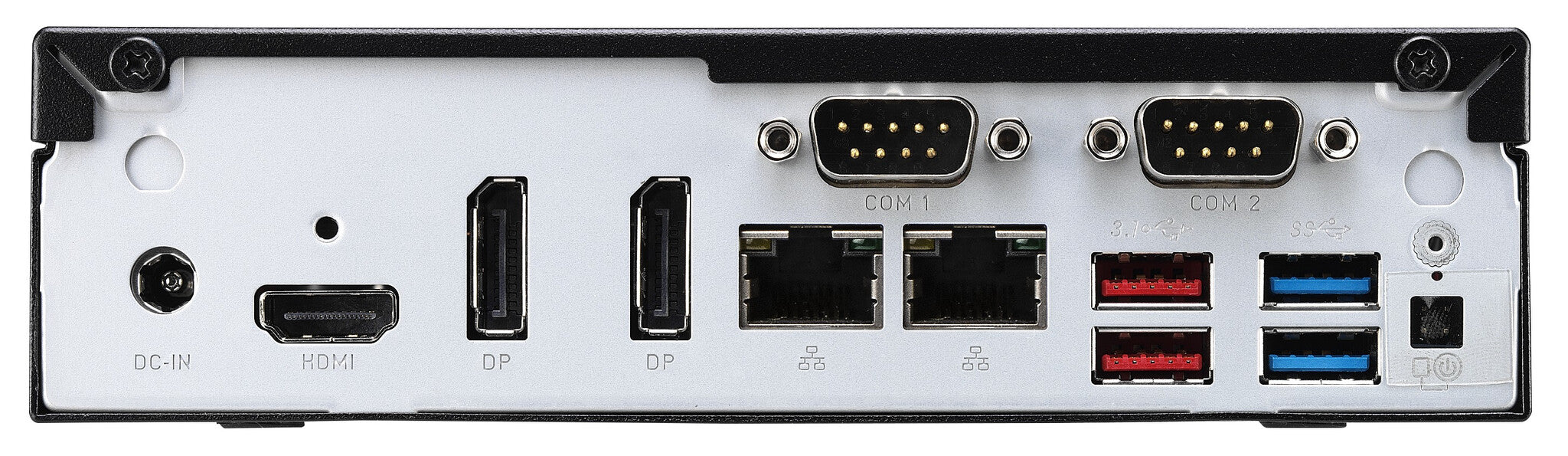

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Design | |
|---|---|
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 75 mm |
| Product type | Mini PC barebone |
| Performance | |
|---|---|
| Motherboard chipset | Intel H470 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC662 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
