MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Couldn't load pickup availability
- Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU
- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
- MSI Power Link support
- MSI Power Meter software
- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3

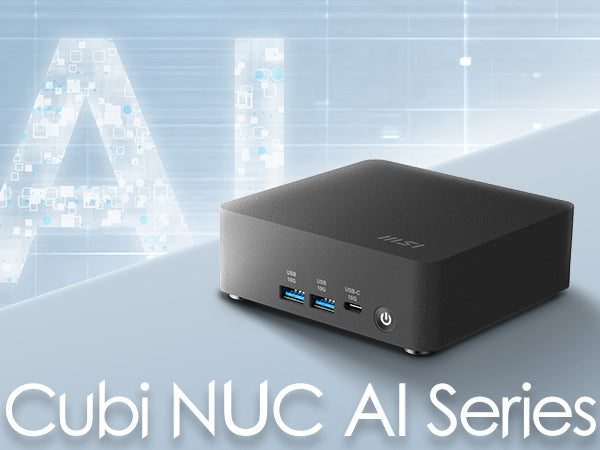

The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

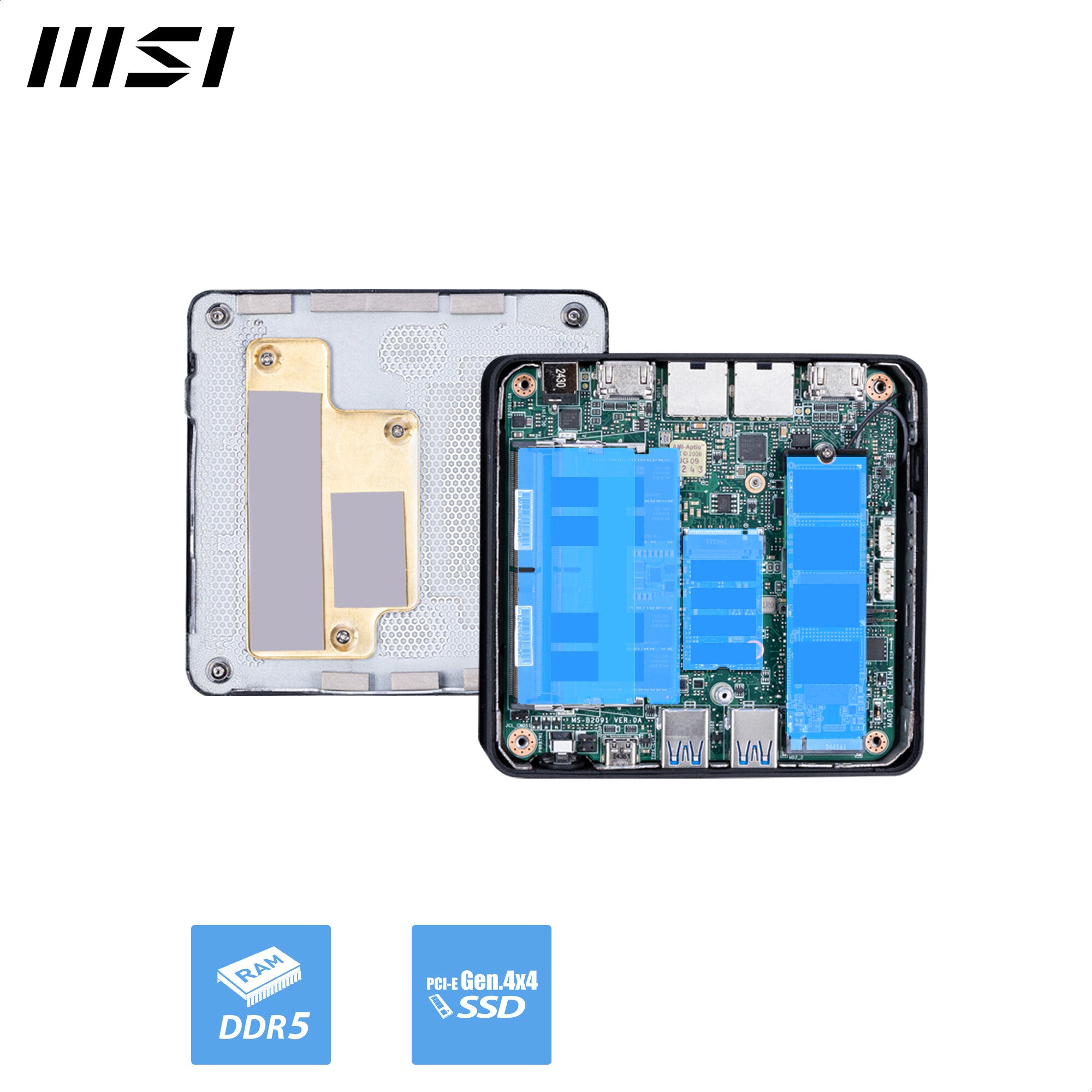

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

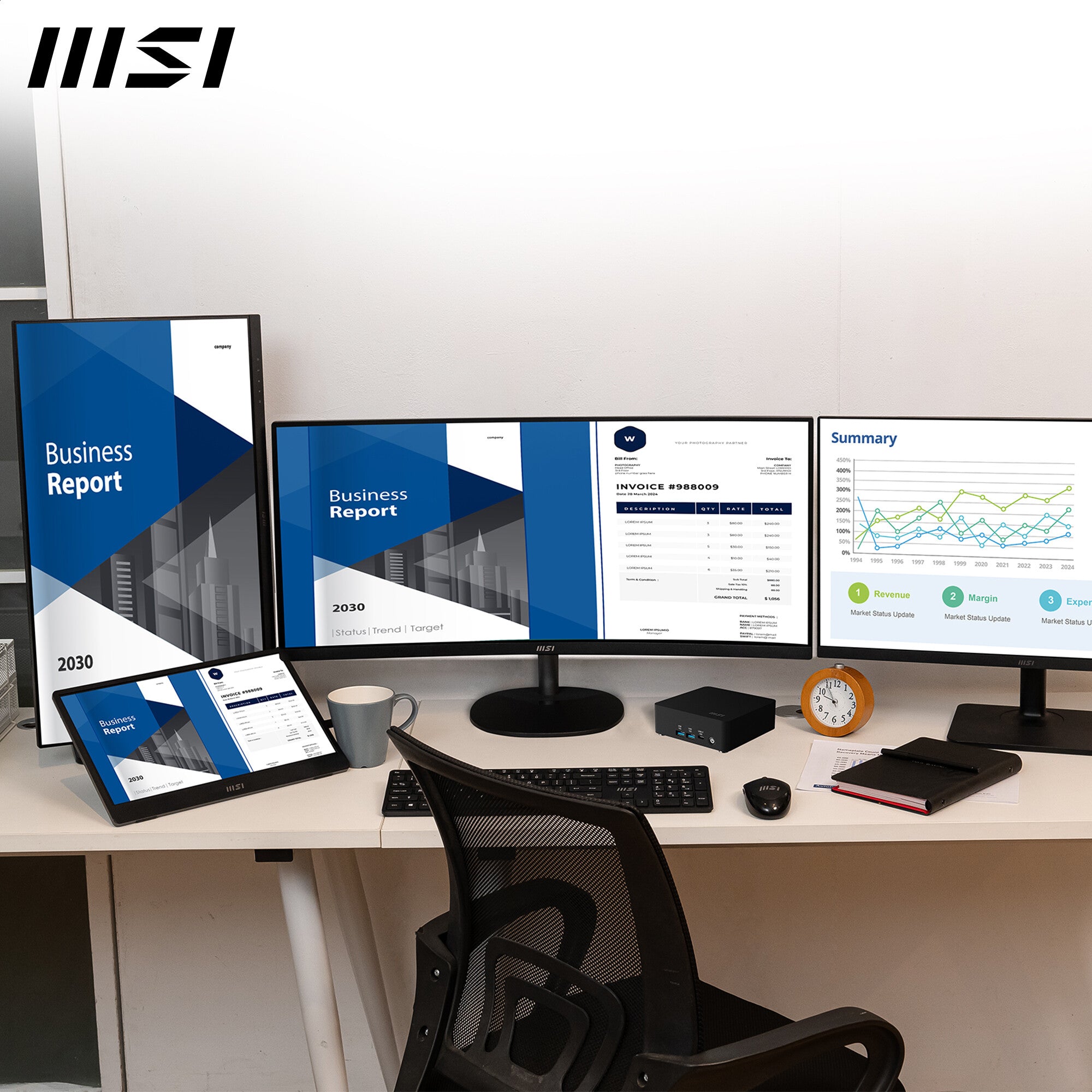

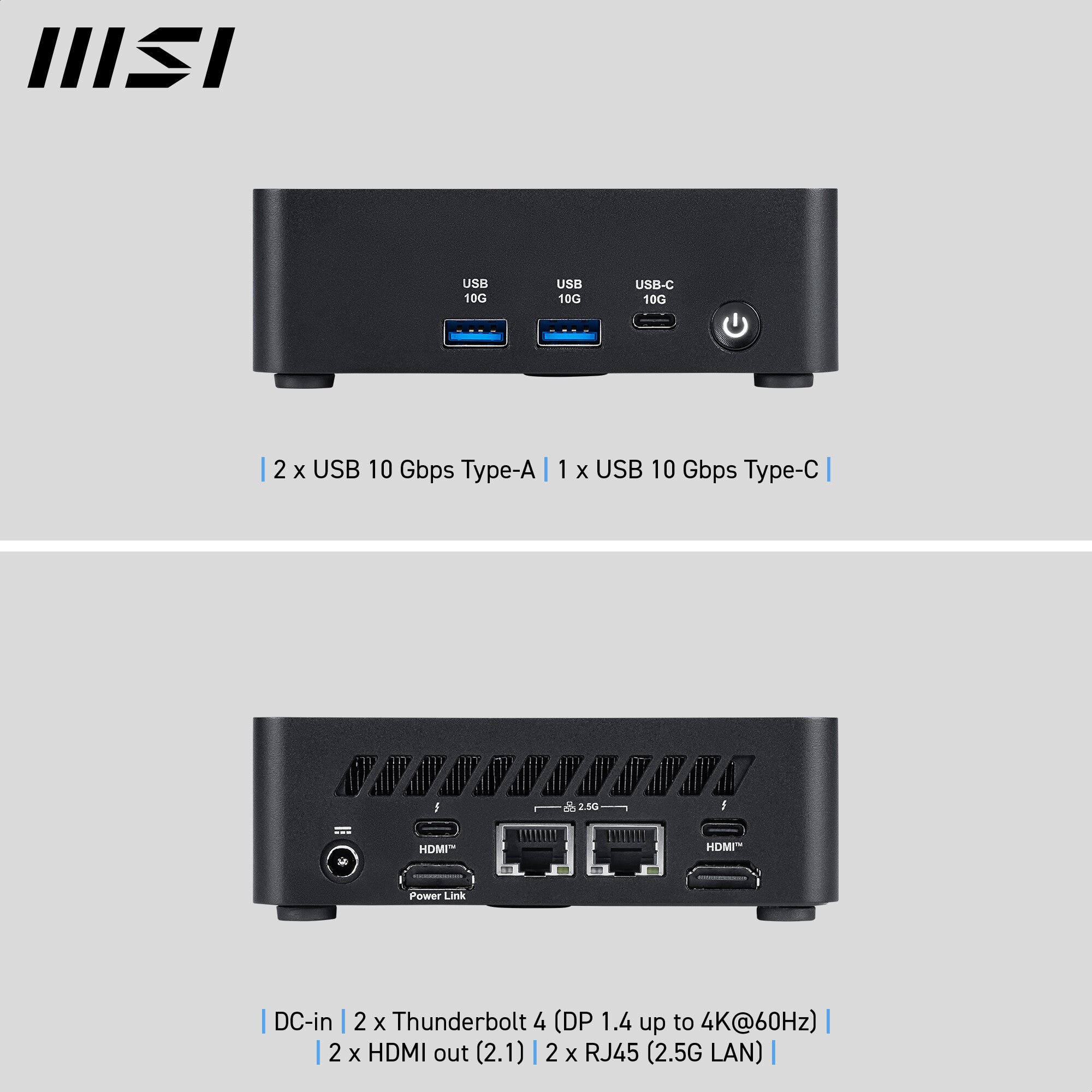

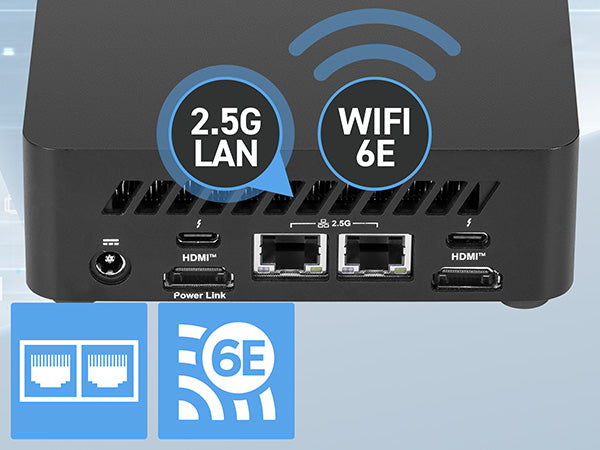

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content

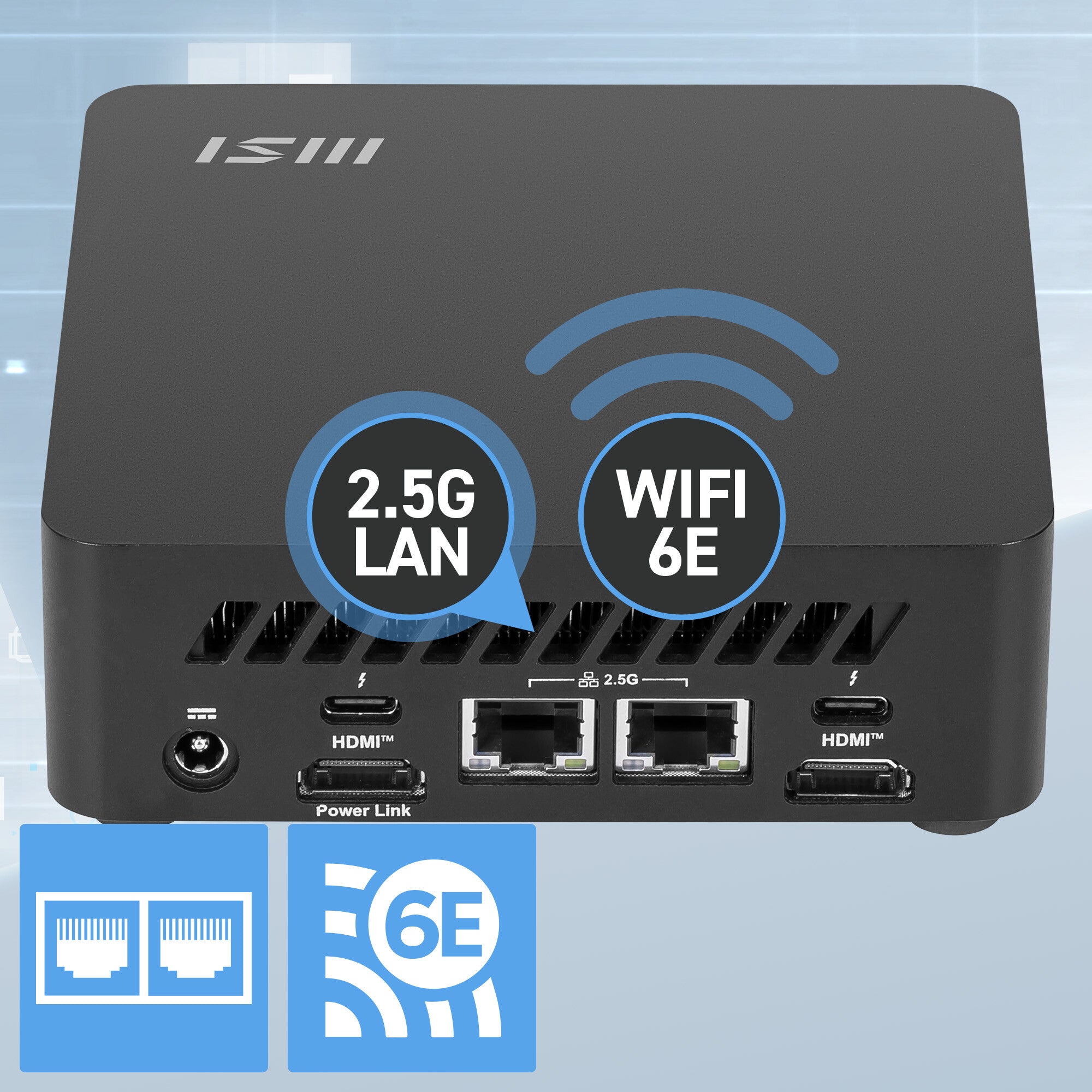

Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series

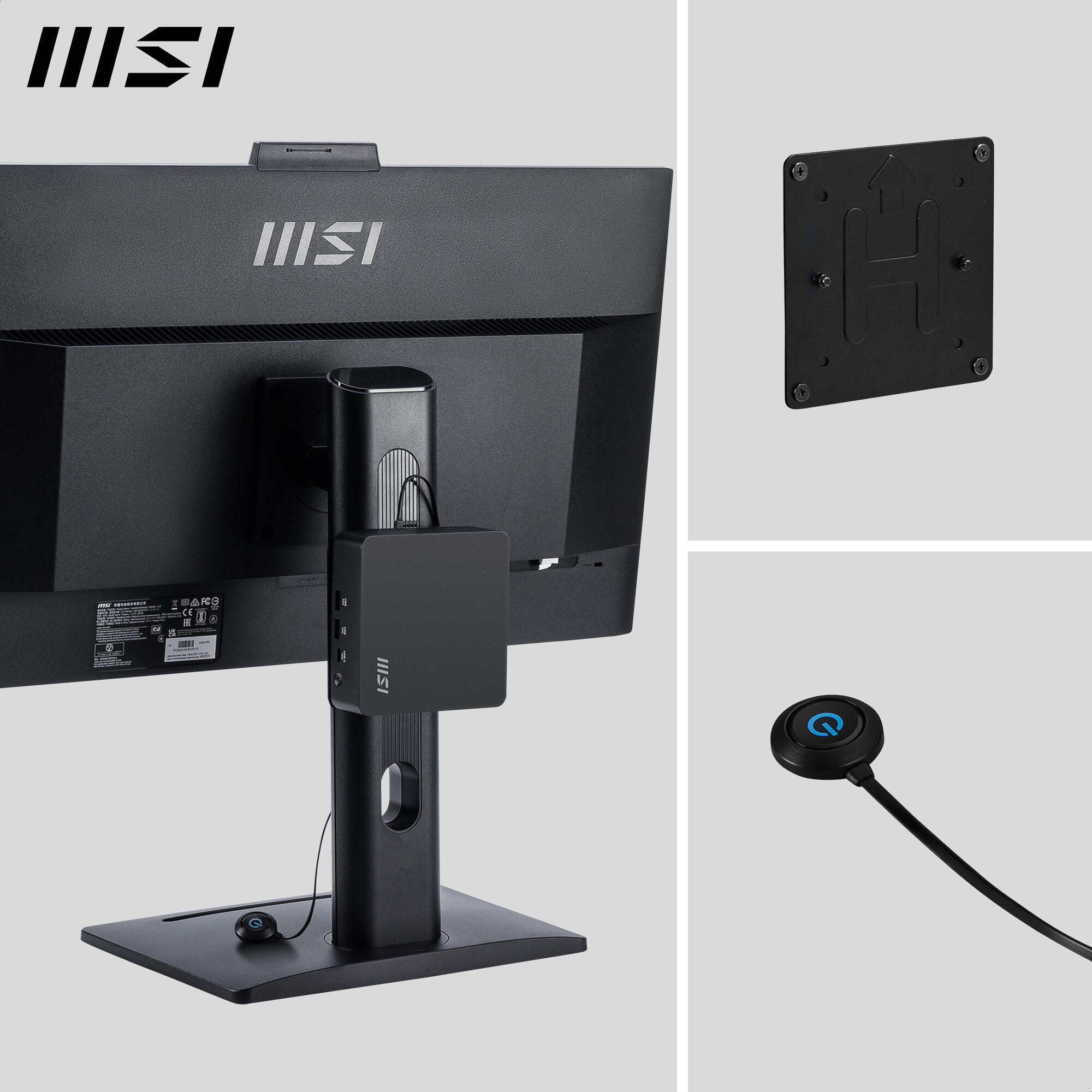

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment

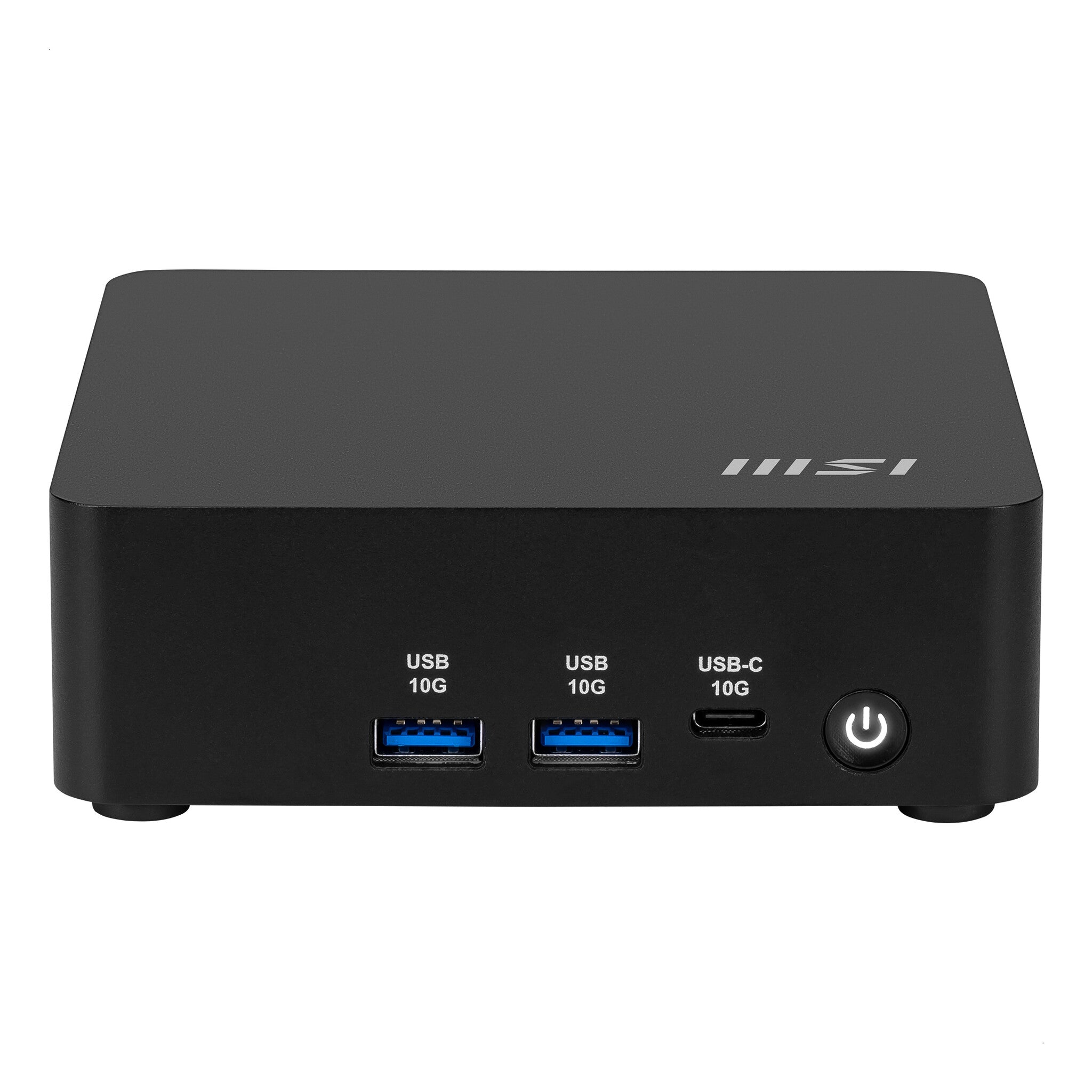

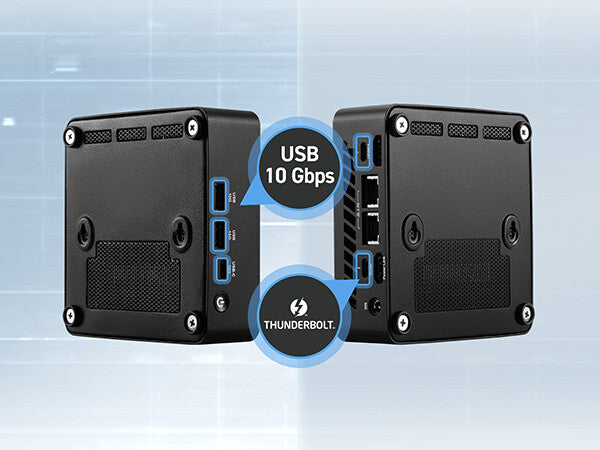

The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
| Processor | |
|---|---|
| ECC supported by processor | No |
| Thermal Design Power (TDP) | 28 W |
| L3 cache | 12 MB |
| L2 cache | 12 MB |
| Processor cache | 24 MB |
| Processor lithography | 7 nm |
| Low Power Efficient-core Base Frequency | 800 MHz |
| Efficient-core base frequency | 1 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-cores | 2 |
| Efficient cores | 8 |
| Performance cores | 6 |
| Processor frequency | 1.4 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor threads | 22 |
| Processor cores | 16 |
| Processor model | 155H |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Non-ECC | No |
| ECC | No |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 5200 MHz |
| Memory bandwidth (max) | 64 GB/s |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Card reader integrated | No |
| Number of storage drives supported | 2 |
| NVMe | Yes |
| Storage drive interface | PCI Express |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel I226-V |
| Bluetooth Low Energy (BLE) | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | No |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| On/off switch | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | Cube |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992.C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Trusted Platform Module (TPM) version | 2.0 |
| Supported processor frequency (max) | 4.8 GHz |
| Number of processors supported | 1 |
| Processor socket | BGA 2049 |
| Motherboard form factor | NUC |
| Processor special features | |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel On-Demand Power Redundancy Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Fast Memory Access | No |
| Intel 64 | Yes |
| Intel Visual BIOS | No |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Express BIOS update | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Conflict-Free | Yes |
| Intel® Rapid Start Technology | No |
| Intel Advanced Management Technology | No |
| Intel® Unite™ | No |
| Intel Unite installed | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel TSX-NI | No |
| Intel Smart Connect Technology | No |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Smart Cache | Yes |
| Intel® vPro™ Platform Eligibility | No |
| General | |
|---|---|
| Product family | Cubi |
| Software | |
|---|---|
| Operating system installed | No |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Technical details | |
|---|---|
| PSTI certified | No |
| Not classified as hazardous under GHS | No |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Package height | 94 mm |
| Package depth | 220 mm |
| Package width | 205 mm |

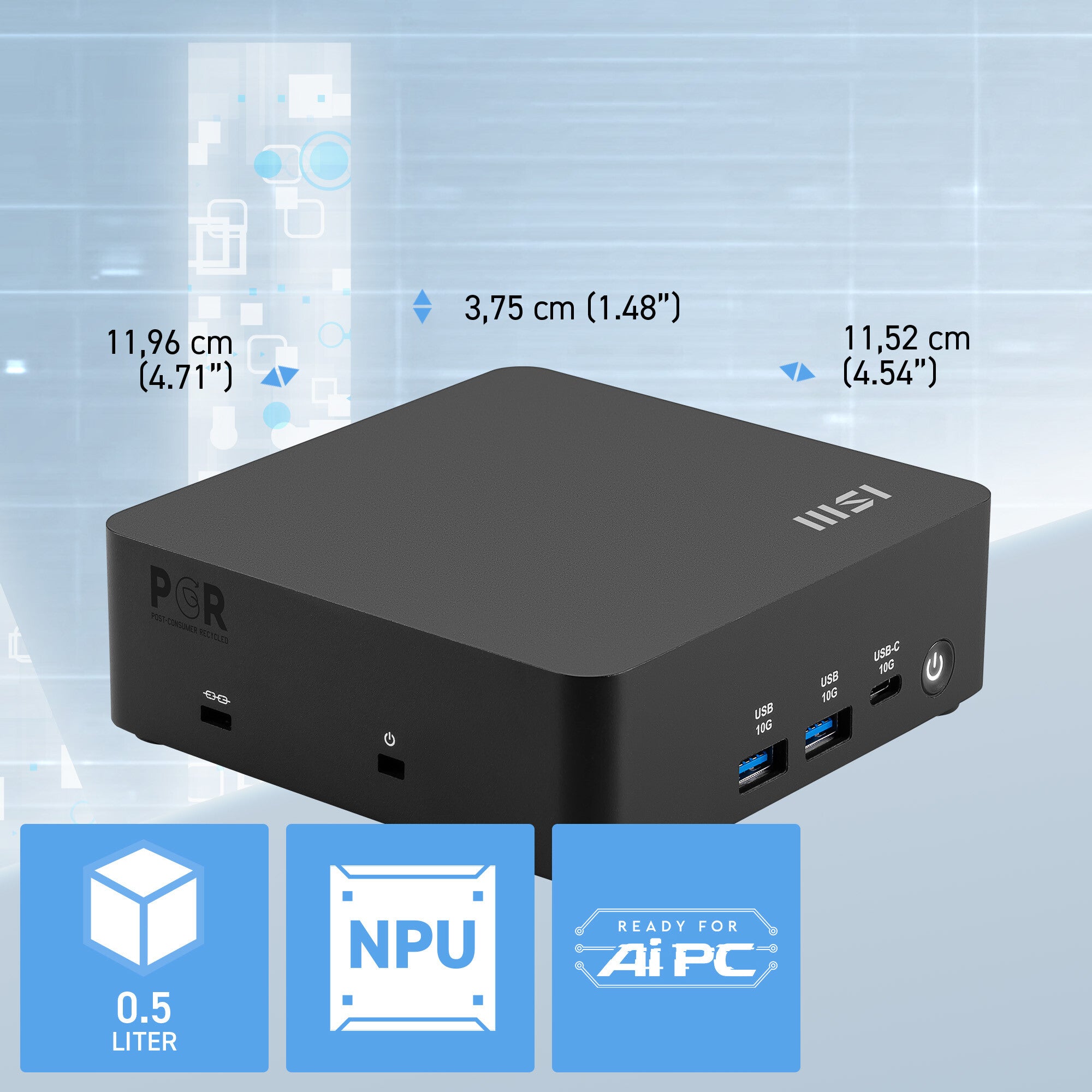

| Height | 37.5 mm |
| Depth | 115.2 mm |
| Width | 119.6 mm |
| Packaging content | |
|---|---|
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| Drivers included | No |
| Quick start guide | No |
| AC adapter included | No |
| Power cord included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Warranty period | 3 year(s) |
| Introduction month | June |
| Introduction year | 2025 |
