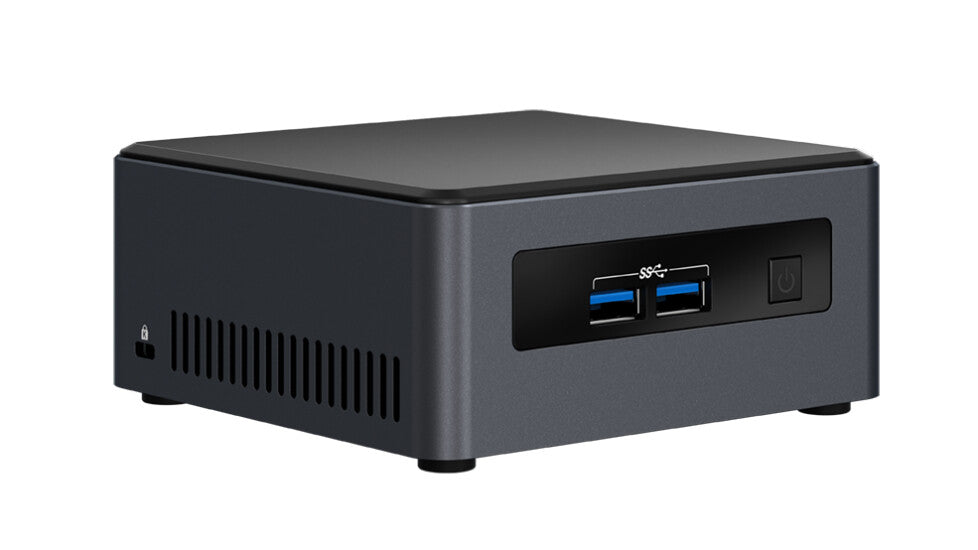

Intel NUC BLKNUC7I3DNH2E PC/workstation barebone UCFF Black i3-7100U BGA 1356 2.4 GHz
Couldn't load pickup availability
- UCFF Black
- Built-in processor Intel i3-7100U 2.4 GHz
- 2 SO-DIMM Maximum internal memory: 32 GB DDR4-SDRAM
- HDD & SSD M.2,2.5
- Intel® HD Graphics 620
- Ethernet LAN Wi-Fi
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 7th gen Intel® Core™ i3 |
| Processor model | i3-7100U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.4 GHz |
| Processor lithography | 14 nm |
| Processor cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| Processor codename | Kaby Lake |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 620 |
| Number of displays supported | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| LAN controller | Intel® I219-LM |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0a |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| M.2 card slot (storage) | 2280 (M-key) |
| USB ports quantity | 4 |
| M.2 card slot (wireless) | 22x30 (key E) slot |
| Number of SATA III connectors | 2 |
| Serial port via internal header | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Graphics output | Dual HDMI 2.0a, 4-lane eDP 1.4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| ARK ID | 122498 |
| Status | Launched |
| Product family | Intel® NUC Kits |
| Product series | Intel® NUC Kit with 7th Generation Intel® Core™ Processors |
| Product codename | Dawson Canyon |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™ i3 |
| BIOS type | EEPROM |
| BIOS memory size | 64 Mbit |
| Trusted Platform Module (TPM) | No |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Insider™ | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Smart Response Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel Rapid Storage Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel ME Firmware Version | 11.7 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | Yes |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471500150 |
| Software | |
|---|---|
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise* |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 52 mm |
| Packaging content | |
|---|---|
| Processor included | Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz) |
| Other features | |
|---|---|
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector |
| HDD size | 2.5" |
| Processor ARK ID | 95442 |
| Number of SATA connectors | 2 |
| DC input voltage | 12 - 24 V |
| Launch date | Q3'17 |
