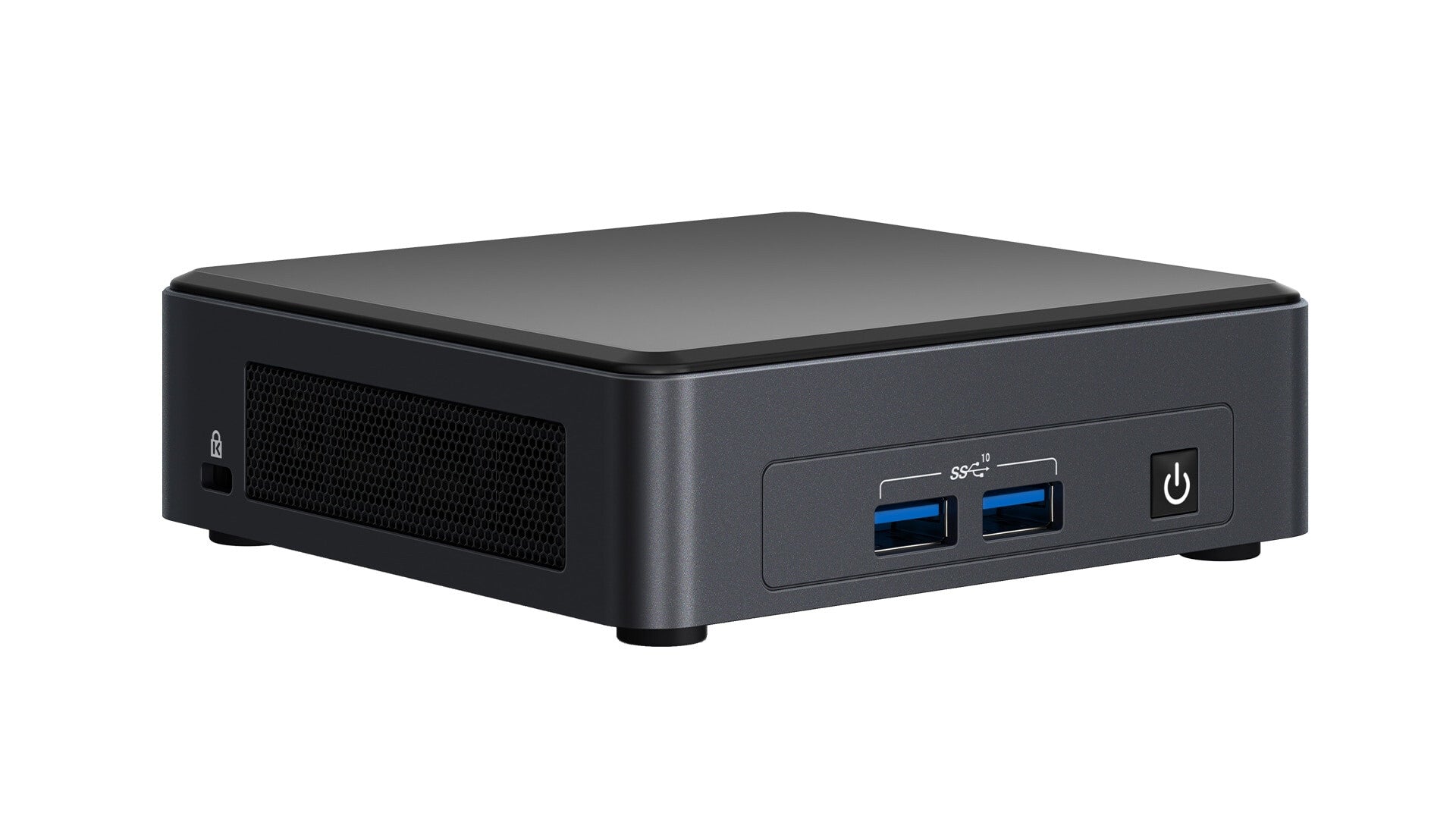

Intel NUC 11 Pro UCFF Black i3-1115G4 Intel SoC
£306.99
Couldn't load pickup availability
- Target usages: Business computing, home office, digital signage, edge compute, and meeting room hub
- Processor: 11th Gen Intel® Core™ i3-1115G4 processor runs up to 4.2 GHz Turbo
- OS support: Microsoft Windows® 10, Windows 10 IOT Enterprise, Windows Server 2019, and compatible with various Linux distributions
- Memory: Up to 64 GB of ultra-fast dual-channel DDR4-3200 memory
- Storage: M.2 22x80 M-key slot for up to Gen 4 NVMe SSD, M.2 22x42 B-key slot for SATA SSD
- Connectivity: Intel® Wi-Fi 6 (802.11ax), Intel® i225-LM 2.5 Gbps Ethernet, dual Thunderbolt™ ports, and four USB ports
- Intel® UHD graphics
- Support for up to quad extended displays via dual HDMI with built-in CEC per port, and dual DisplayPort via Thunderbolt ports
- Display emulation of HDMI ports for headless and remote virtual display, as well as persistent display emulation capability
- Slim chassis just 117 x 112 x 37 mm
The Intel® NUC 11 Pro slim kit is a compact system built to drive the future of business. The 11th Gen Intel® Core™ i3 processor delivers powerful performance for edge compute, office productivity, and collaboration.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor lithography | 10 nm |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 2 |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| Number of displays supported | 4 |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| LAN controller | Intel I225-LM |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Internal USB 2.0 ports quantity | 2 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| USB ports quantity | 4 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| Thunderbolt 3 ports quantity | 1 |
| Thunderbolt ports quantity | 2 |
| Serial port via internal header | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Expansion slots | |
|---|---|
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Product type | Mini PC barebone |
| ARK ID | 205593 |
| Status | Launched |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| Motherboard chipset | Intel SoC |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | No |
| Idle States | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel ME Firmware Version | 15 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux, Ubuntu 20.04 LTS |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 12 - 24 V |
| Number of power supply units | 1 |
| Power supply | 90 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Packaging content | |
|---|---|
| Power cord included | No |
| Other features | |
|---|---|
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| DC input voltage | 12 - 20 V |
| Launch date | Q1'21 |
