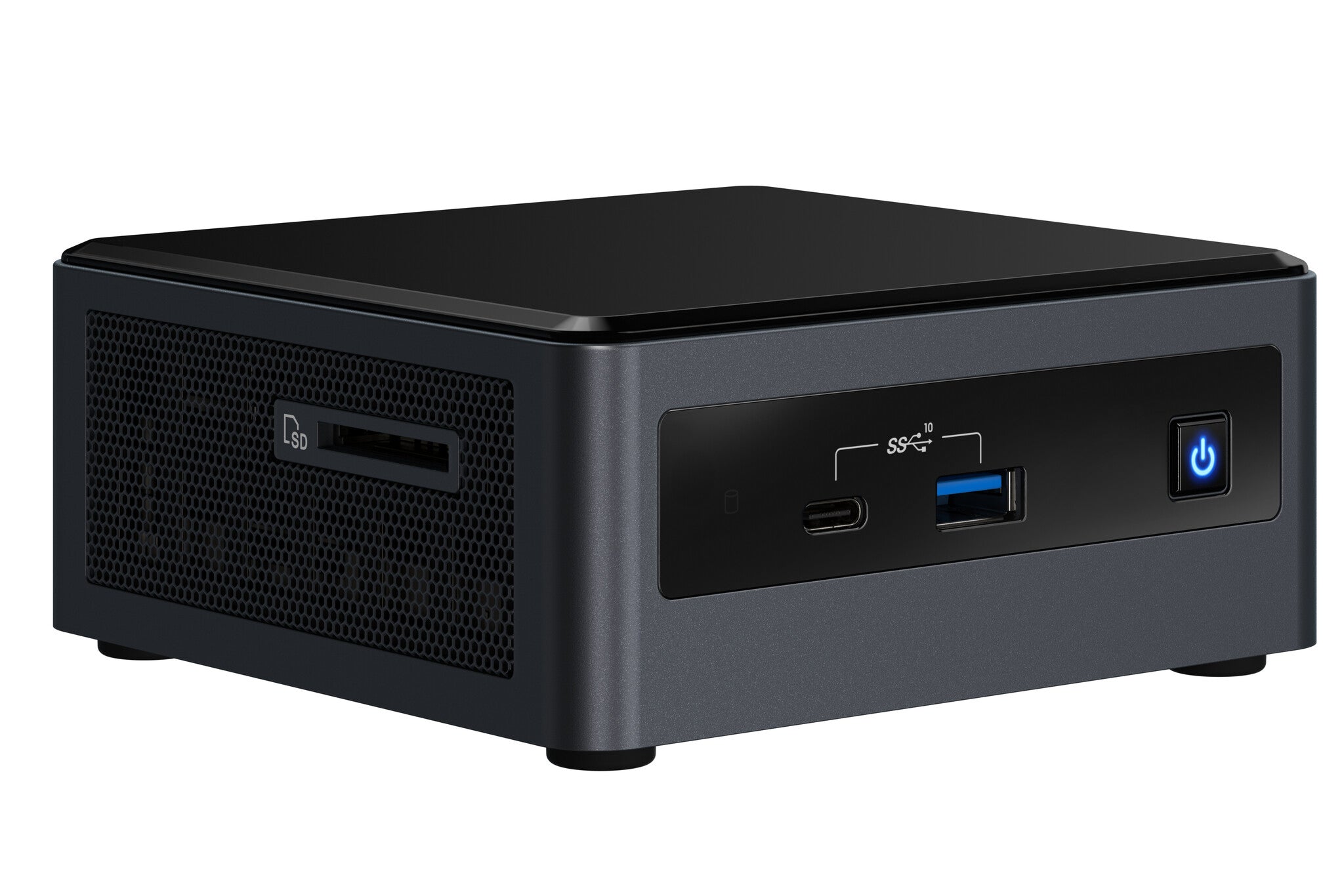

Intel NUC 10 Performance kit - NUC10i3FNHN UCFF Black i3-10110U BGA 1528 2.1 GHz
£288.99
Couldn't load pickup availability
- UCFF Black
- Built-in processor Intel i3-10110U 2.1 GHz
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- HDD & SSD M.2,2.5
- On-board graphics card Intel® UHD Graphics
- Ethernet LAN Wi-Fi

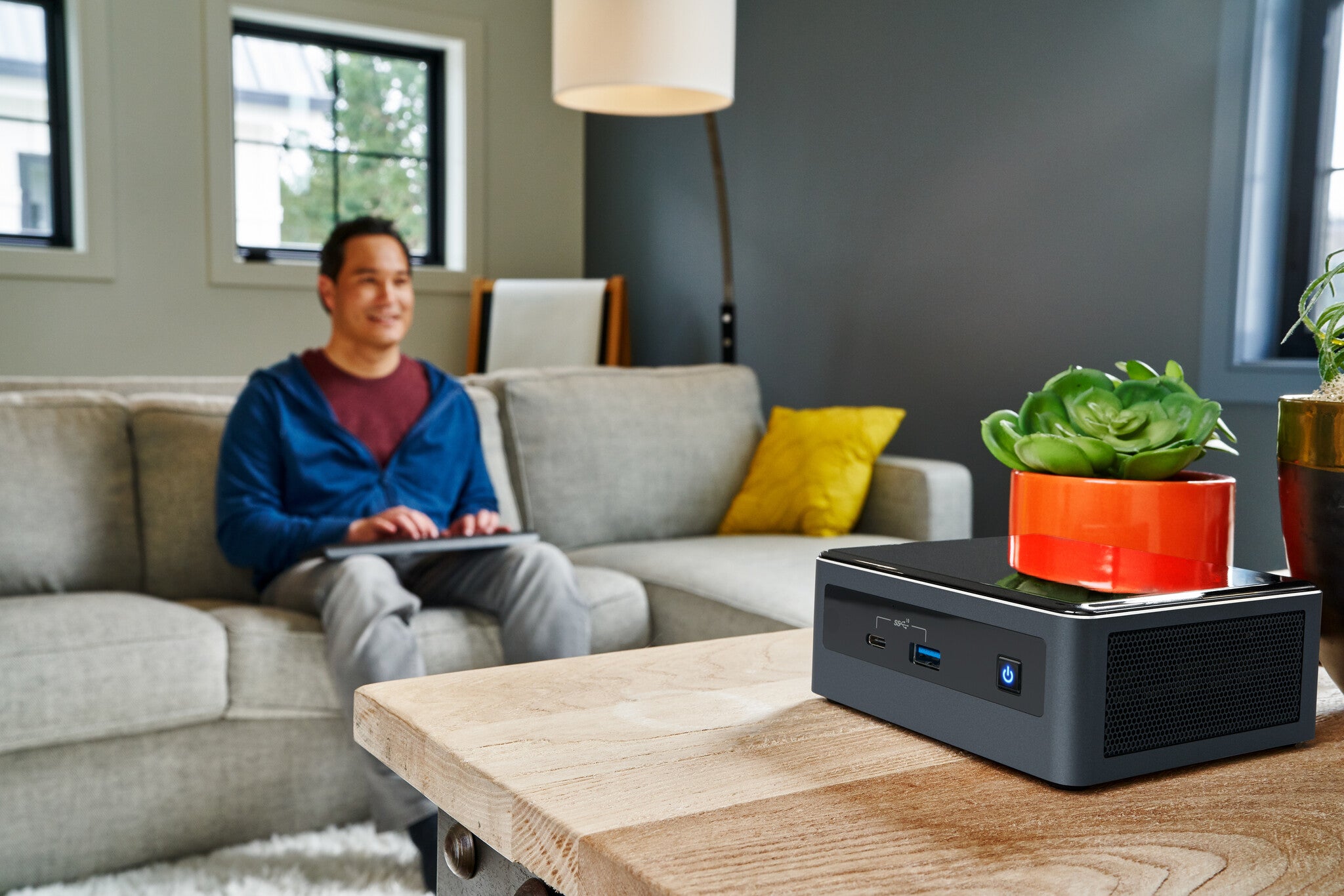

Featuring the power of 10th generation Intel® Core™ processors, the Intel® NUC 10 Performance has the power to create content as well as consume it. Record and mix music, add animation effects to your video edits, or over-binge your favorite shows in stunning ultra high-def 4K. Whatever it is, this Intel NUC brings full-size PC performance at a size small enough to fit in the palm of your hand.
Available with a choice of hard drive configurations to meet your speed and storage needs, the NUC 10 Performance has the ports to connect every last peripheral and keep your data moving at top speed. And with triple display support, you can multitask across multiple screens and give your brilliance room to spread out.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.1 GHz |
| Processor lithography | 14 nm |
| Processor cache | 4 MB |
| Thermal Design Power (TDP) | 25 W |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor codename | Comet Lake |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Removable memory card slot | SDXC with UHS-II support |
| Memory bandwidth (max) | 42.6 GB/s |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 3 |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| LAN controller | Intel® I219-V |
| Bluetooth | Yes |

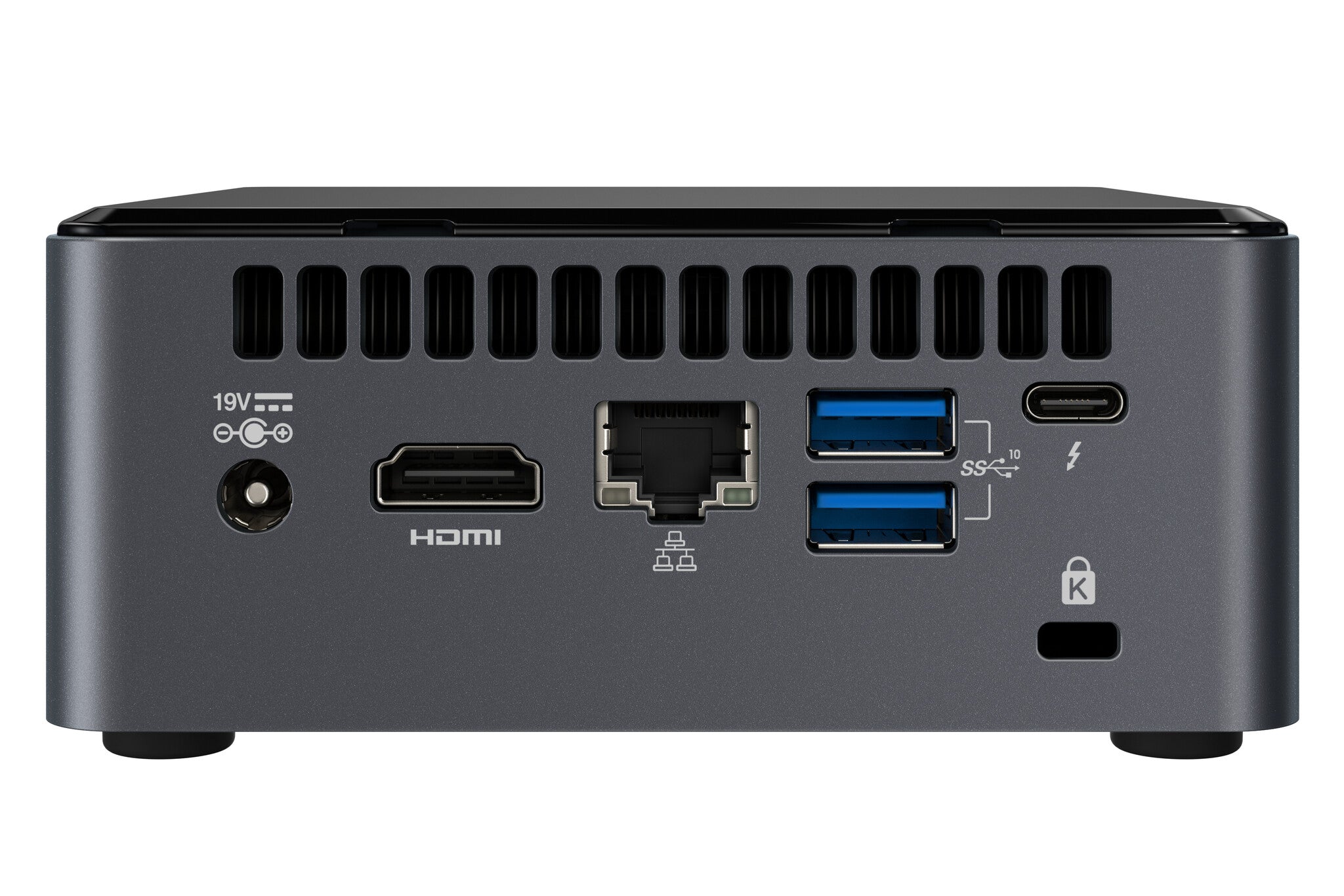

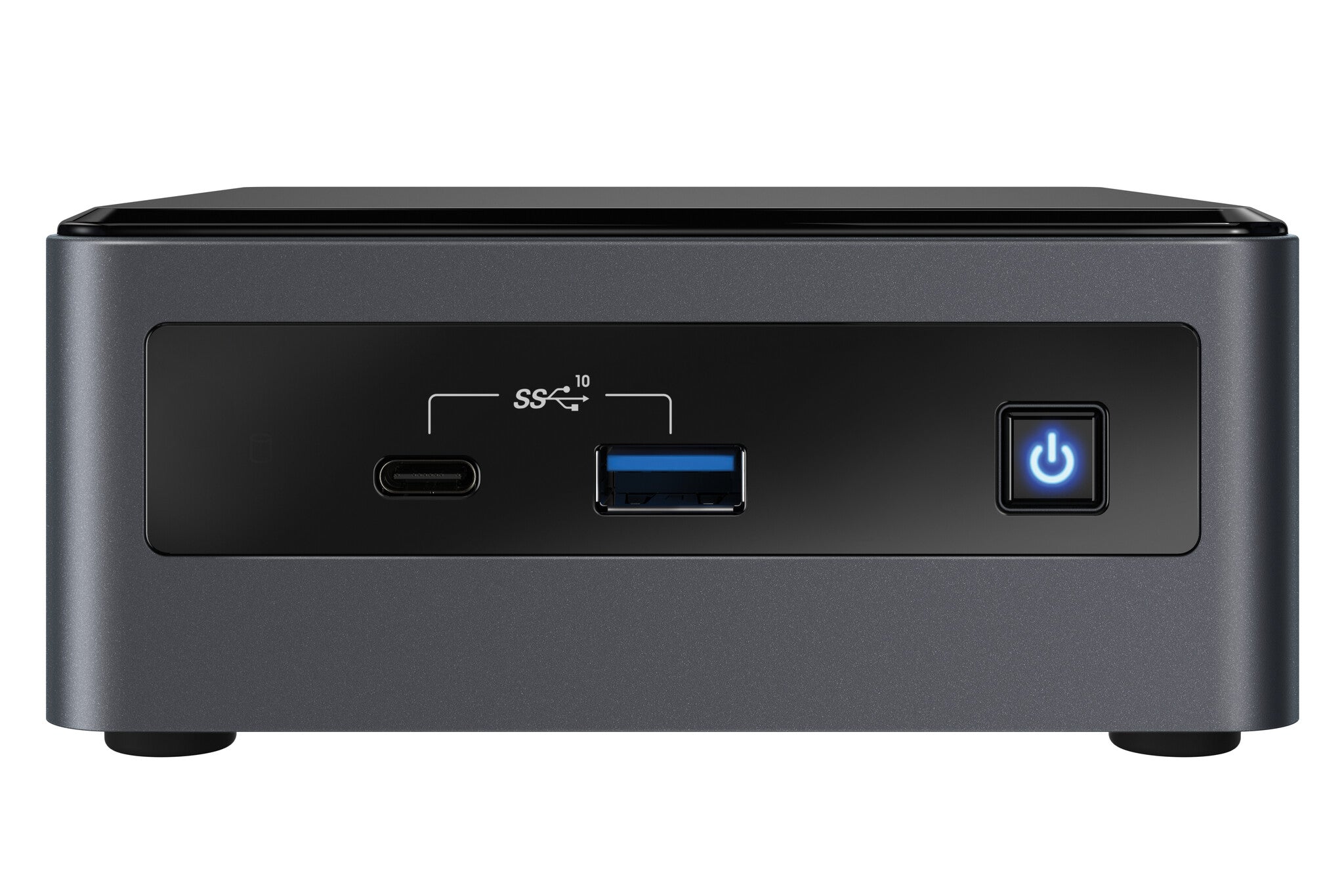

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| M.2 card slot (storage) | 2242/2280 |
| USB ports quantity | 7 |
| Number of SATA III connectors | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| ARK ID | 214604 |
| Status | Launched |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1528 |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Intel Clear Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Processor included | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Other features | |
|---|---|
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| HDD size | 2.5" |
| Processor ARK ID | 196451 |
| Number of SATA connectors | 2 |
| DC input voltage | 19 V |
| Launch date | Q2'21 |
