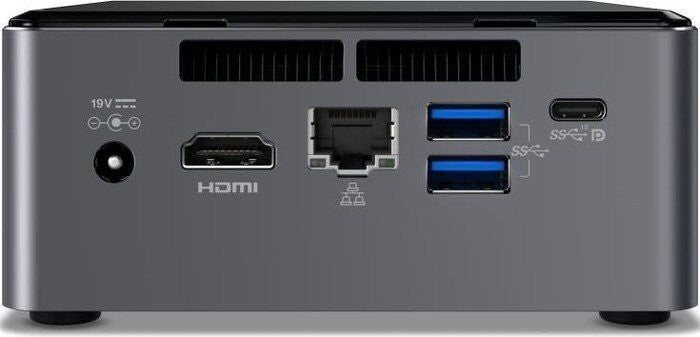

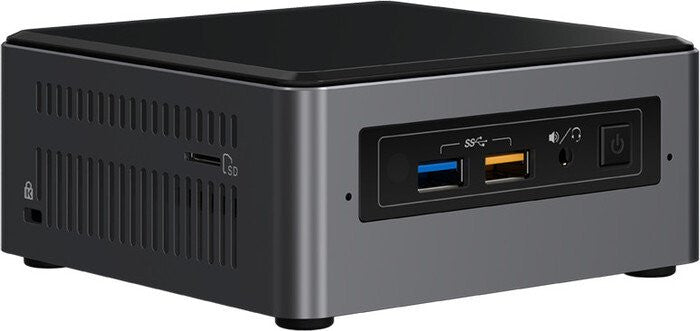

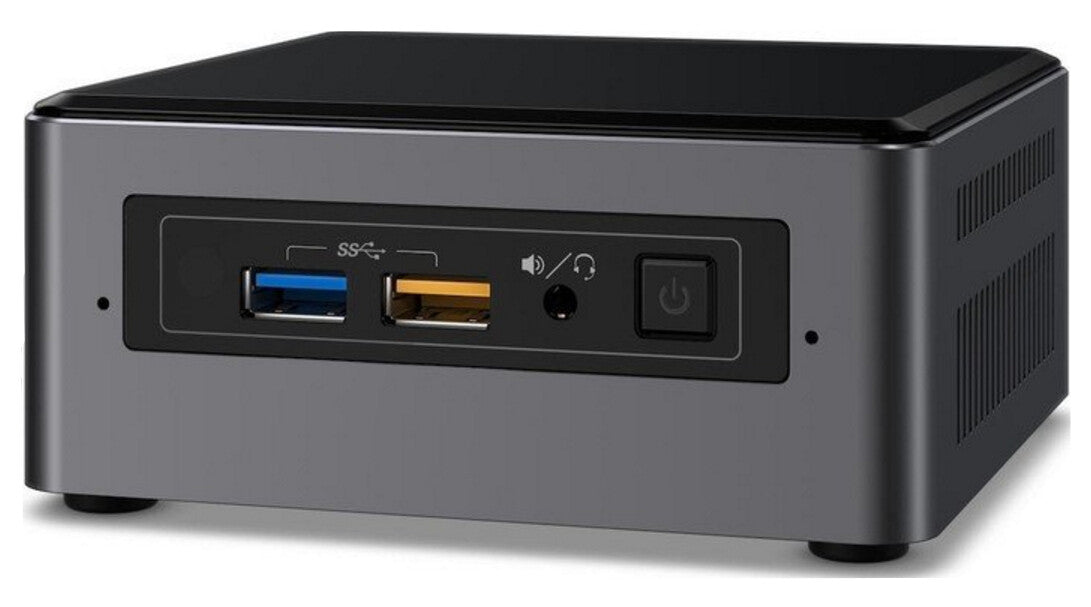

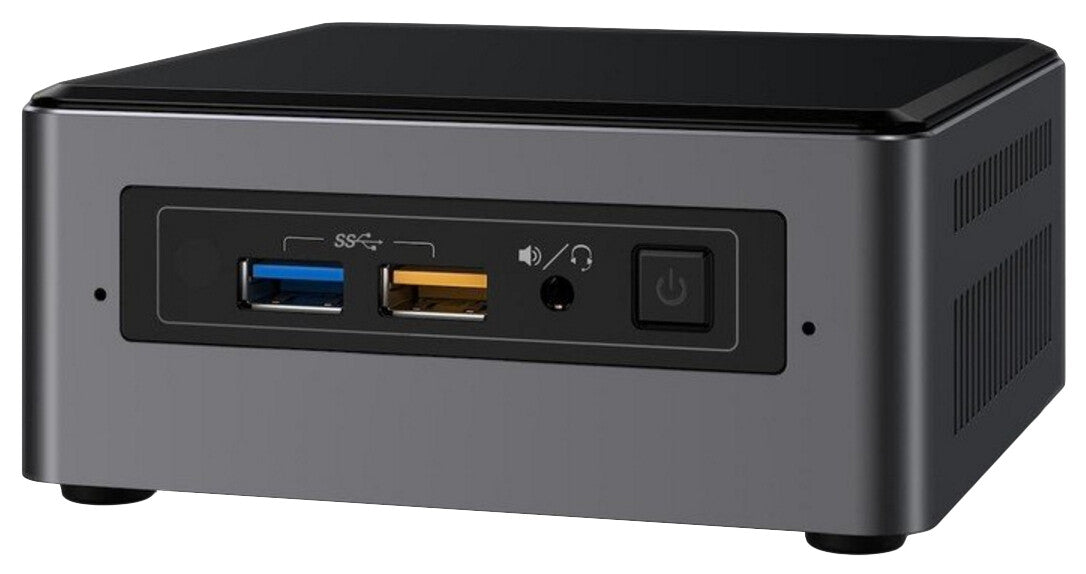

Intel BOXNUC7I5BNH PC/workstation barebone Black i5-7260U 2.2 GHz
£370.99
Couldn't load pickup availability
- Black
- Built-in processor Intel i5-7260U 2.2 GHz
- 2 SO-DIMM Maximum internal memory: 32 GB DDR4-SDRAM
- HDD & SSD M.2,2.5
- On-board graphics card Intel® Iris™ Plus Graphics 640
- Ethernet LAN Wi-Fi
Get ready for truly responsive performance. The Intel® NUC Kit NUC7i5BNH is built with a dual-core 7th Generation Intel® Core™ i5 processor. So you’ve got the performance to turn the Intel® NUC into a powerhouse of productivity and play, streaming your favorite movies and music, or running analytics. With dual-array front microphones, you can take full advantage of Windows® 10 and Cortana. Intel® Iris™ Plus graphics transform the viewing experience with 4K Ultra HD video and premium content playback, enabling new ways to enjoy the latest Hollywood blockbusters. And the multi-color LED ring lets you personalize your NUC with the look you want—making it at home in the living room, den, office, or any place you can imagine. Room for up to 32 GB of DDR4 RAM lets you increase performance easily. Also features a 2.5" drive bay for an SSD or HDD with up to 2 TB of storage space.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor model | i5-7260U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.2 GHz |
| Processor lithography | 14 nm |
| Processor cache | 4 MB |
| L3 cache | 4 MB |
| Thermal Design Power (TDP) | 15 W |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Processor series | Intel Core i5-700 Desktop Series |
| Processor codename | Kaby Lake |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Removable memory card slot | microSDXC with UHS-I support |
| Memory bandwidth (max) | 34.1 GB/s |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Iris™ Plus Graphics 640 |
| Number of displays supported | 3 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| LAN controller | Intel® I219-V |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Mini DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| M.2 card slot (storage) | 2242/2280 |
| USB ports quantity | 6 |
| Number of SATA III connectors | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Consumer infrared headers | Yes |
| Serial port via internal header | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Graphics output | HDMI 2.0a; USB-C (DP1.2) |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Design | |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Power |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| ARK ID | 95067 |
| Status | Discontinued |
| Product series | Intel® NUC Kit with 7th Generation Intel® Core™ Processors |
| Product codename | Baby Canyon |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| BIOS type | EEPROM |
| BIOS memory size | 64 Mbit |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Conflict-Free | Yes |
| Intel Express BIOS update | Yes |
| Intel Visual BIOS | Yes |
| Intel® Smart Cache | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Smart Response Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel Rapid Storage Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Compatible operating systems | Windows 10, 64-bit* |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Processor included | Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz) |
| Other features | |
|---|---|
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL |
| HDD size | 2.5" |
| Processor ARK ID | 97539 |
| Number of SATA connectors | 2 |
| DC input voltage | 12 - 19 V |
| Launch date | Q1'17 |
