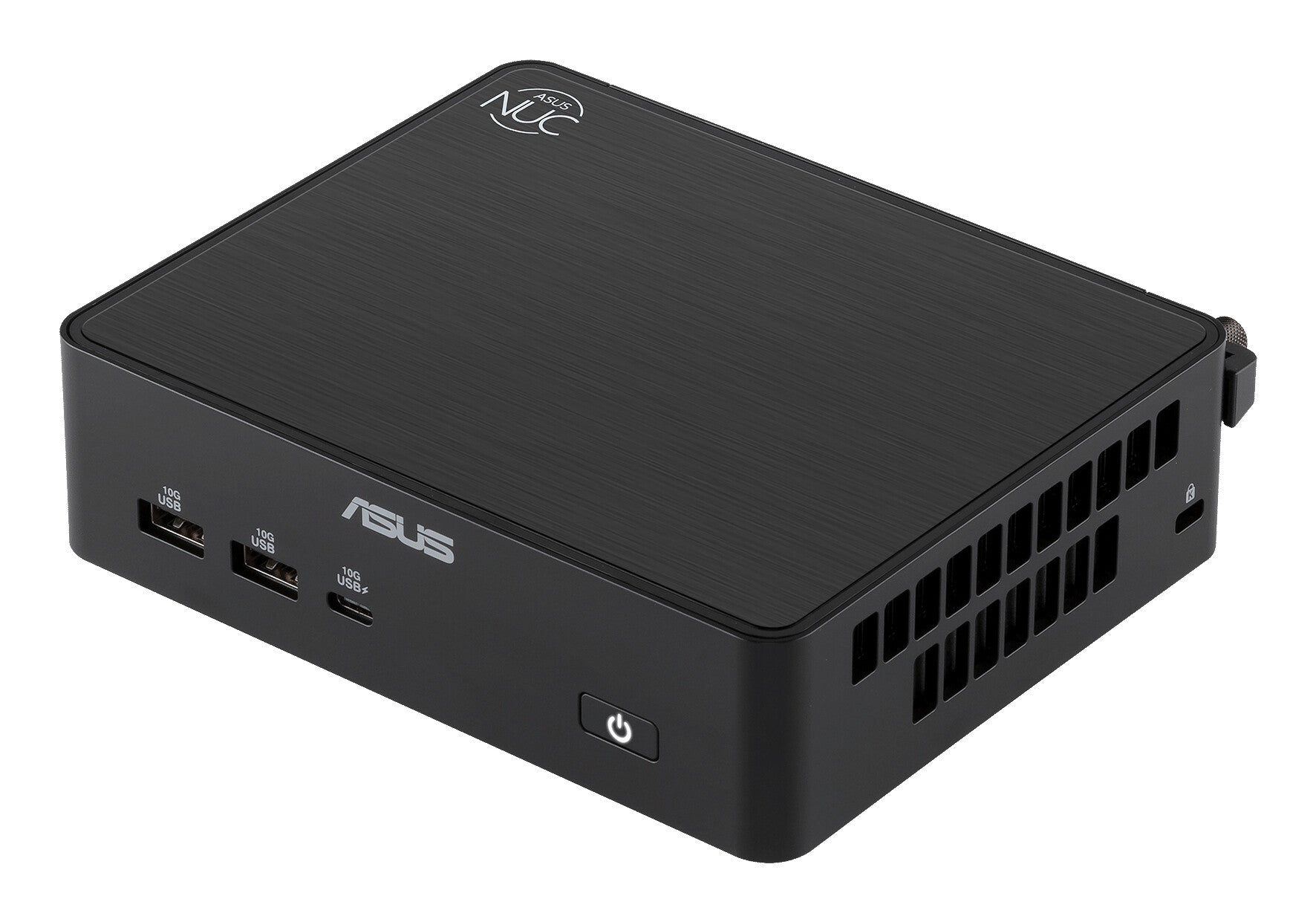

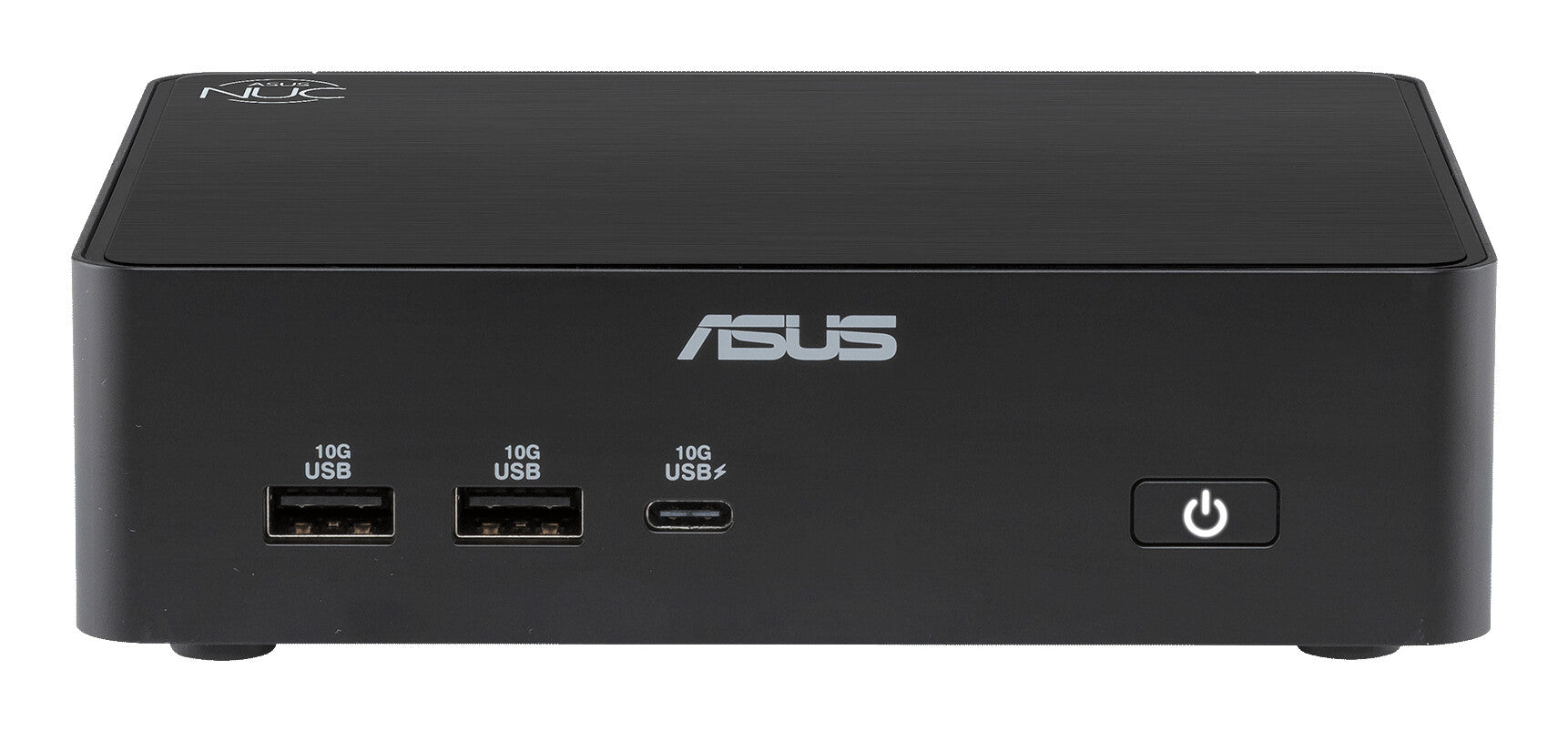

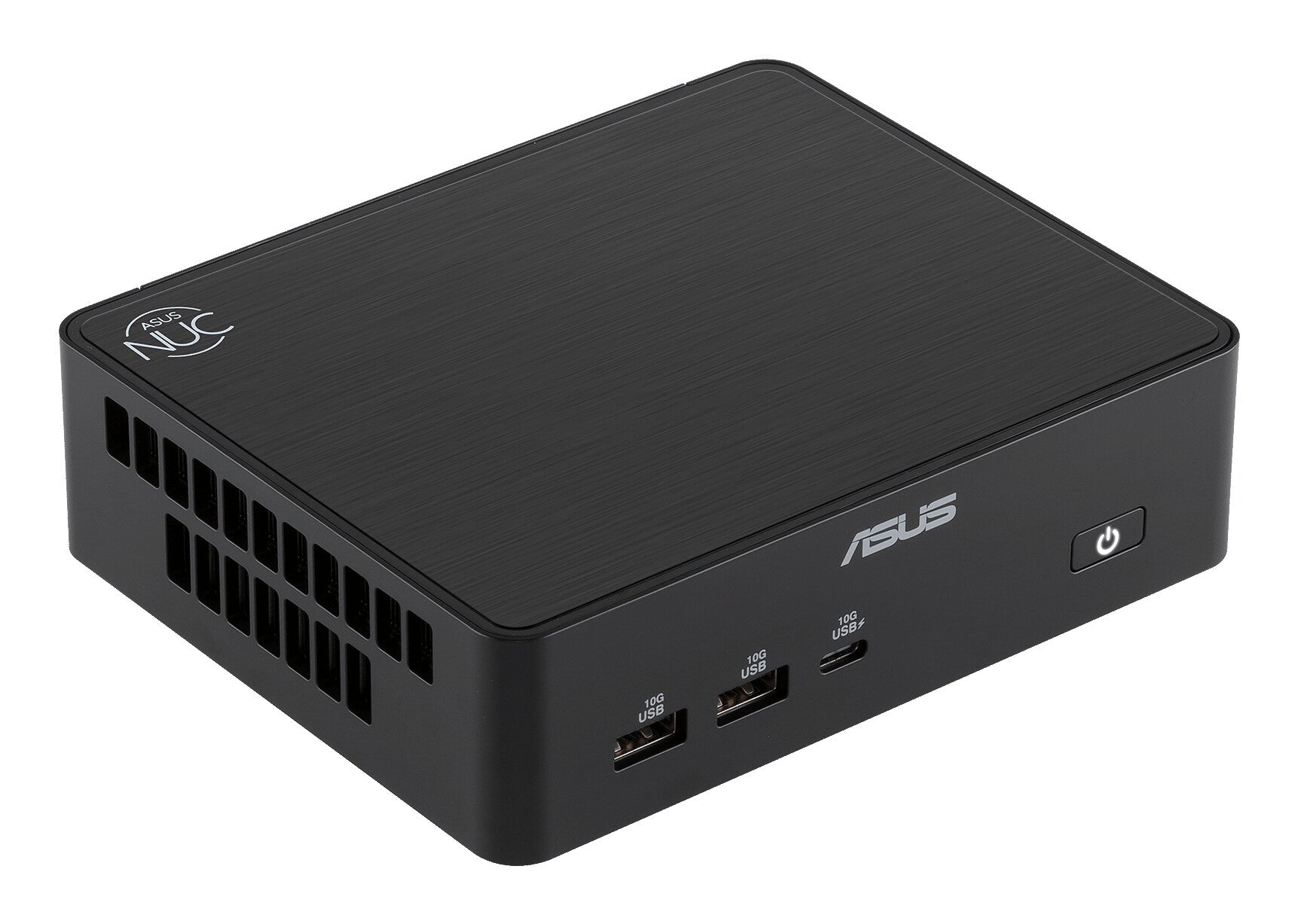

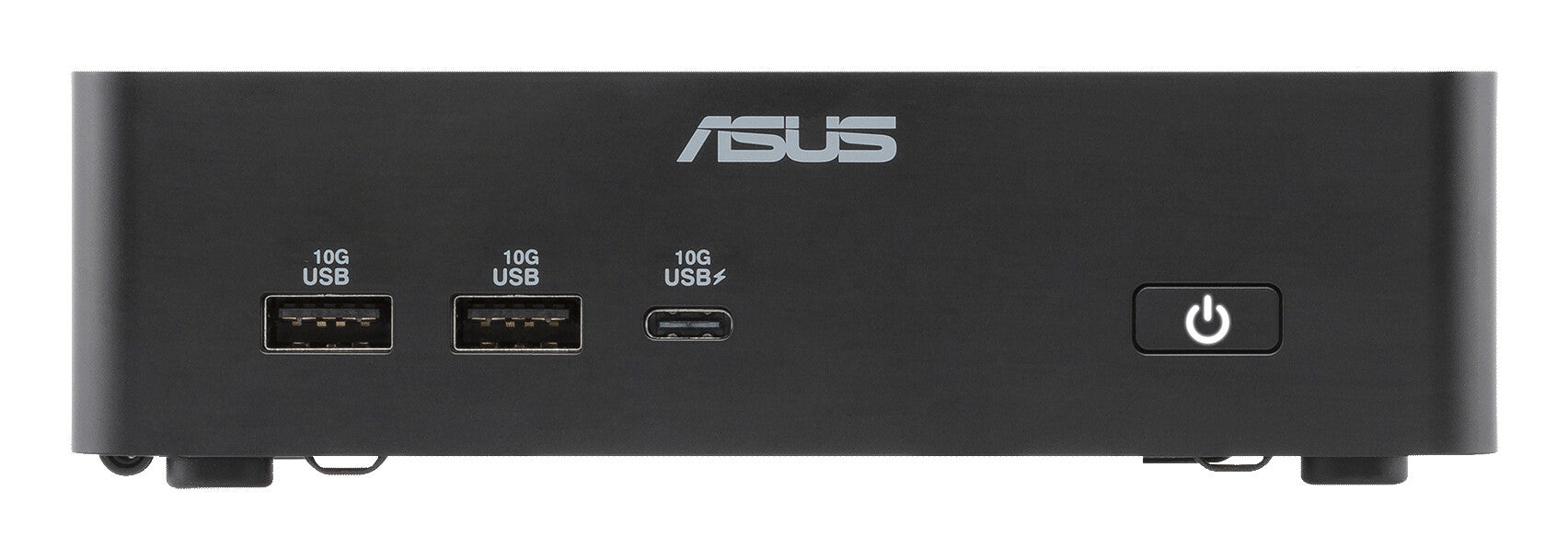

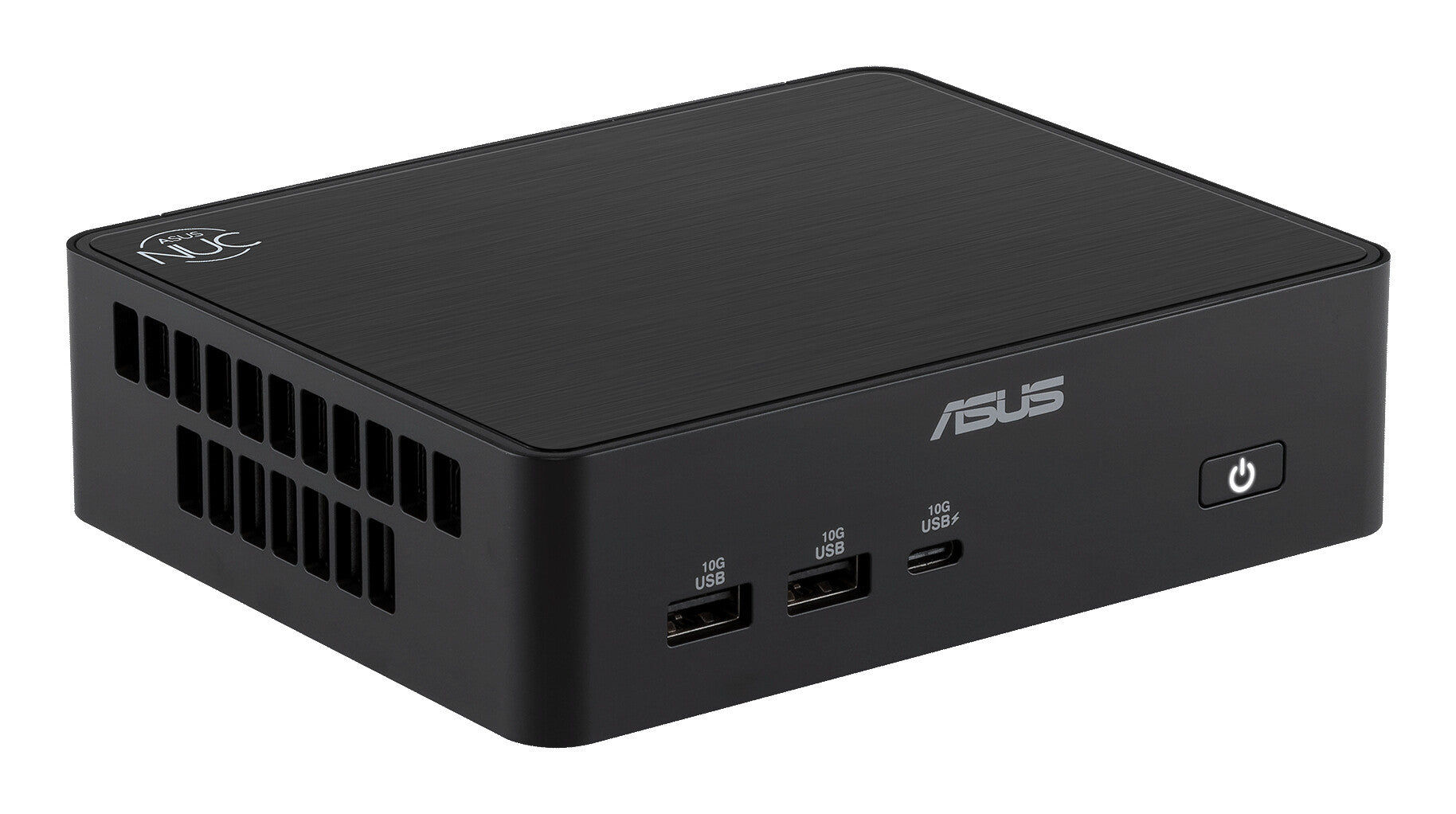

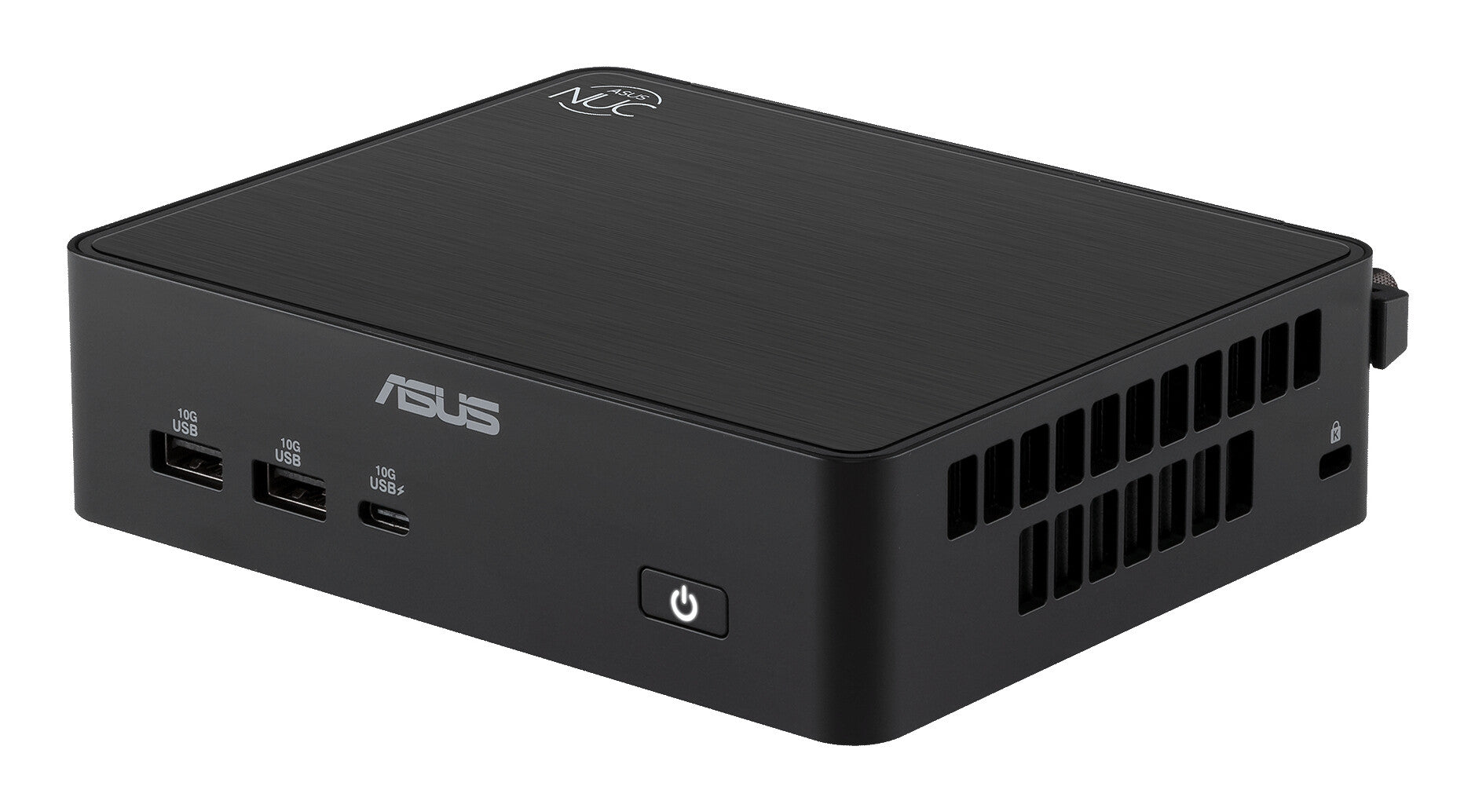

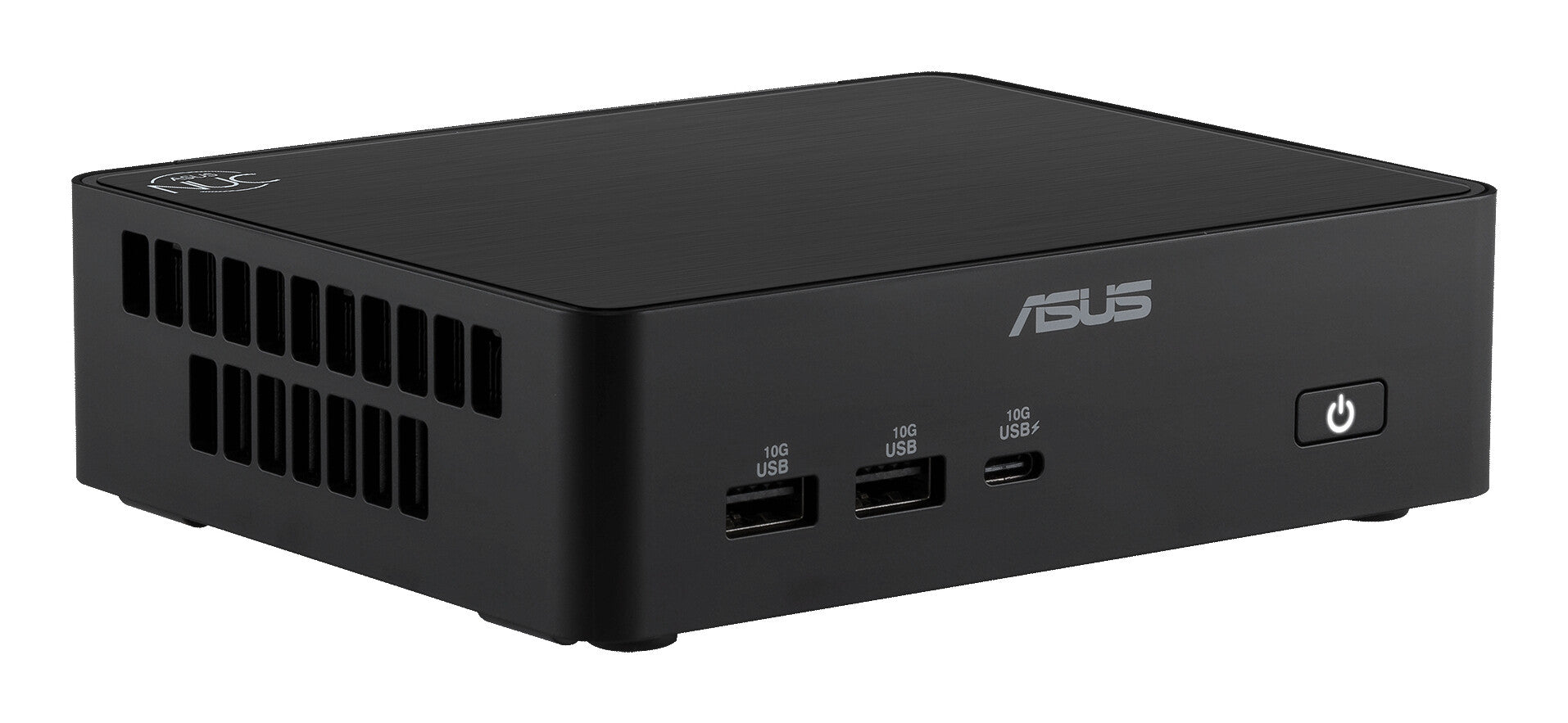

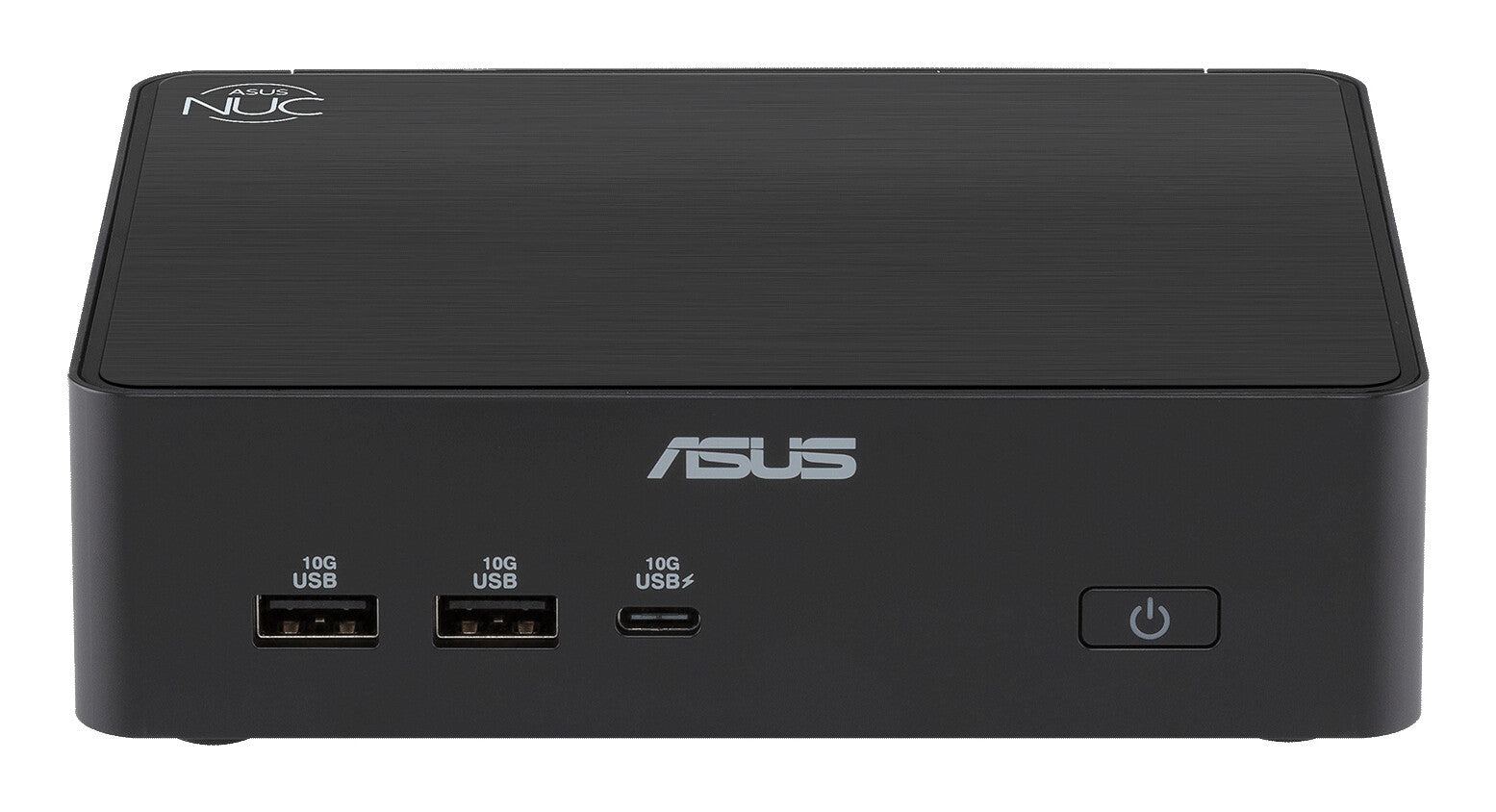

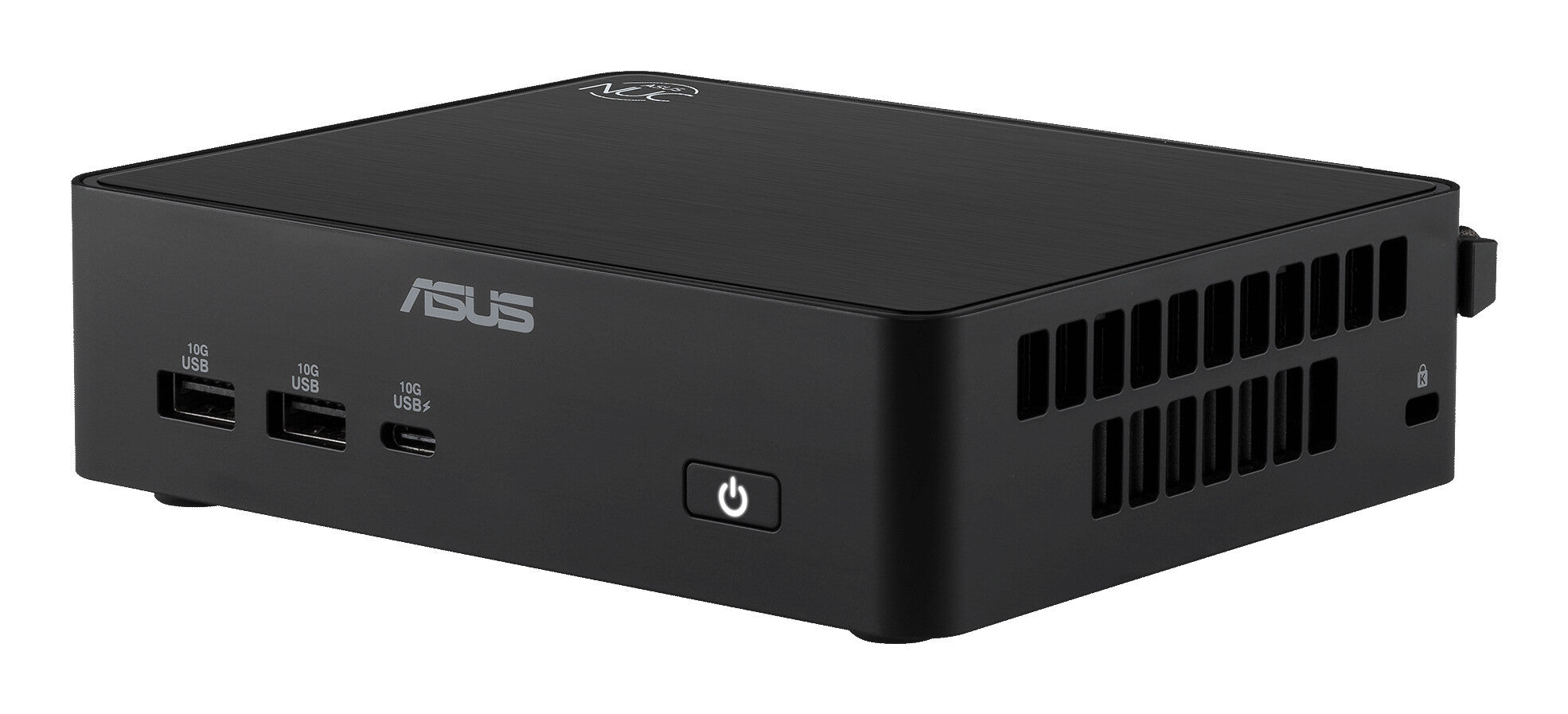

ASUS NUC 16 Pro RNUC16GDKU560002 Black 325
£521.99
Couldn't load pickup availability
- Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
- Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
- Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
- Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease
- Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
- Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment
Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
| Processor | |
|---|---|
| Processor cache | 12 MB |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Efficient-core base frequency | 1.6 GHz |
| Performance-core base frequency | 2.1 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-cores | 4 |
| Performance cores | 4 |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 8 |
| Processor cores | 8 |
| Processor model | 325 |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Internal memory installed | No |
| Storage | |
|---|---|
| Maximum storage capacity | 8 TB |
| Number of storage drives supported | 2 |
| Storage drive interface | PCI Express |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Storage drives installed | No |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |

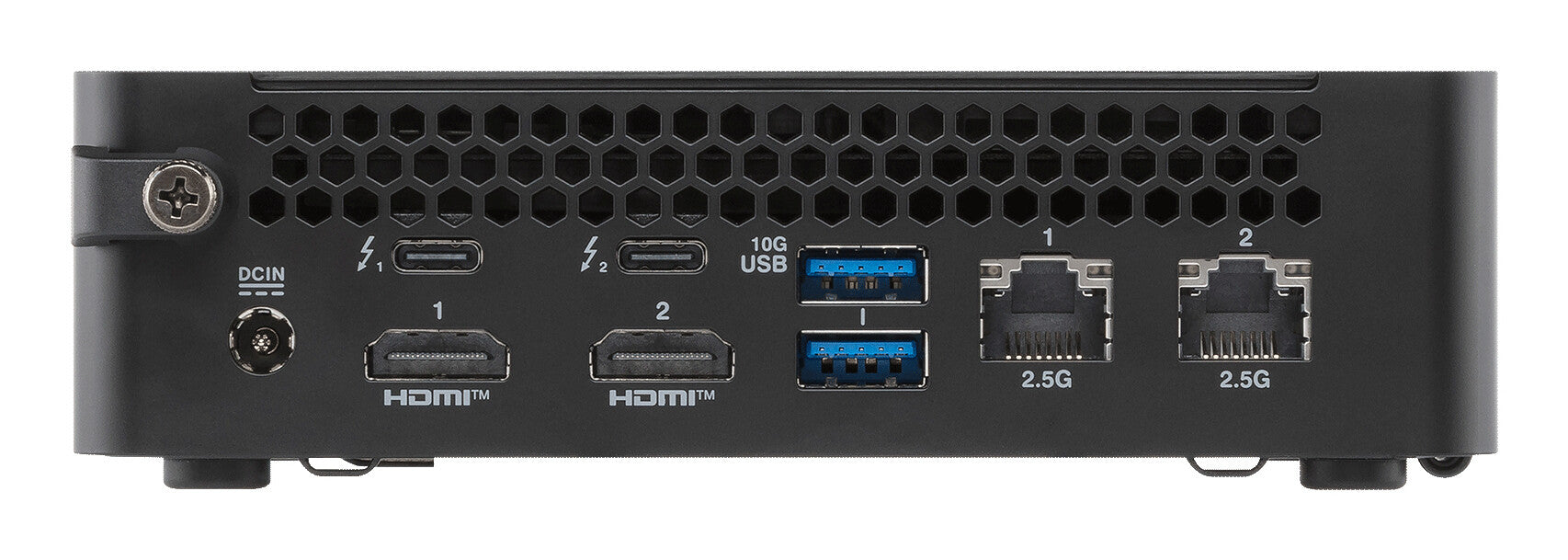

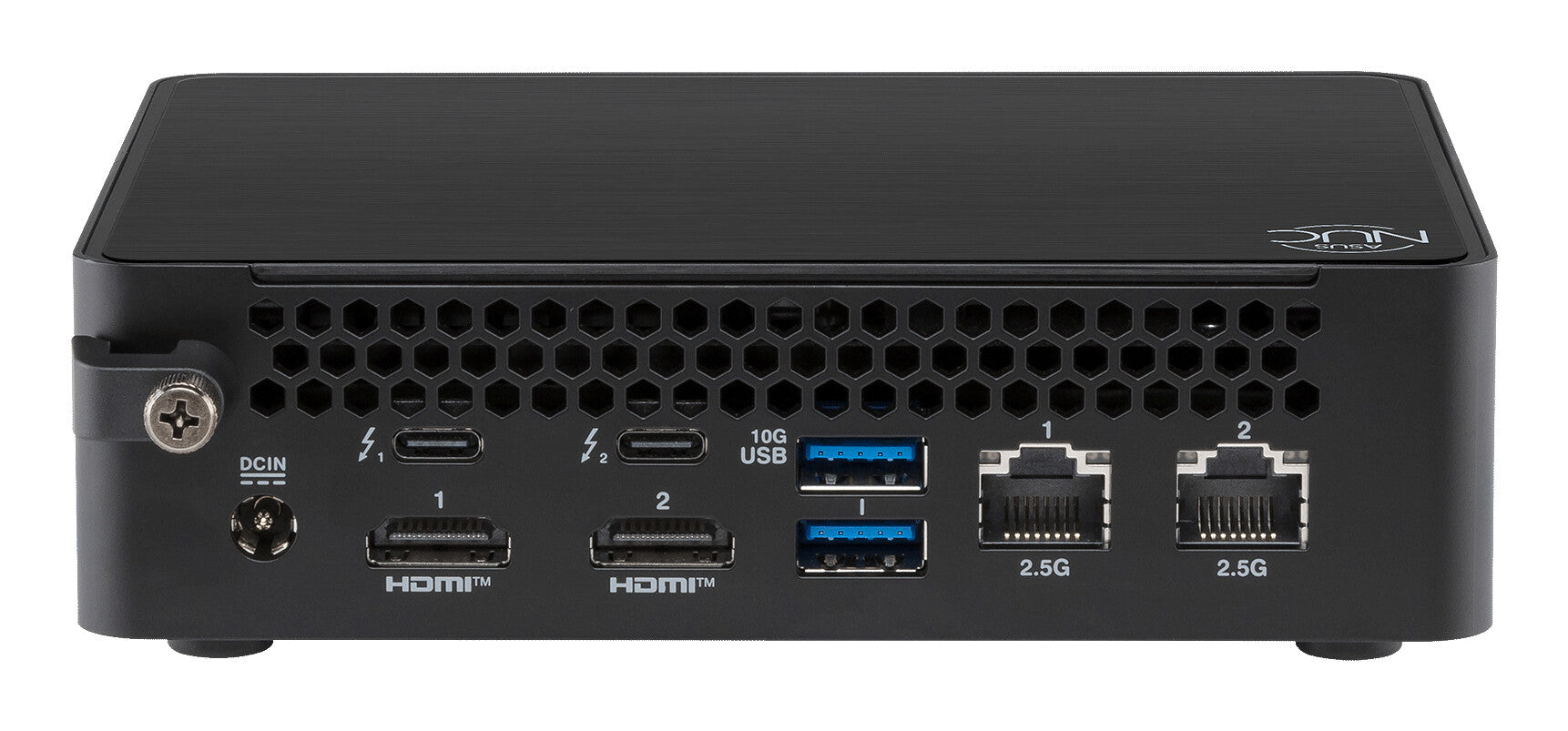

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Product type | Mini PC barebone |

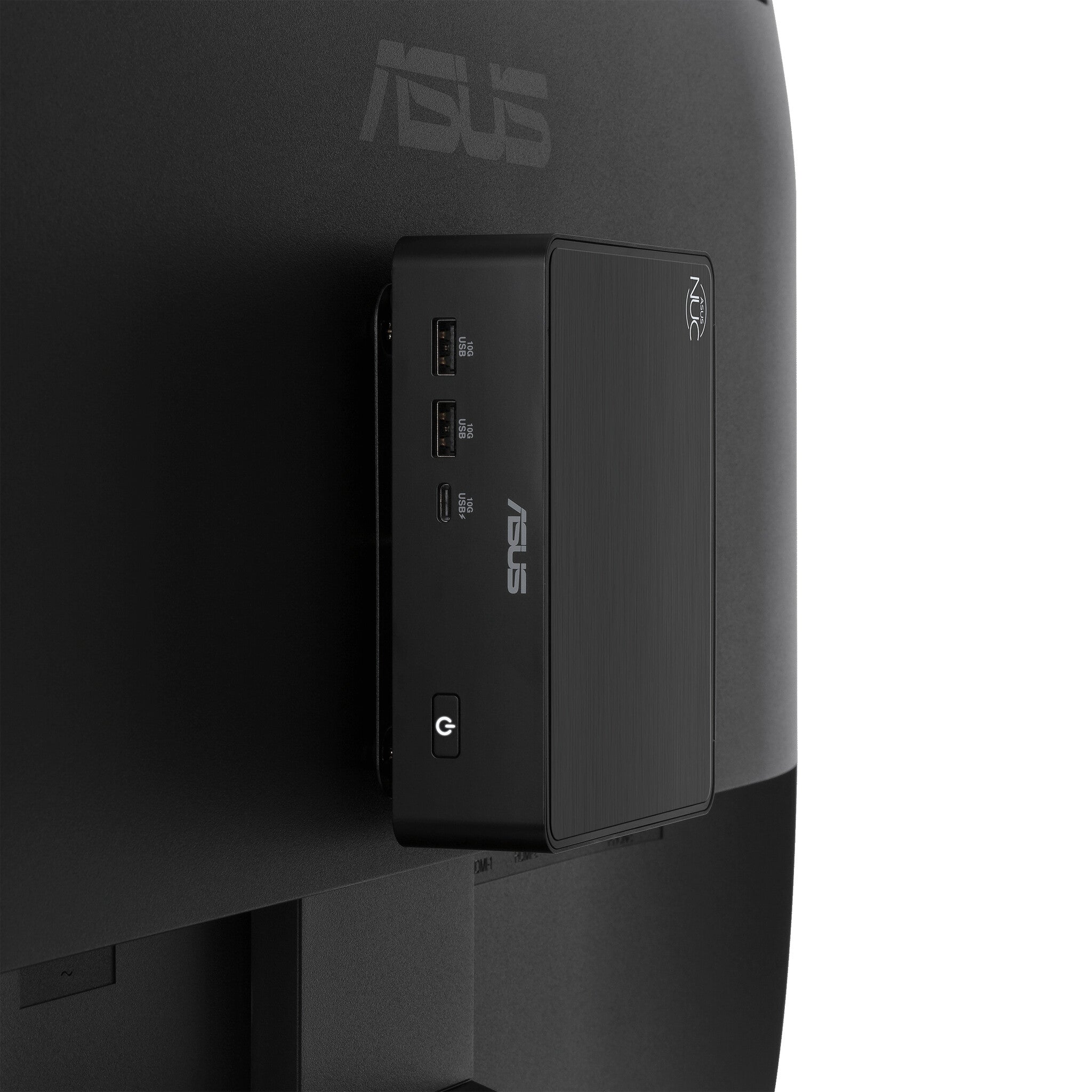

| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| General | |
|---|---|
| Product family | NUC 16 Pro |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 92% |
| Weight & dimensions | |
|---|---|
| Height | 42 mm |
| Depth | 117 mm |
| Width | 144 mm |
