Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H

Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H

Kingston Technology
£896.99
Stock Available: 0
  • Server 32 GB DDR5 5600 MT/s
  • 288-pin DIMM 1 x 32 GB
  • CAS latency: 46
  • 1.1 V
  • ECC

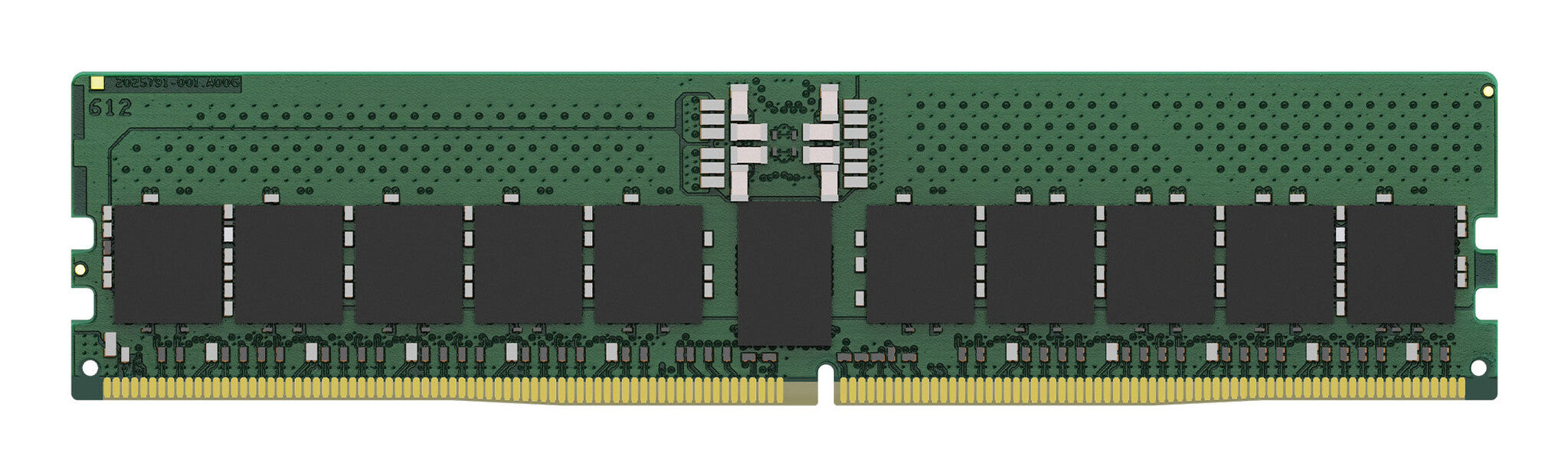

Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Buffered memory type Registered (buffered)
Internal memory 32 GB
Memory layout (modules x size) 1 x 32 GB
Internal memory type DDR5
Component for Server
Memory form factor 288-pin DIMM
ECC Yes
On-Die ECC Yes
CAS latency 46
Memory data transfer rate 5600 MT/s
Memory ranking 2
Memory voltage 1.1 V
Module configuration 4096M x 80
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
Row Precharge Time (TRP) 16
SPD profile Yes
JEDEC standard Yes
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
