£2,795.99

Stock Available: 0

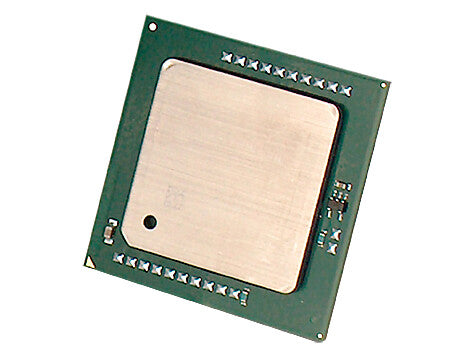

  • Intel® Xeon® E5 V2 Family E5-2690V2 3 GHz
  • 25 MB L3 LGA 2011 (Socket R)
  • Processor cores: 10 22 nm 64-bit 130 W
  • Maximum internal memory supported by processor: 768 GB DDR3-SDRAM

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® vPro™ Technology
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Processor
Memory bandwidth supported by processor (max) 59.7 GB/s
Number of QPI links 2
Bus type QPI
VID Voltage Range 0.6 - 1.30 V
Thermal Design Power (TDP) 130 W
Processor cache type L3
Processor cache 25 MB
Processor boost frequency 3.6 GHz
Processor operating modes 64-bit
System bus rate 8 GT/s
Processor threads 20
Component for Server/workstation
Processor lithography 22 nm
Processor socket LGA 2011 (Socket R)
Processor cores 10
Processor base frequency 3 GHz
Processor model E5-2690V2
Processor family Intel® Xeon® E5 V2 Family
Memory
ECC Yes
Memory channels Quad-channel
Memory clock speeds supported by processor 800,1066,1333,1600,1866 MHz
Memory types supported by processor DDR3-SDRAM
Maximum internal memory supported by processor 768 GB
Graphics
On-board graphics card No
Features
Scalability 2S
Embedded options available No
Physical Address Extension (PAE) Yes
PCI Express slots version 3.0
Maximum number of PCI Express lanes 40
Market segment Server
Execute Disable Bit Yes
Idle States Yes
Thermal Monitoring Technologies Yes
Processor special features
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Demand Based Switching Yes
Intel® Secure Key Yes
Intel® vPro™ Platform Eligibility Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® Turbo Boost Technology Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel Trusted Execution Technology Yes
Intel® Identity Protection Technology (Intel® IPT) No
Intel Flex Memory Access No
Enhanced Intel SpeedStep Technology Yes
Operational conditions
Tcase 88 °C
Other features
Intel® Virtualization Technology (Intel® VT) VT-d, VT-x
