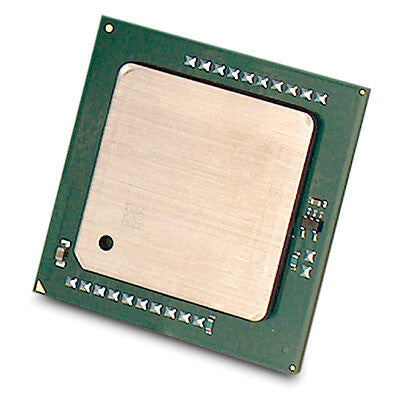

HPE Intel Xeon Gold 6254 processor 3.1 GHz 25 MB L3
£7,039.99
Couldn't load pickup availability
- Intel® Xeon® Gold 6254 3.1 GHz
- 25 MB L3 LGA 3647 (Socket P)
- Processor cores: 18 14 nm 64-bit 200 W
- Maximum internal memory supported by processor: 1 TB DDR4-SDRAM
HPE SERVER OPTIONS
Optimise your HPE Servers with HPE options and upgrades.
SOLUTIONS TO MAXIMISE SERVER PERFORMANCE
Configure HPE Servers with high-performing, reliable and secure HPE Server Options that efficiently accelerate the range of applications and data in your hybrid infrastructure.
SERVER COMPONENTS PORTFOLIO
A broad portfolio of tested and qualified components that support a wide range of IT environments from small to midsized businesses up to enterprise.
| Processor | |
|---|---|
| Processor codename | Cascade Lake |
| Bus type | UPI |
| Stepping | B1 |
| Thermal Design Power (TDP) | 200 W |
| Processor cache type | L3 |
| Processor cache | 25 MB |
| Processor boost frequency | 4 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 36 |
| Processor series | Intel Xeon Gold 6000 Series |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 18 |
| Processor base frequency | 3.1 GHz |
| Processor model | 6254 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Scalability | 4S |
| Embedded options available | No |
| Supported instruction sets | AVX-512 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel TSX-NI | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Run Sure Technology | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 82 °C |
| Technical details | |
|---|---|
| Number of UPI links | 3 |
| Other features | |
|---|---|
| Compatibility | DL360 Gen10 |
