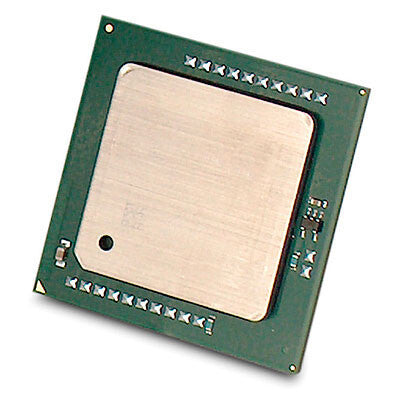

HPE Intel Xeon E5-4655 v4 processor 2.5 GHz 30 MB L3
£6,929.99
Couldn't load pickup availability
- Intel® Xeon® E5 v4 E5-4655V4 2.5 GHz
- 30 MB L3 LGA 2011-v3
- Processor cores: 8 14 nm 64-bit 135 W
- Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Number of QPI links | 2 |
| Bus type | QPI |
| Stepping | M0 |
| Thermal Design Power (TDP) | 135 W |
| Processor cache type | L3 |
| Processor cache | 30 MB |
| Processor boost frequency | 3.2 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 9.6 GT/s |
| Processor threads | 16 |
| Processor series | Intel® Xeon® E5-4600 v4 Family |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor socket | LGA 2011-v3 |
| Processor cores | 8 |
| Processor base frequency | 2.5 GHz |
| Processor model | E5-4655V4 |
| Processor family | Intel® Xeon® E5 v4 |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.54 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Scalability | 4S |
| Embedded options available | No |
| CPU configuration (max) | 4 |
| Physical Address Extension (PAE) | Yes |
| Supported instruction sets | AVX 2.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Conflict-Free processor | Yes |
| Intel Instruction Replay Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 82 °C |
| Other features | |
|---|---|
| Compatibility | DL560 GEN 9 |
