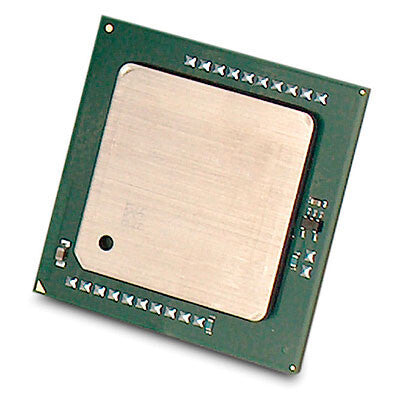

HPE DL380e Gen8 Intel Xeon E5-2430 (2.20GHz/6-core/15MB/95W) processor 2.2 GHz L3
Couldn't load pickup availability
- Intel® Xeon® E5 Family E5-2430 2.2 GHz
- 15 MB L3 LGA 1356 (Socket B2)
- Processor cores: 6 32 nm 64-bit 95 W
- Maximum internal memory supported by processor: 375 GB DDR3-SDRAM
Completing the Intel® Xeon® processor E5 family is the entry dual socket server processor, the Intel® Xeon® processor E5-2400 product family, which supports core features of the Intel Xeon processor E5 family such as Intel® Integrated I/O, Intel® Turbo Boost Technology 2.0, and Intel® Trusted Execution Technology. These processors offer growing small and medium businesses an easy path to the higher performance and reliability of an Intel Xeon processor E5 family-based platform. The Intel Xeon processor E5-2400 product family delivers up to 3x better performance then the Intel® Xeon® processor E3-1200v2 product family and enables higher system densities and lower total cost of ownership compared to a single socket server solution.
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Number of QPI links | 1 |
| Bus type | QPI |
| VID Voltage Range | 0.6 - 1.35 V |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | L3 |
| Processor cache | 15 MB |
| Processor boost frequency | 2.7 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 7.2 GT/s |
| Processor threads | 12 |
| Component for | Server/workstation |
| Processor lithography | 32 nm |
| Processor socket | LGA 1356 (Socket B2) |
| Processor cores | 6 |
| Processor base frequency | 2.2 GHz |
| Processor model | E5-2430 |
| Processor family | Intel® Xeon® E5 Family |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 375 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Embedded options available | No |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 24 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Other features | |
|---|---|
| Compatibility | HP DL380e Gen8 |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
