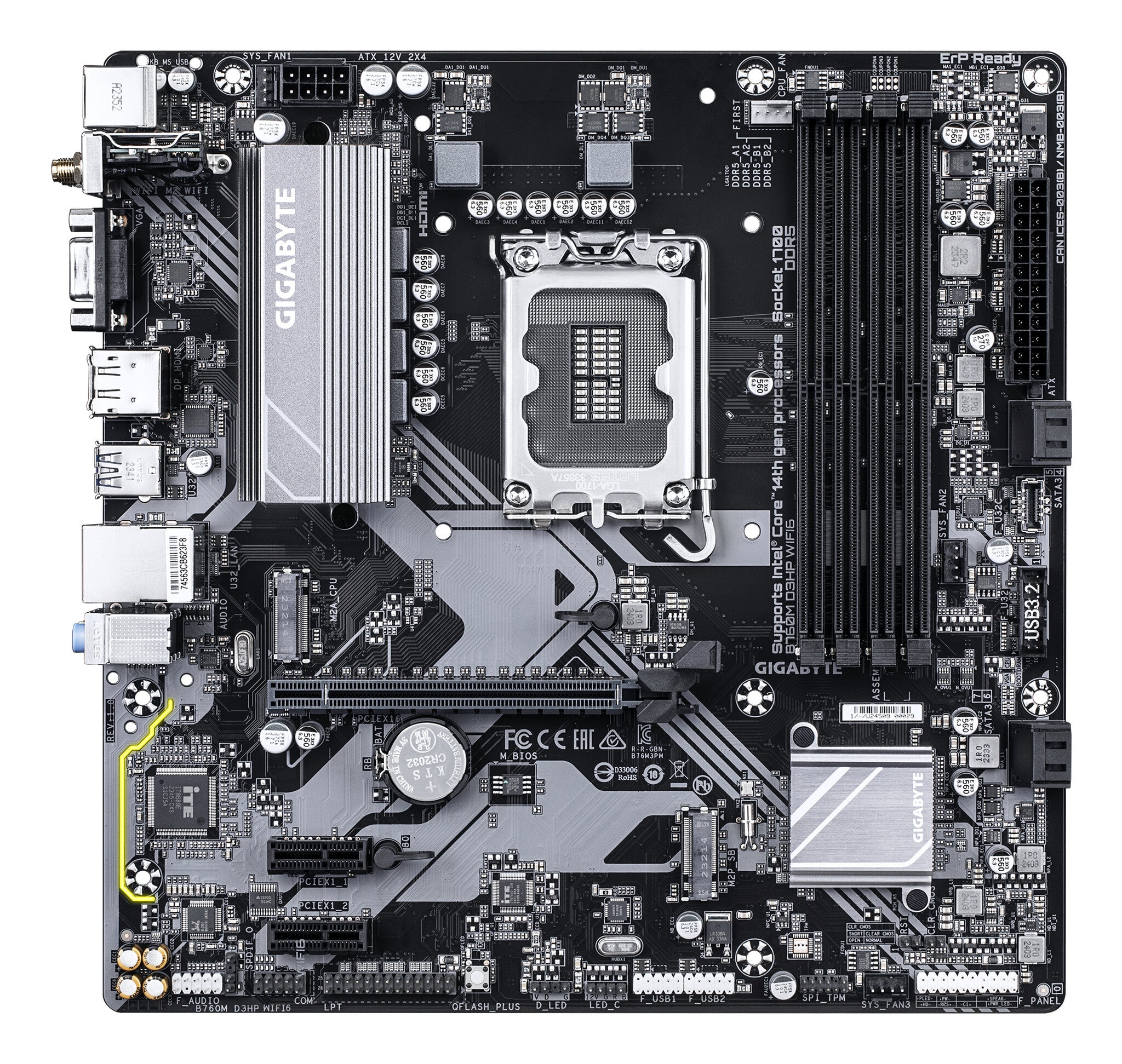

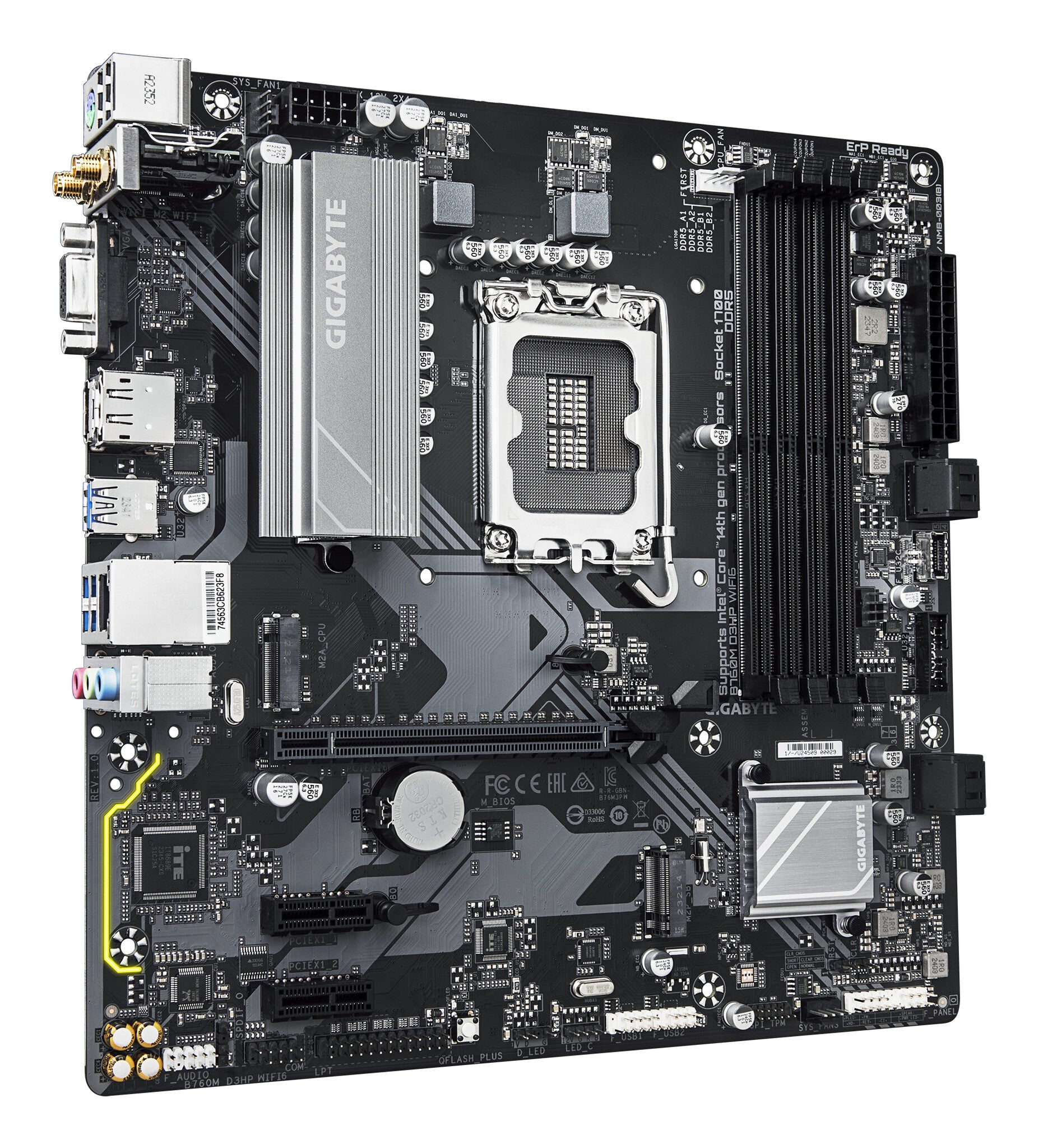

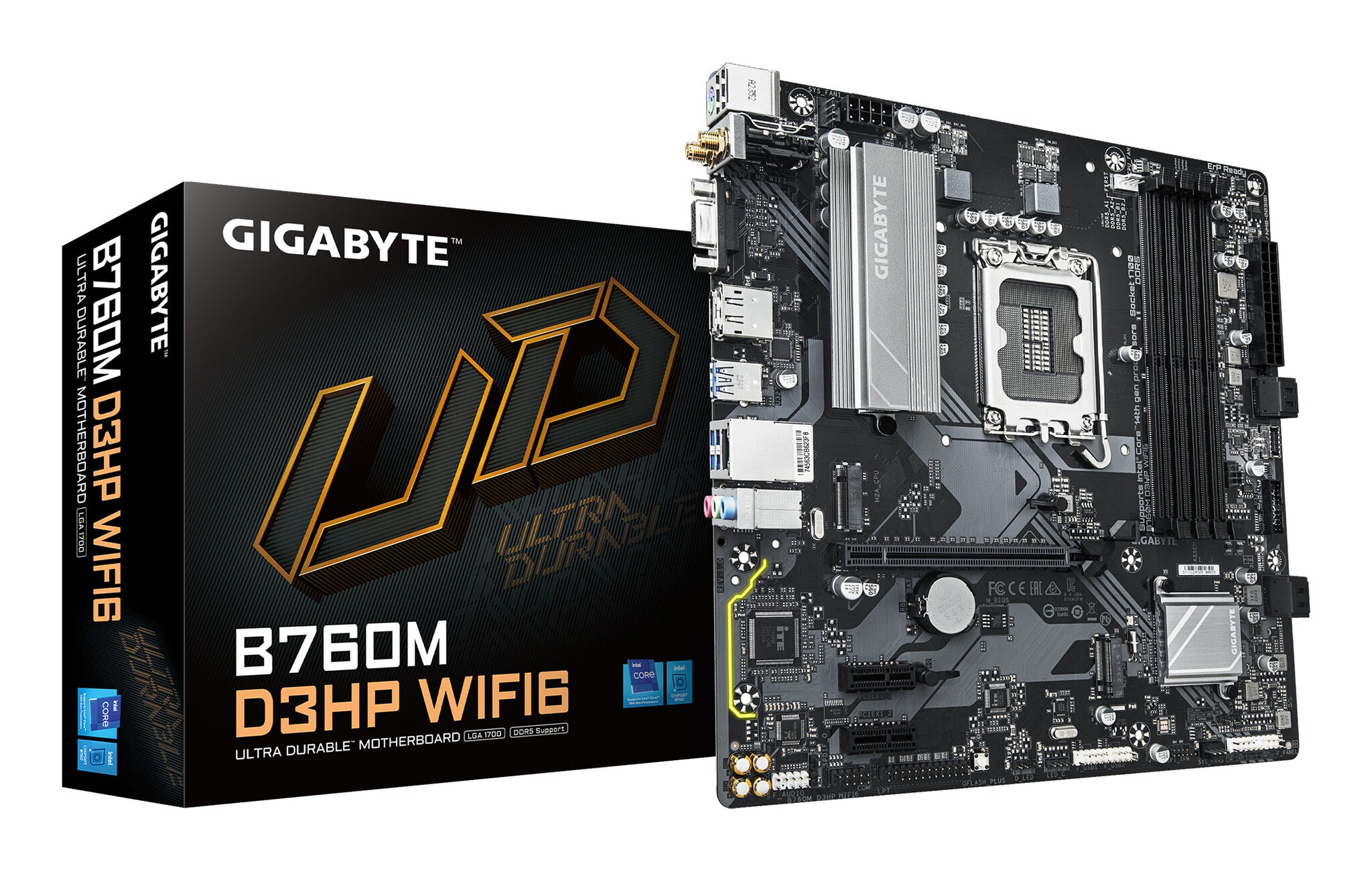

GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1
iFrame
£117.99
Couldn't load pickup availability
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks: GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory per slot | 48 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 2 |
| RGB LED pin header | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

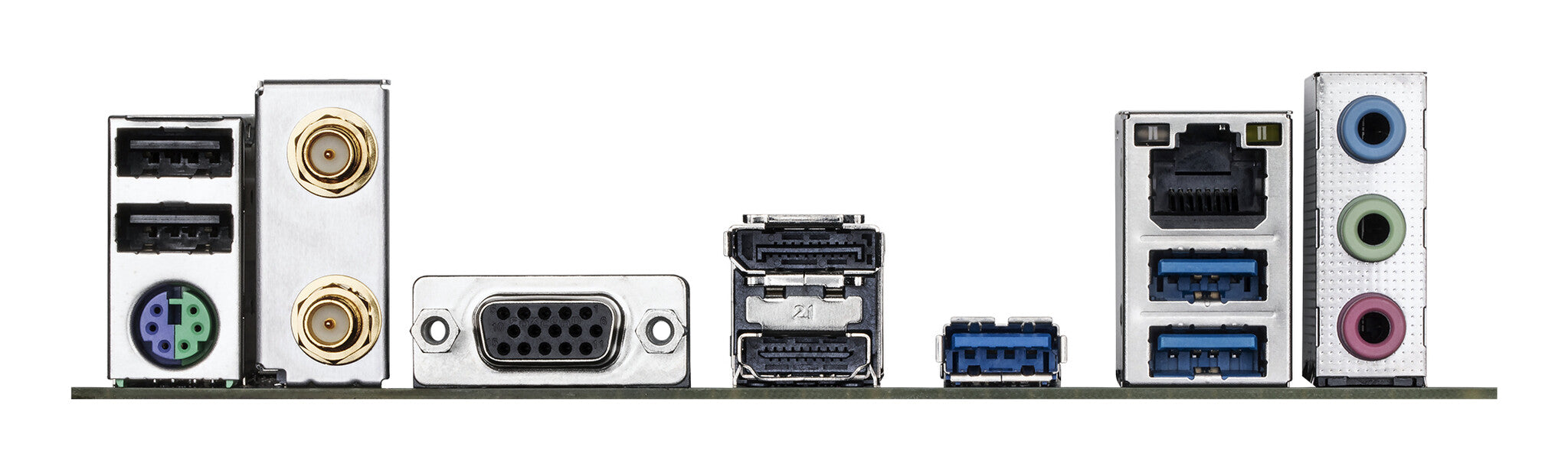

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Realtek RTL8851BE |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Passive |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Dark brown |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Packaging data | |
|---|---|
| Package weight | 1.2 kg |
| Package height | 54 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Antenna included | Yes |
| Screws included | Yes |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.11 kg |
