£25.99

Stock Available: 0
  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency

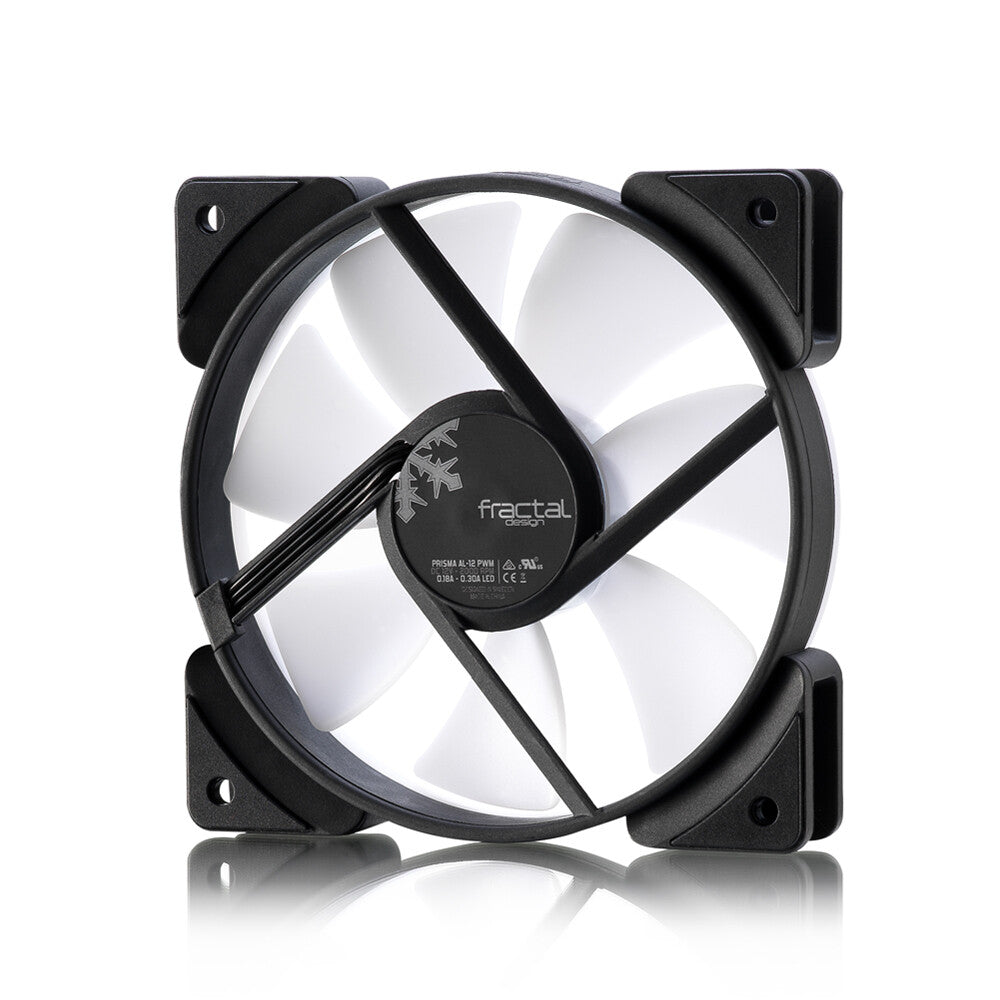

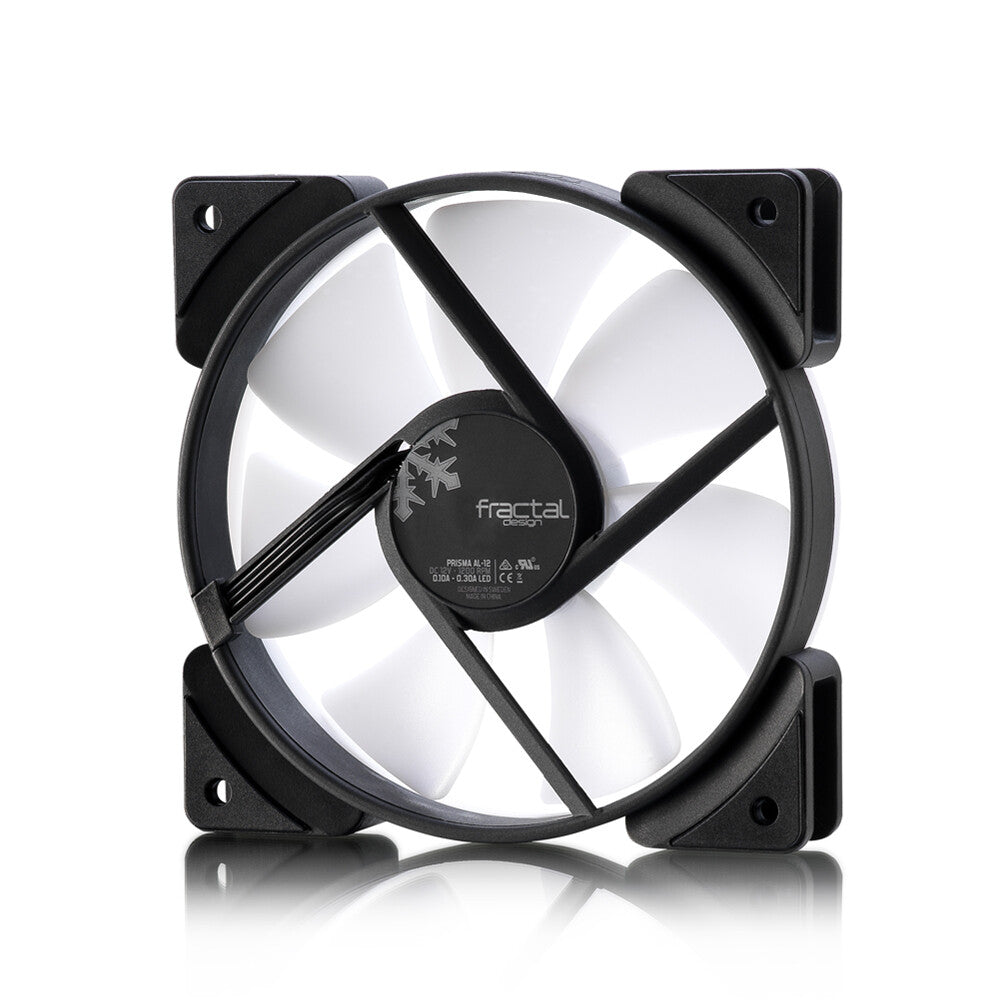

  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Chainable RGB cables simplify wiring and make the most of available connections
  • PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
  • 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets

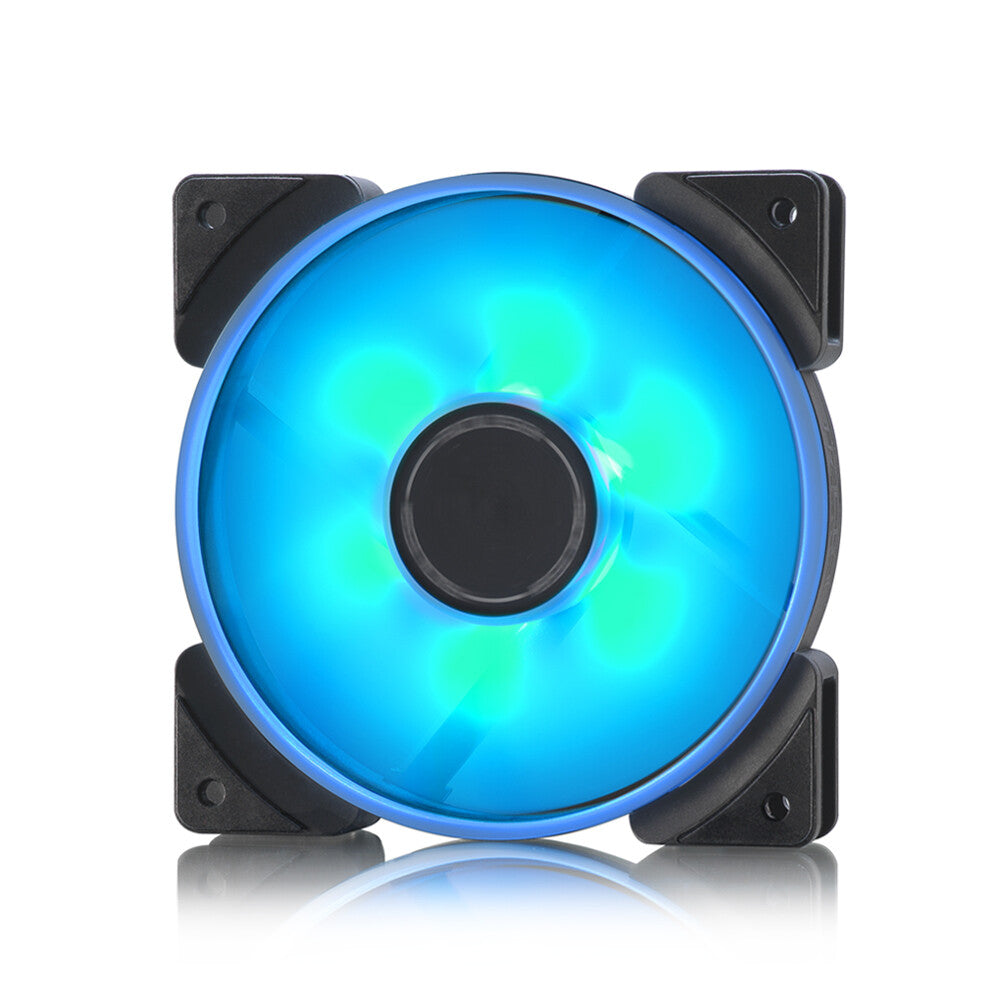

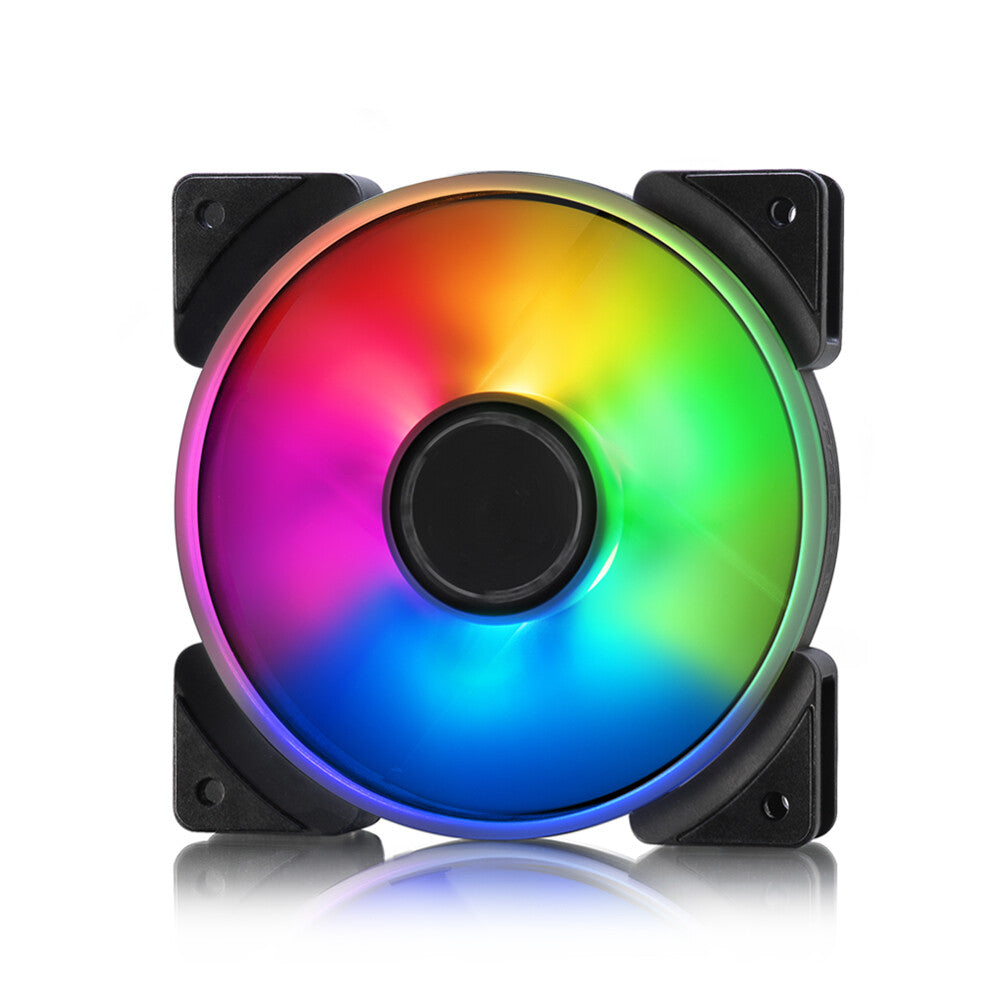

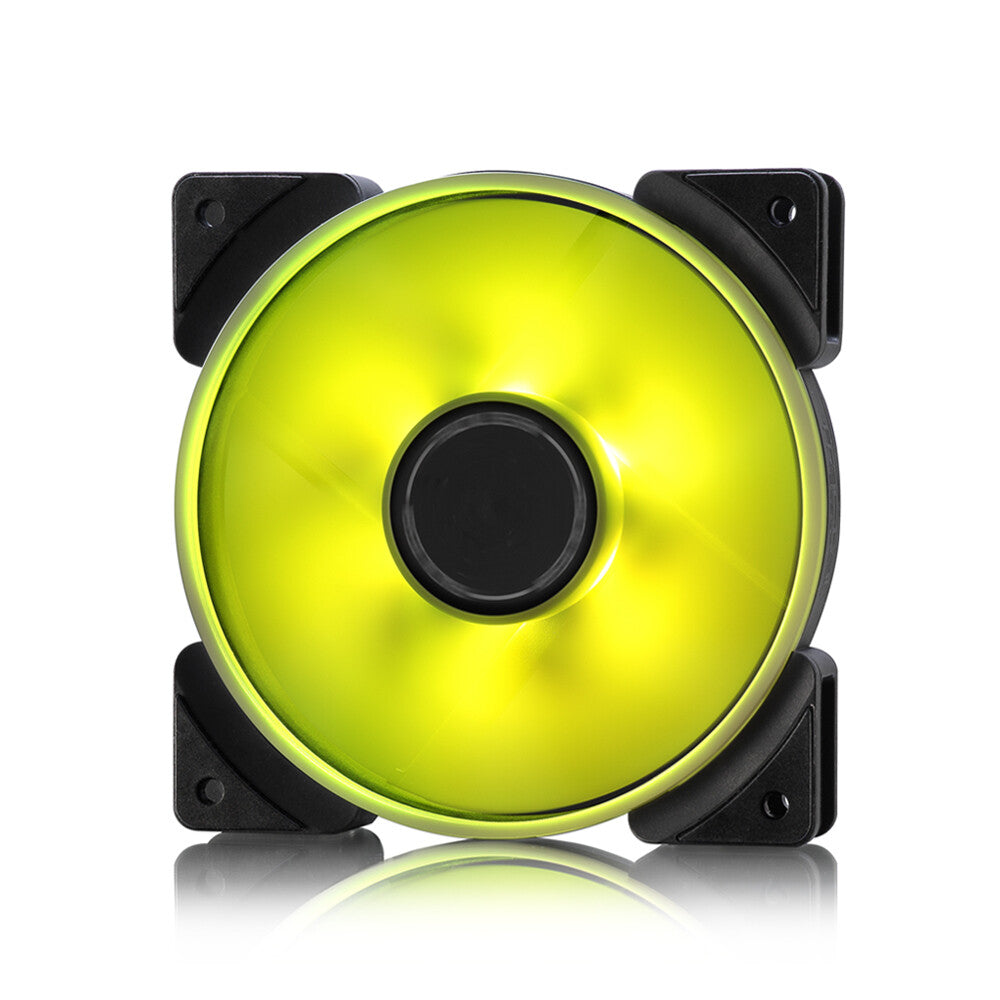

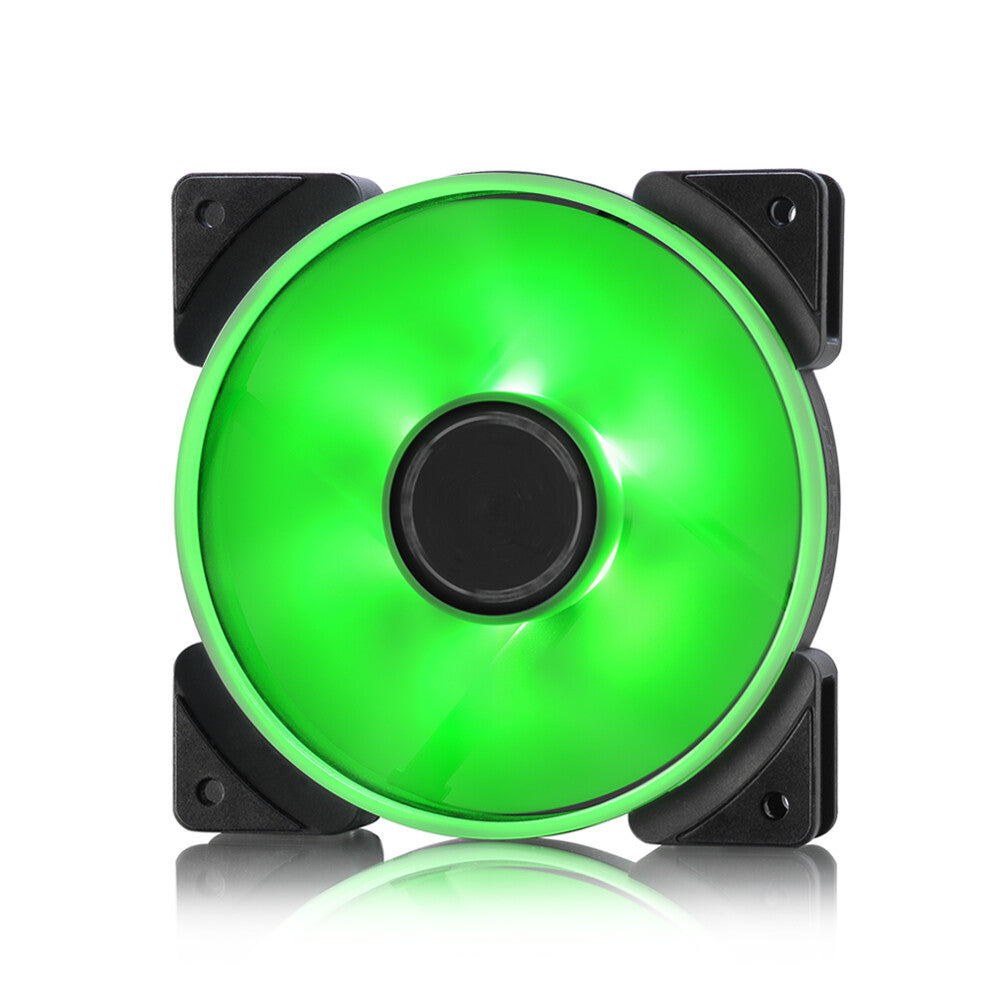

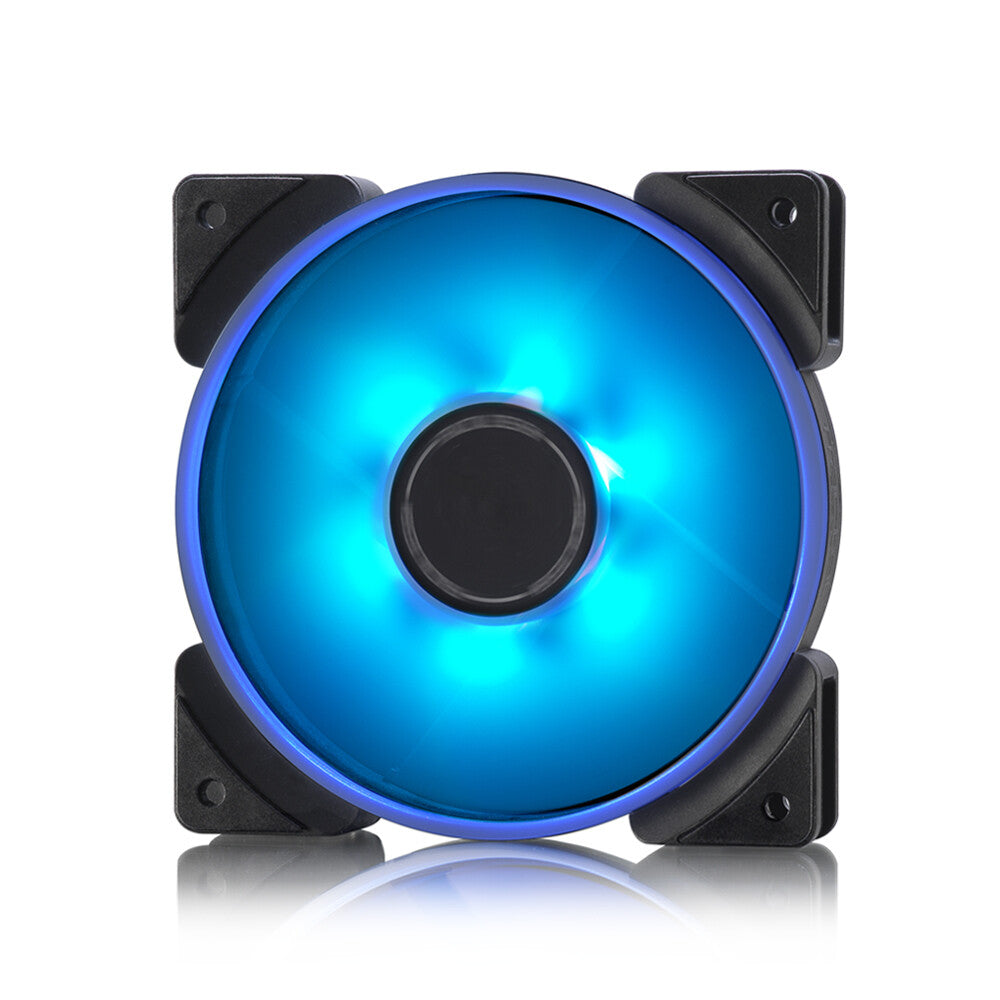

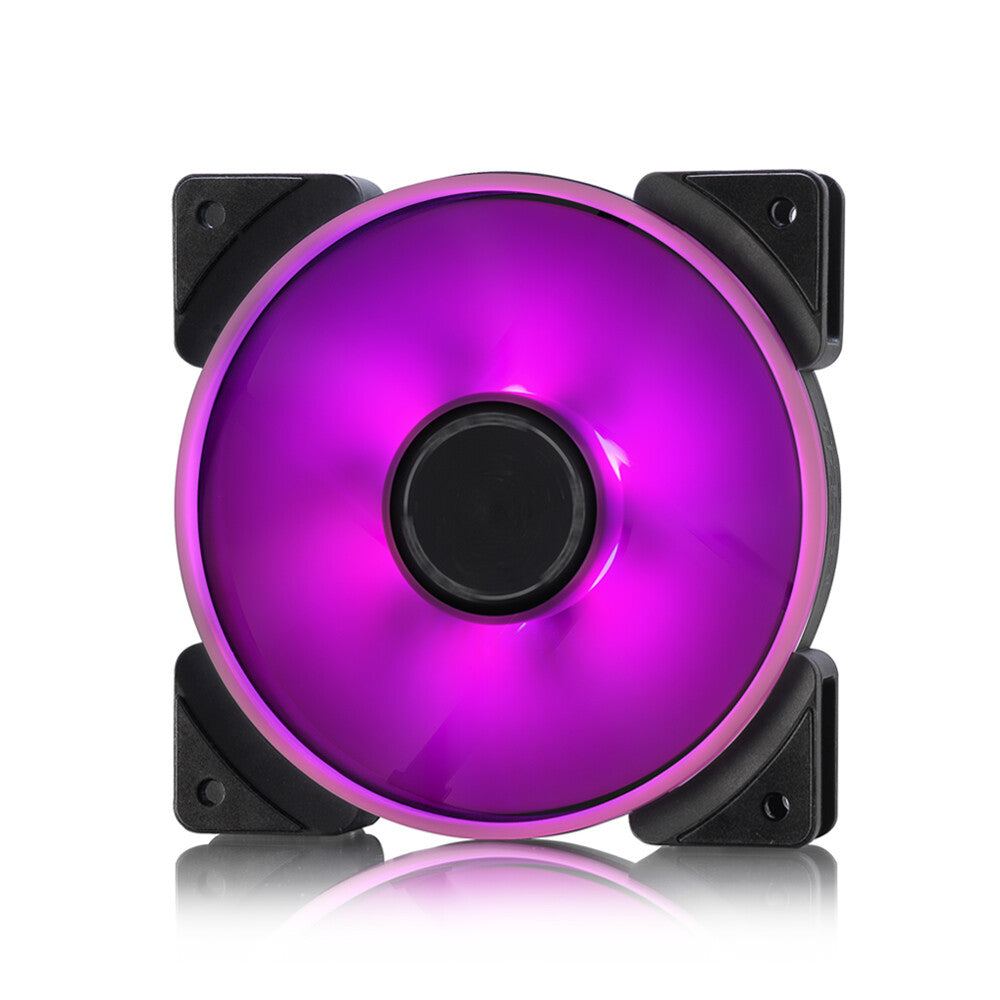

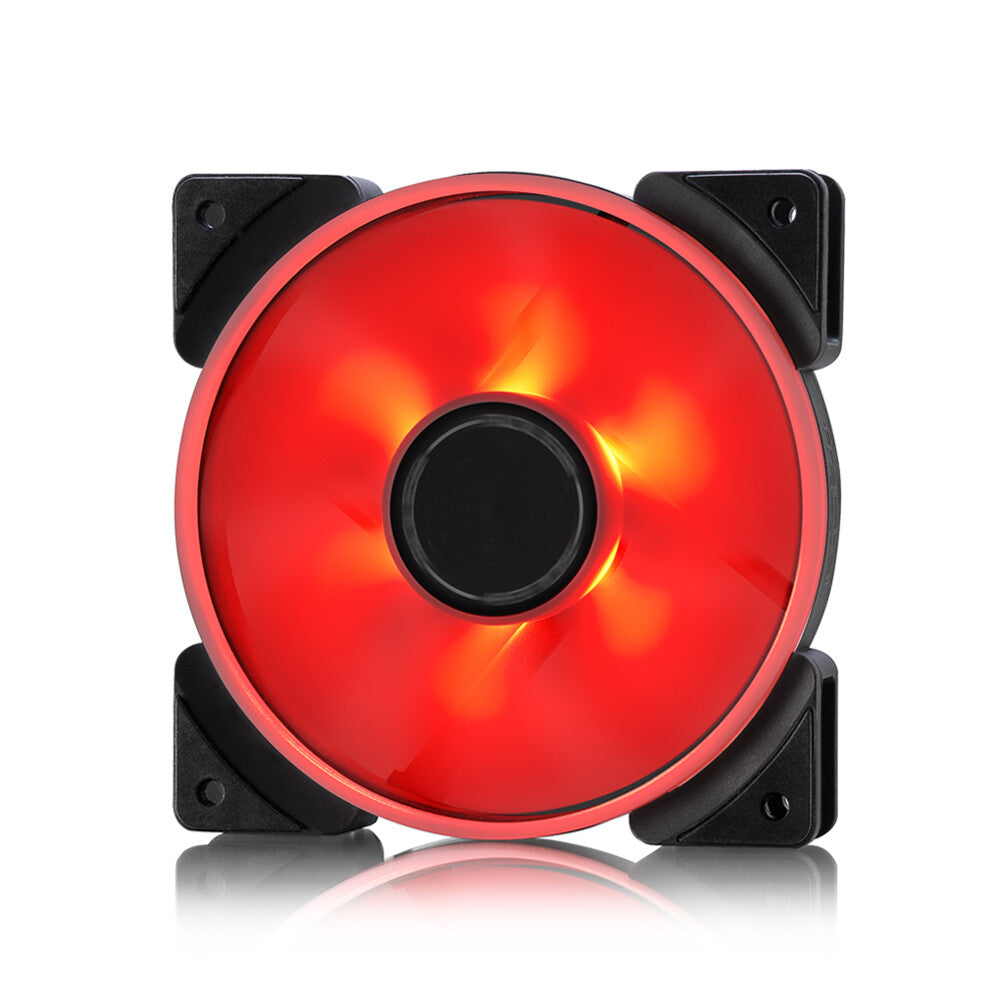

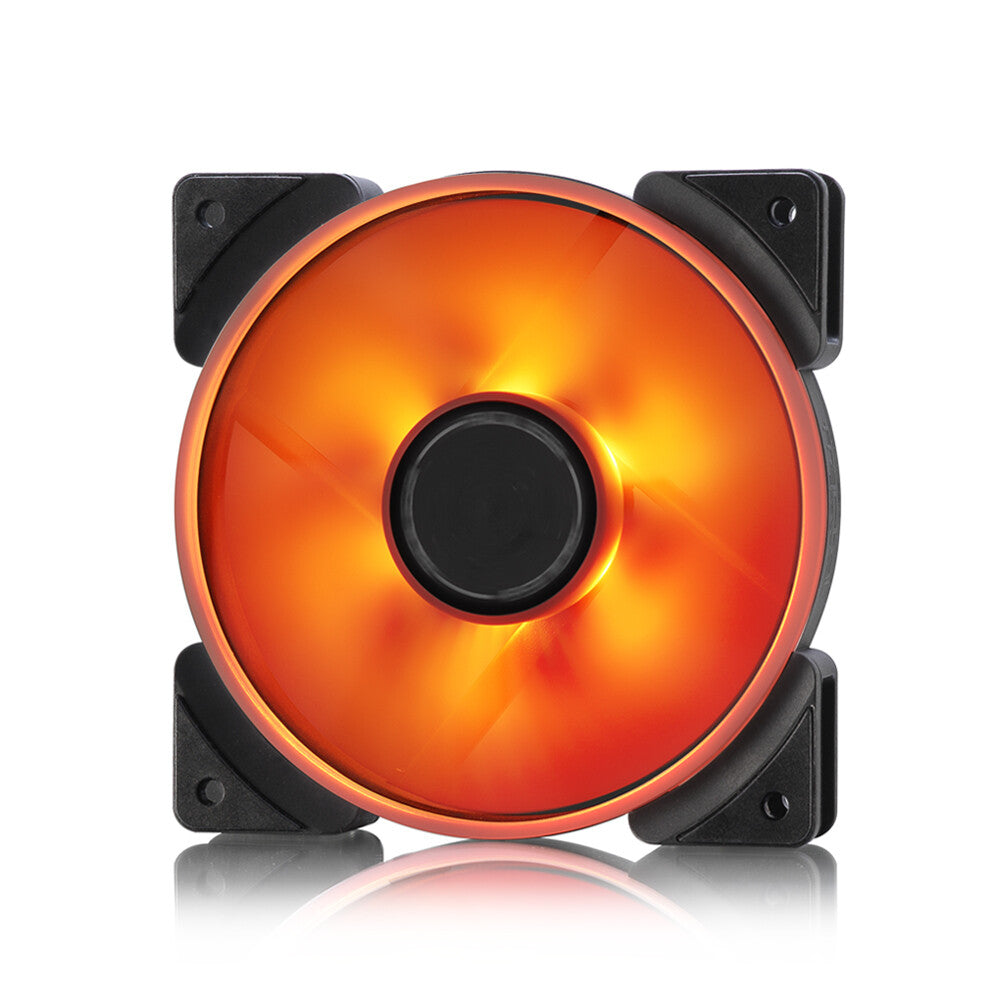

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Performance
Suitable location Computer case
Type Fan
Fan diameter 12 cm
Rotational speed (min) 500 RPM
Rotational speed (max) 2000 RPM
Noise level (low speed) 14.8 dB
Noise level (high speed) 32.7 dB
Minimum airflow (imperial) 20.68 cfm
Maximum airflow 85.71 cfm
Airflow 145.62 m³/h
Minimum air pressure 0.36 mmH2O
Maximum air pressure 2.78 mmH2O
Pulse-width modulation (PWM) support Yes
Bearing type Sleeve bearing
Quantity per pack 1 pc(s)
Mean time between failures (MTBF) 100000 h
Design
Product colour Black, White
Number of fans 1 fan(s)
Number of fan blades 7
Illumination LED Yes
Number of LEDs 6
Illumination colour Multi
Fan connector 4-pin
Display type Not applicable
Power
Power supply 2.16 W
Voltage 12 V
Starting voltage 7 V
LED voltage 5 V
Rated current 0.18 A
Weight & dimensions
Width 120 mm
Depth 25 mm
Height 120 mm
Weight 169 g
Cable length 0.5 m
Package width 182 mm
Package depth 122 mm
Package height 30 mm
Package weight 212 g
Packaging content
Screws included Yes
Number of screws 4
Other features
Country of origin China
Logistics data
Harmonized System (HS) code 84733080
