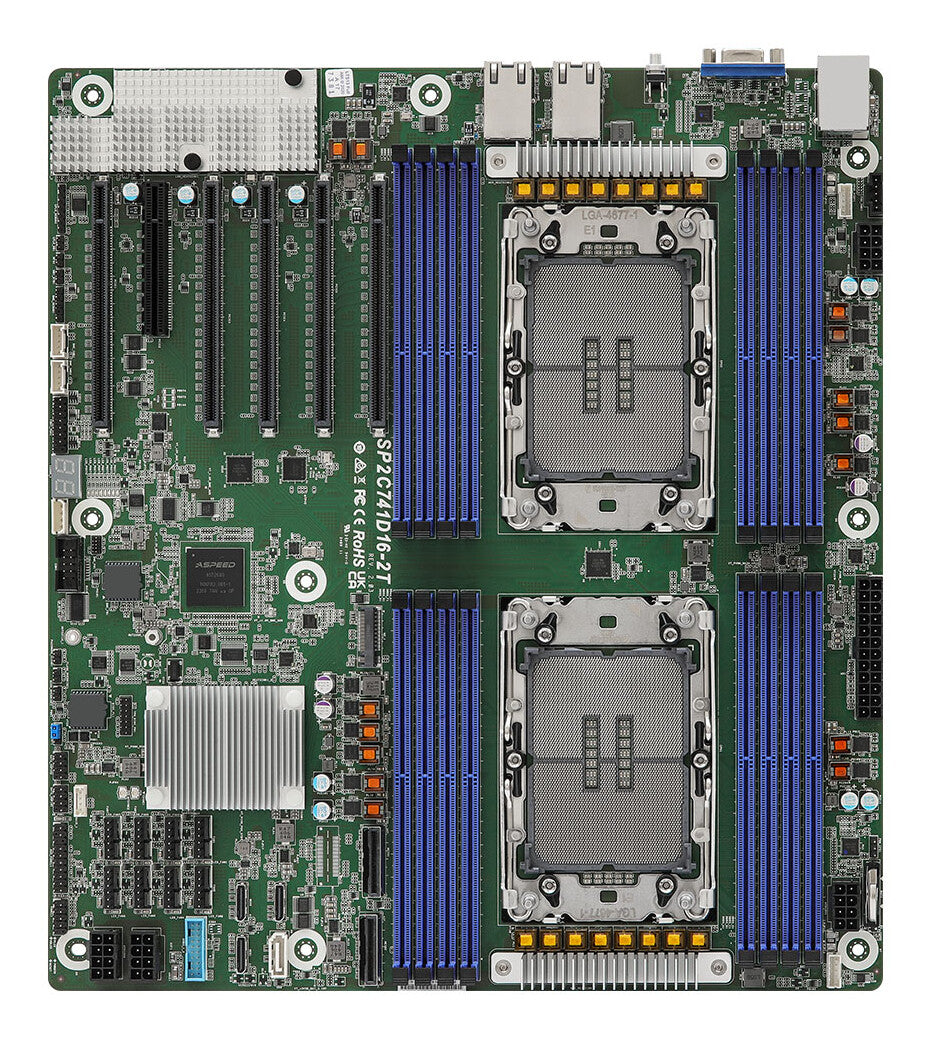

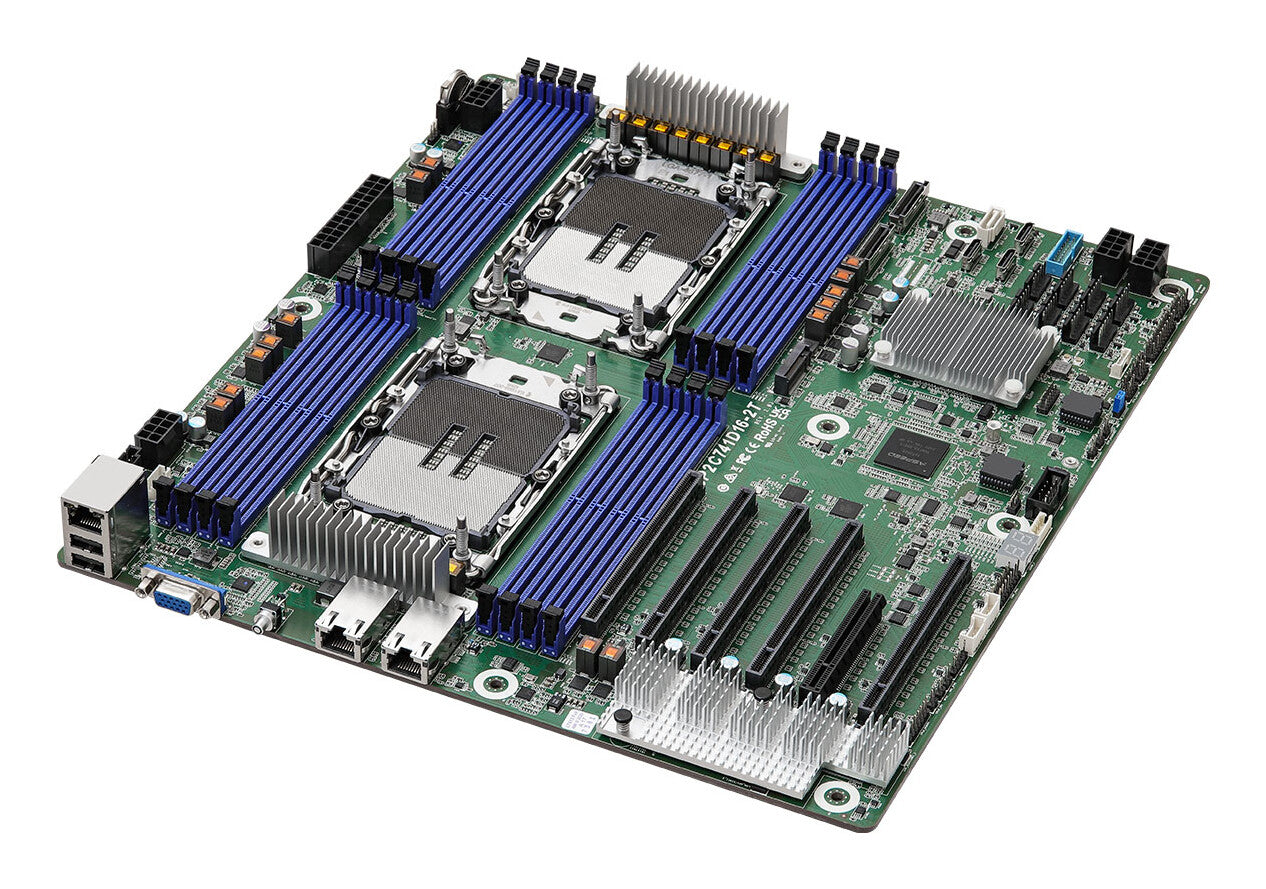

Asrock SP2C741D16-2T motherboard LGA 4677 (Socket E) EEB
£1,042.99
Couldn't load pickup availability
- TGPIO supporting precise time synchronization between devices
- EEB (12.12'' x 13.3")
- Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
- 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
- 5 PCIe5.0 / CXL1.1 x16
- 1 PCIe5.0 x8
- 2 MCIO (PCIE5.0 x8)
- 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Supports 1 M.2 (PCIe5.0 x4)
- Up to 13 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X710-AT2
- Remote management (IPMI)
Asrock Rack - SP2C741D16-2T
| Processor | |
|---|---|
| Supported processor sockets | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 4677 (Socket E) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Supported memory clock speed (max) | 5600 MHz |
| Memory voltage | 1.1 V |
| Number of memory slots | 16 |
| Supported memory types | DDR5-SDRAM |
| Graphics | |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

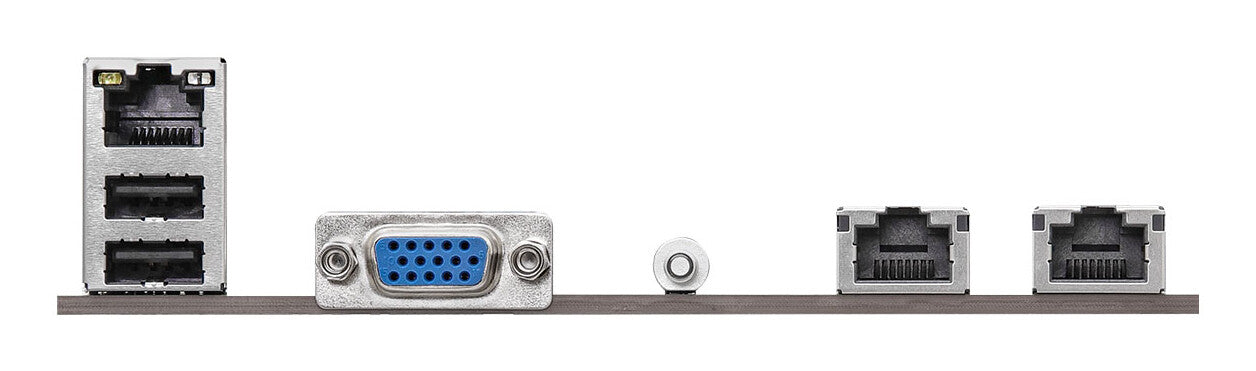

| Rear panel I/O ports | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Compatible operating systems | Microsoft® Windows®- Server 2022 (64 bit)Linux- Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit)- SUSE Enterprise Linux Server 15 SP3 ( 64 bit)- Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit)Hypervisor:- VMWare® ESXi 7.0 U3g / 8.0 |
| Motherboard chipset family | Intel |
| Motherboard form factor | EEB |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 3 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.4 |
| ACPI version | 4.0 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Depth | 337.8 mm |
| Width | 307 mm |
