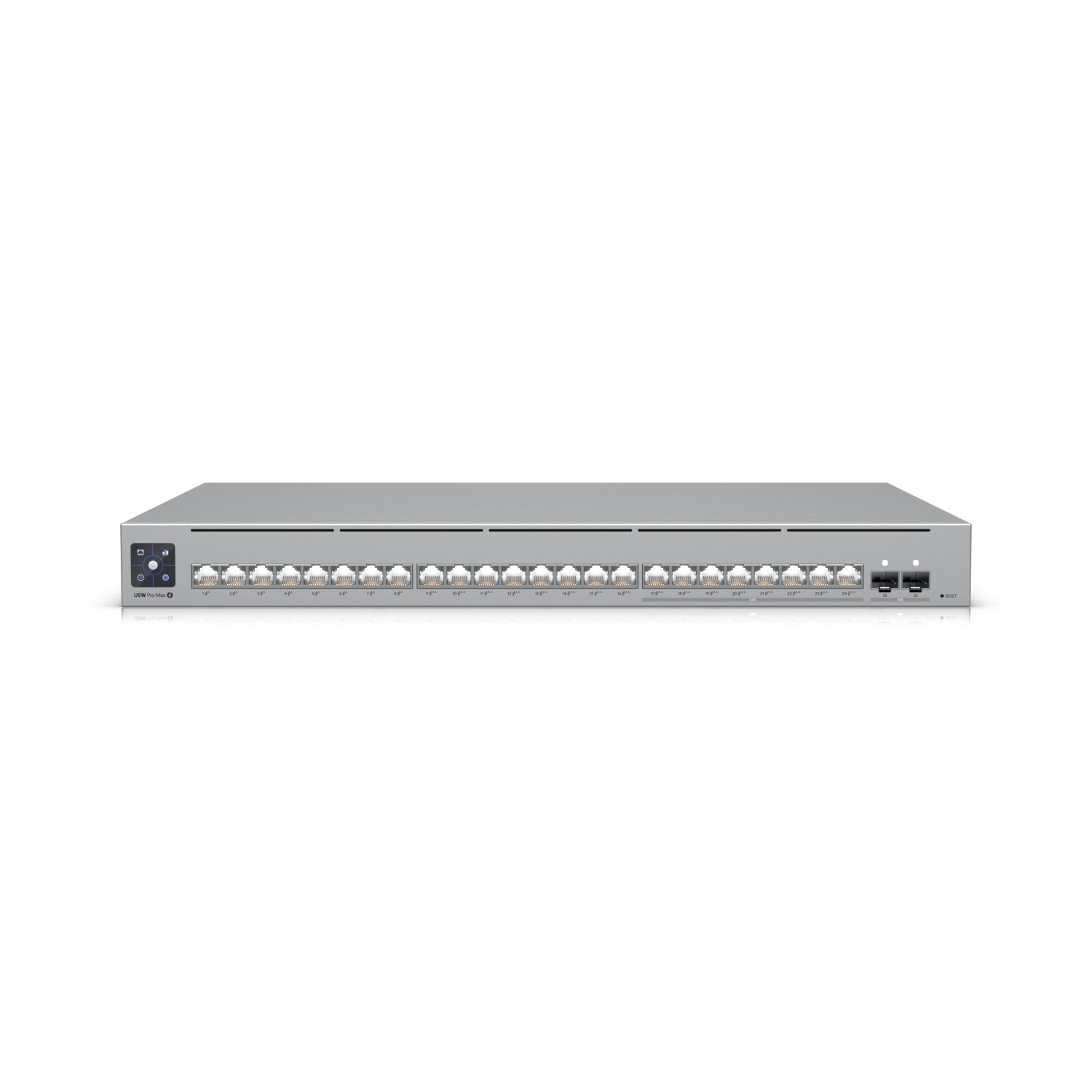

Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
iFrame
£719.99
Couldn't load pickup availability

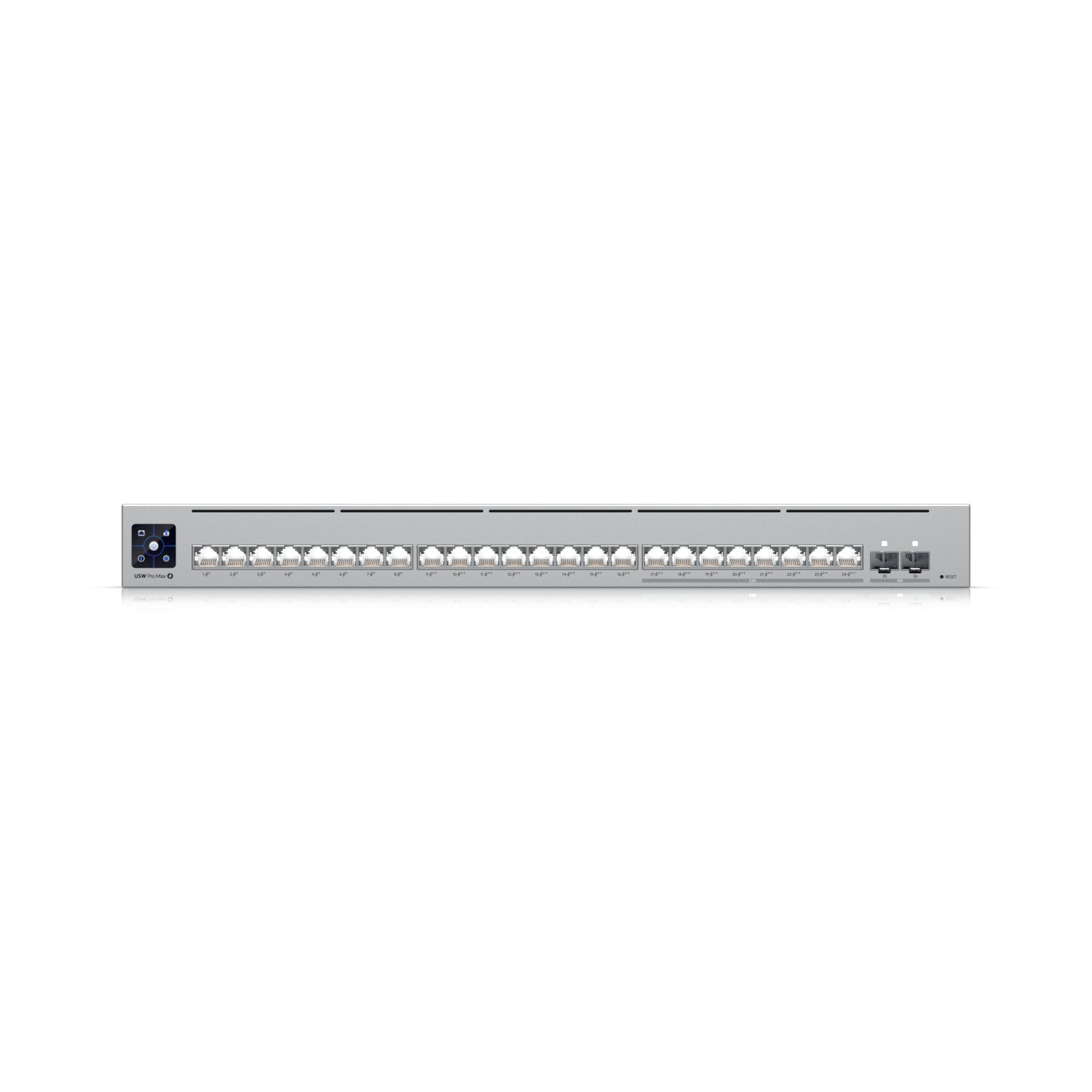

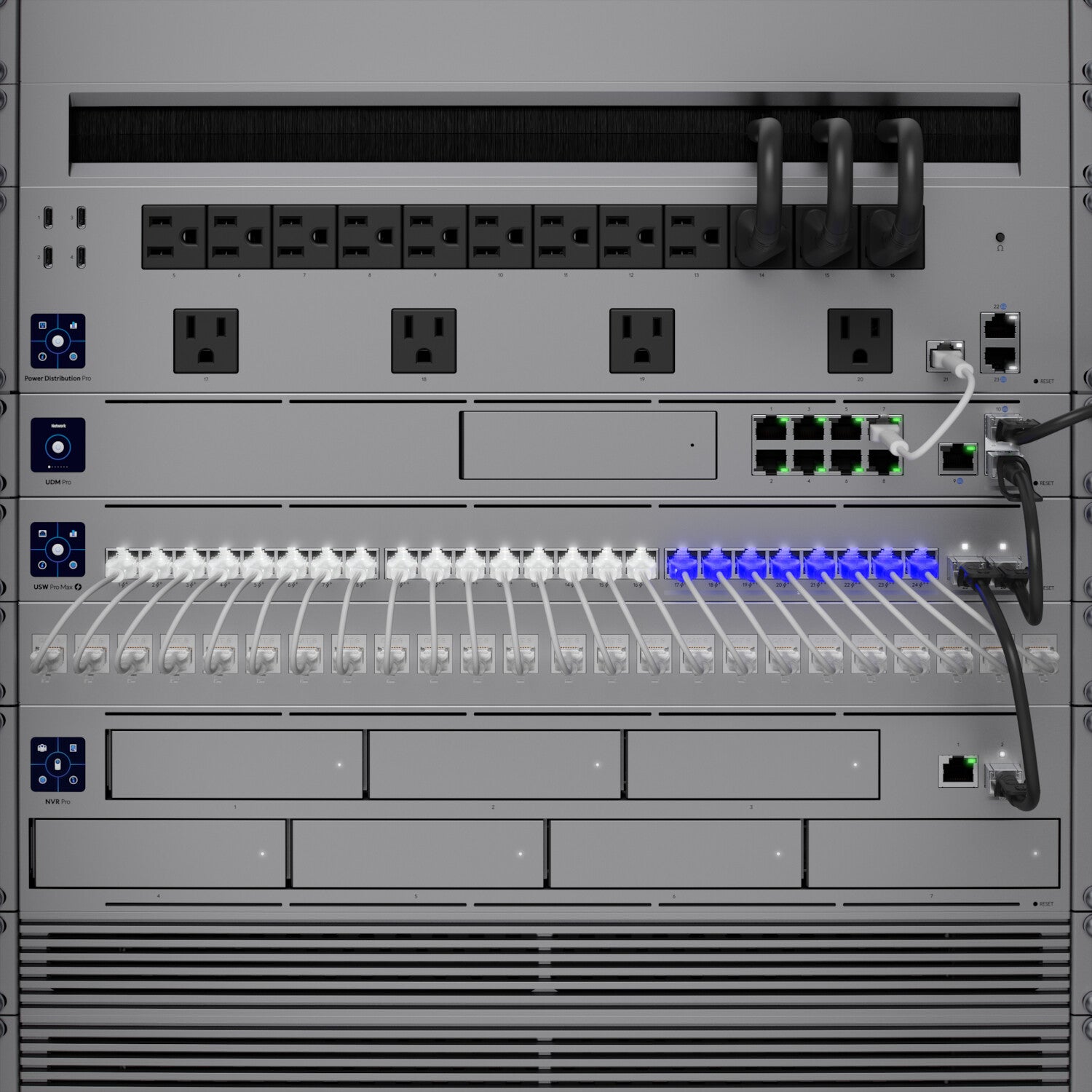

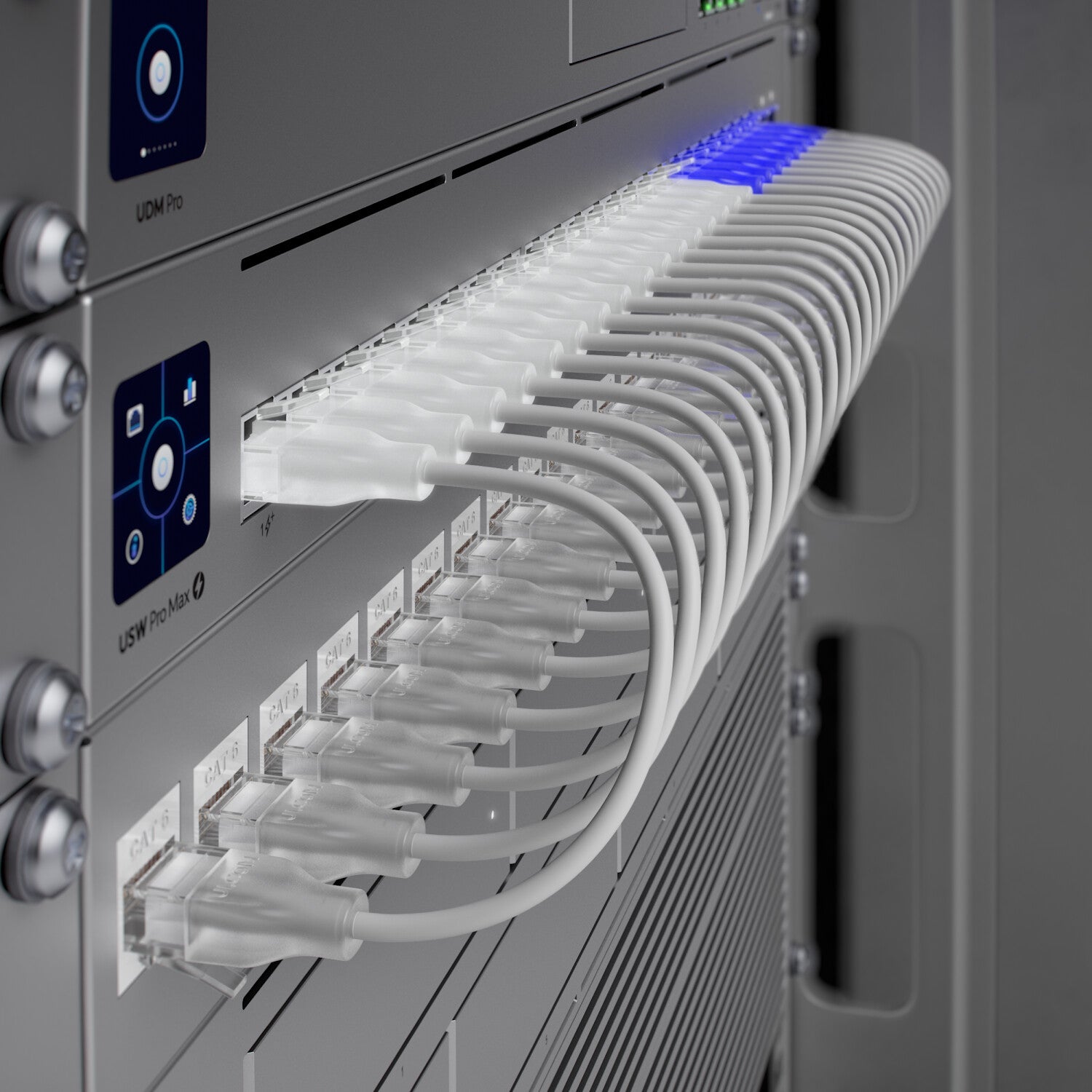

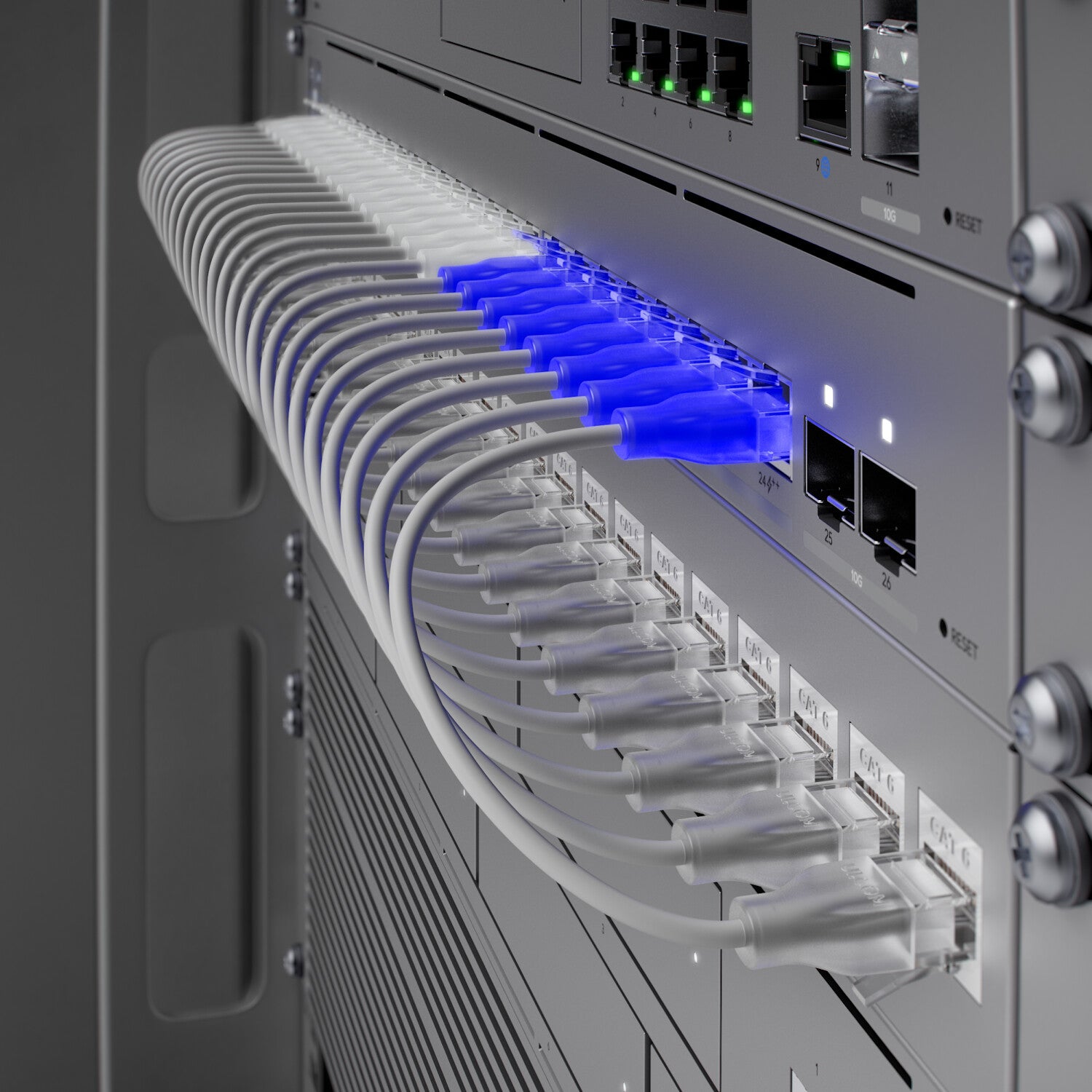

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 2.5 GbE PoE++ ports
- (16) GbE ports including (8) PoE+ and (8) PoE++
- (2) 10G SFP+ ports
- DC power backup ready
- 400W total PoE availability
- Managed with UniFi Network 8.0.24 and later

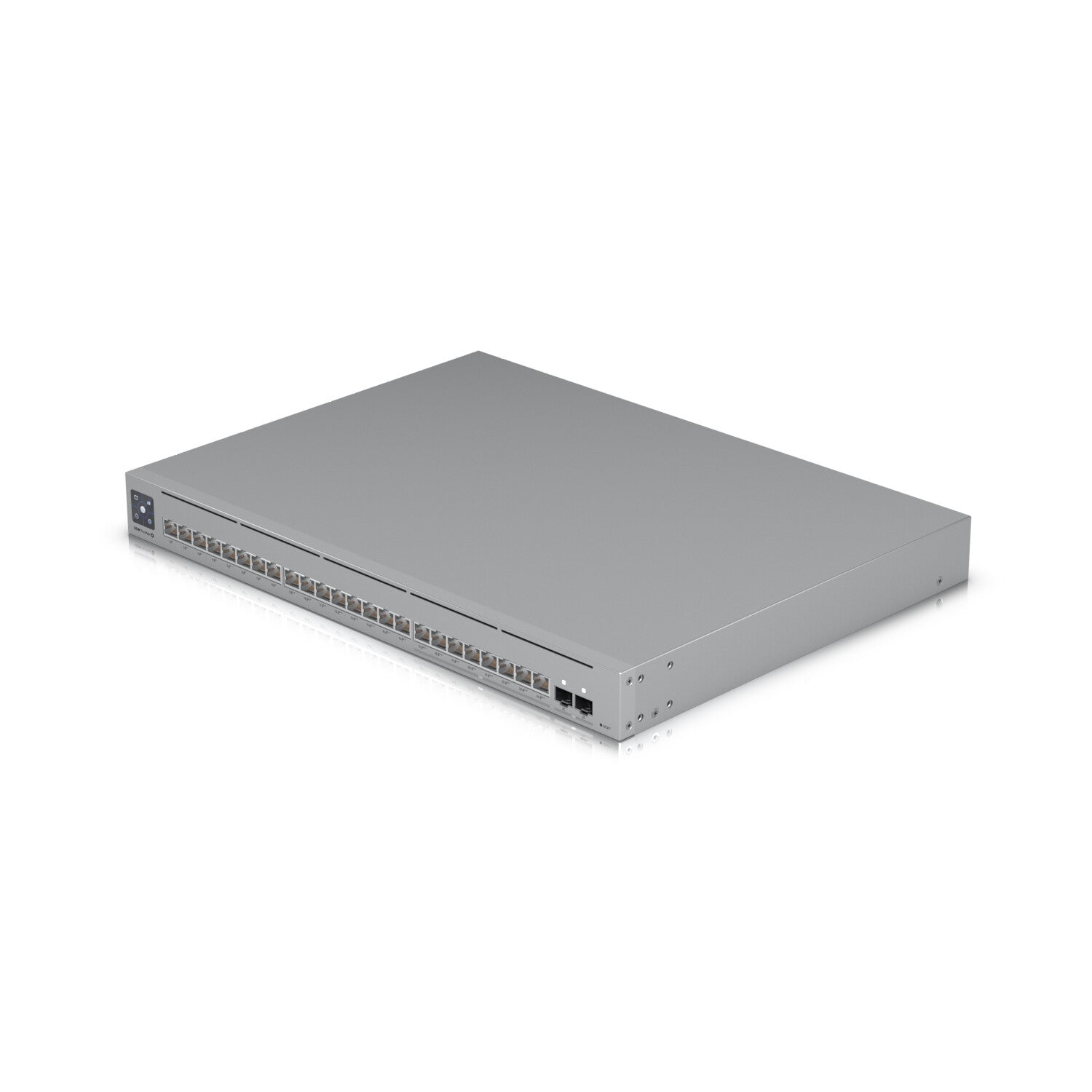

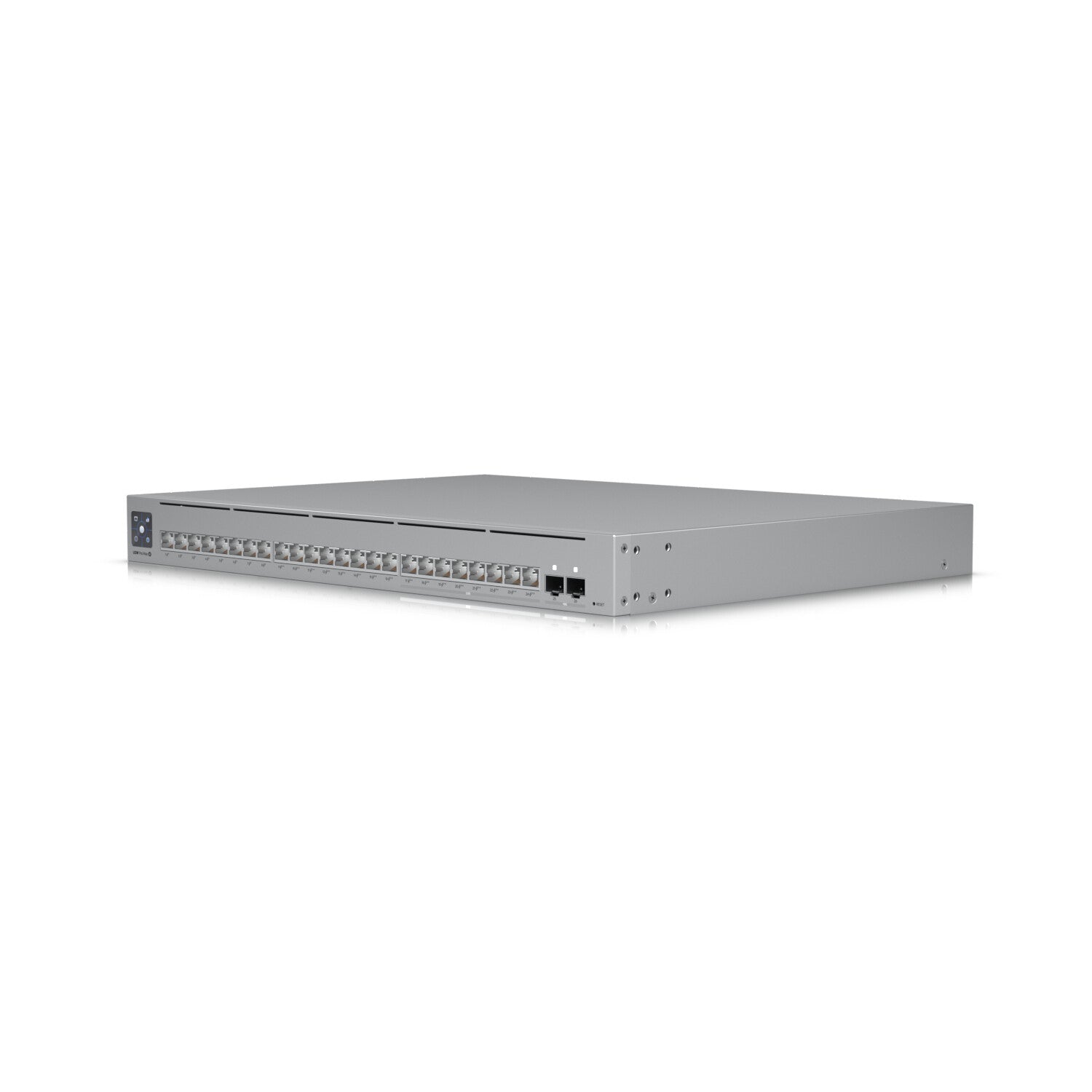

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
| Management features | |
|---|---|
| Switch layer | L3 |
| Ports & interfaces | |
|---|---|

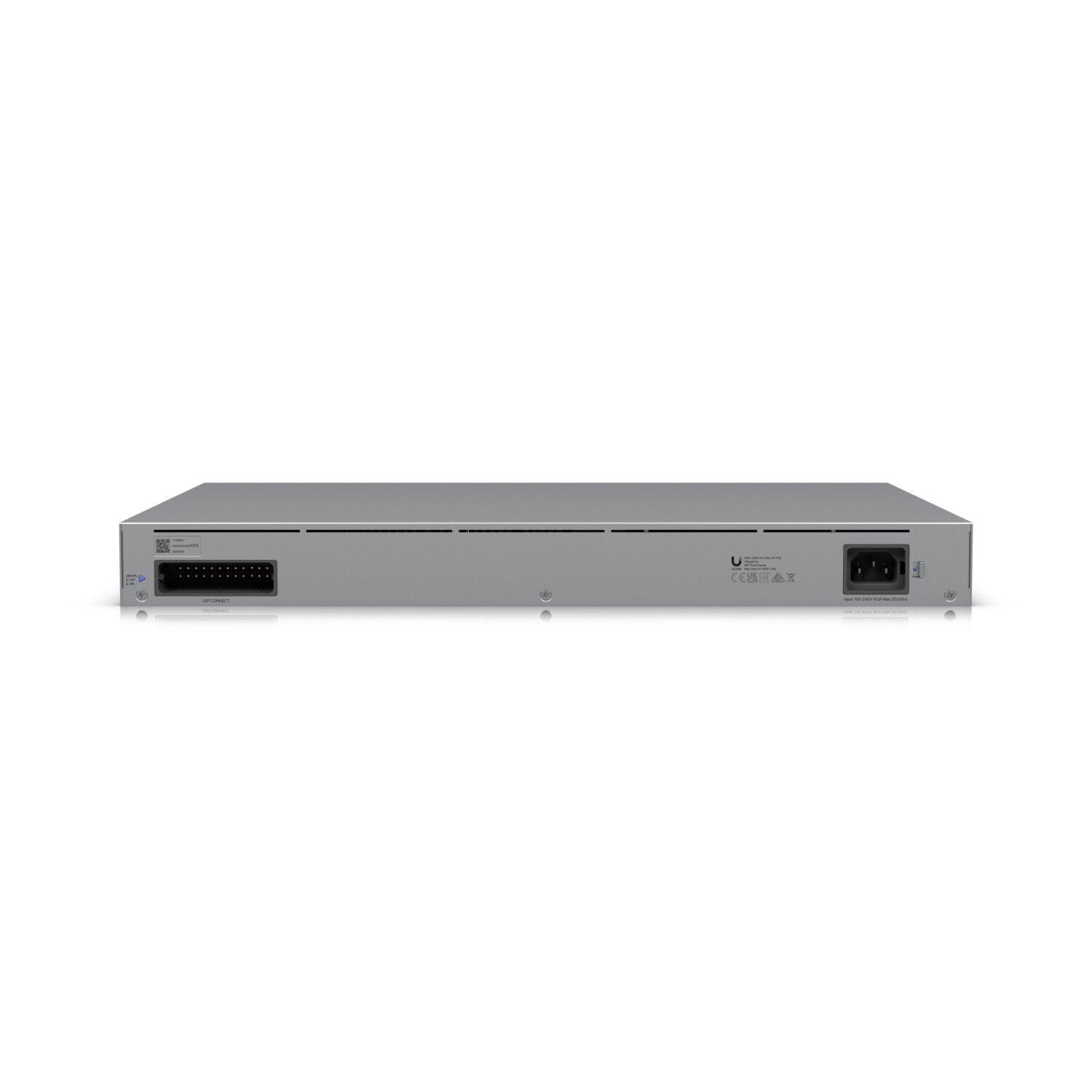

| Power connector | AC/DC |
| Installed SFP+ modules quantity | 2 |
| 10G Ethernet (copper) ports quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| 10G support | Yes |
| Data transmission | |
|---|---|
| Switching capacity | 112 Gbit/s |
| Design | |
|---|---|
| Display type | LCM |
| Backlight display | Yes |
| LED indicators | Link, Network, Speed, Status |
| Reset button | Yes |
| Housing material | SGCC |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 50 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 43.7 mm |
| Depth | 325 mm |
| Width | 442.4 mm |

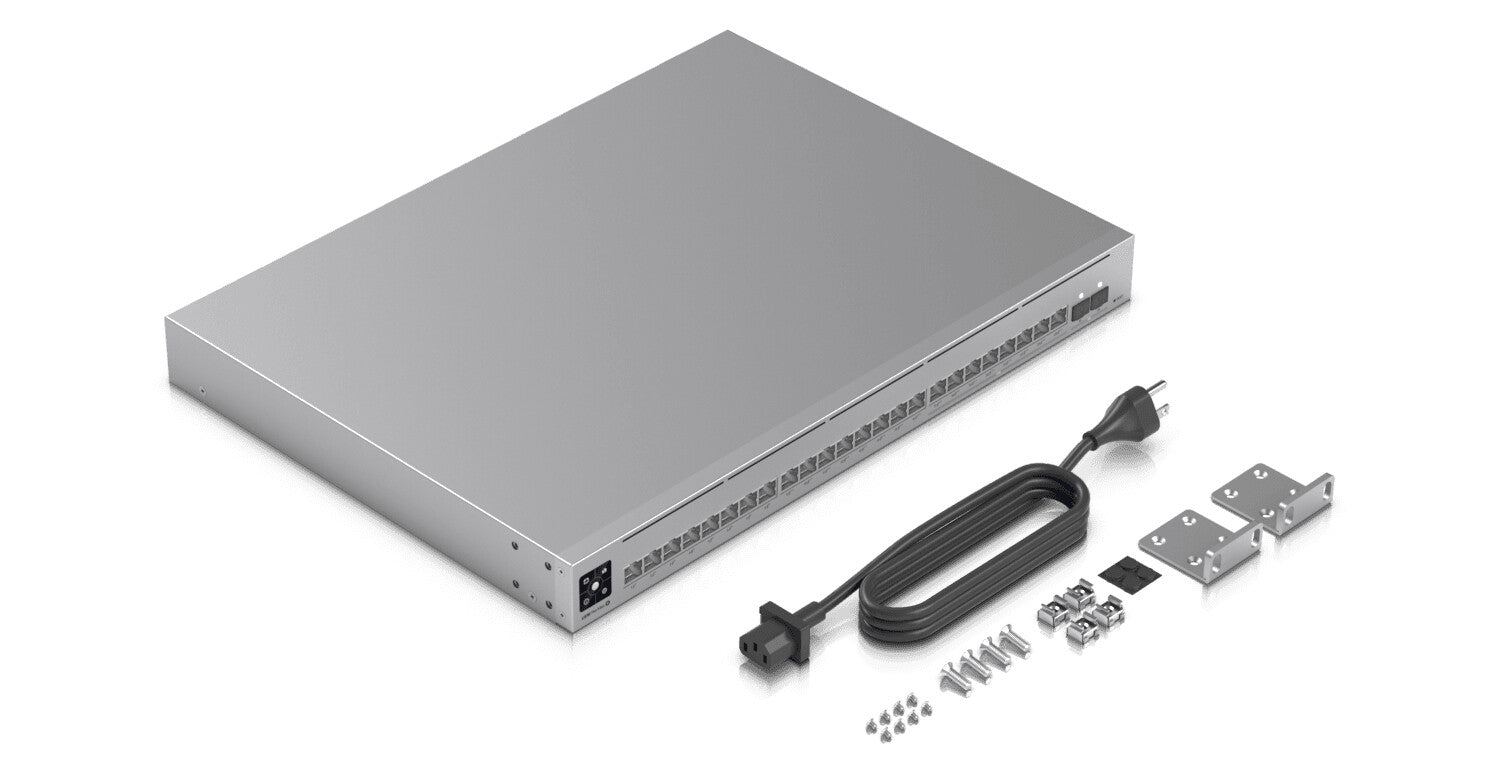

| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Cables included | Power |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
