Ubiquiti UniFi Pro XG 8 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
£470.99
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support
- MAC address table: 32000 entries Switching capacity: 200 Gbit/s
- AC/DC Power supply included Power over Ethernet (PoE)

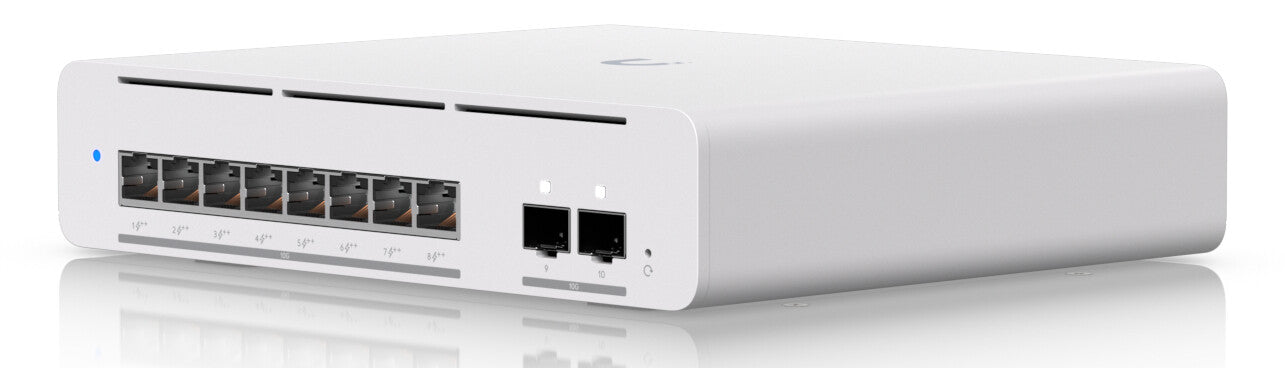

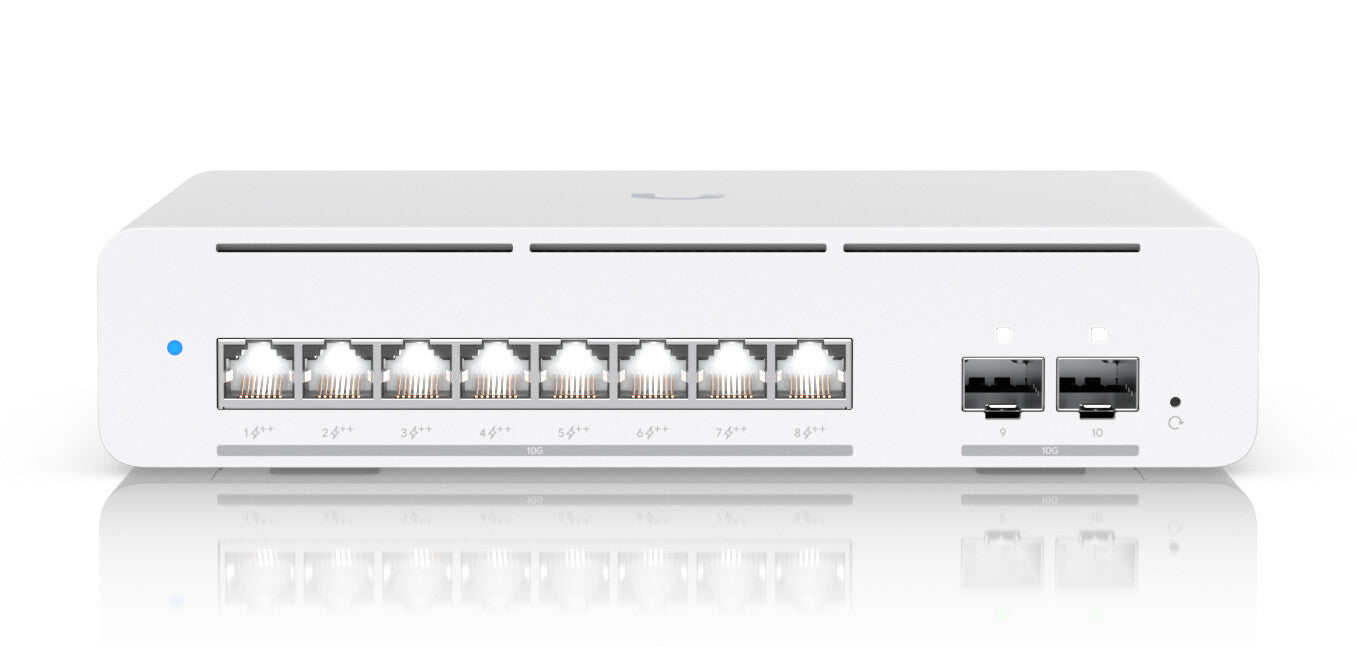

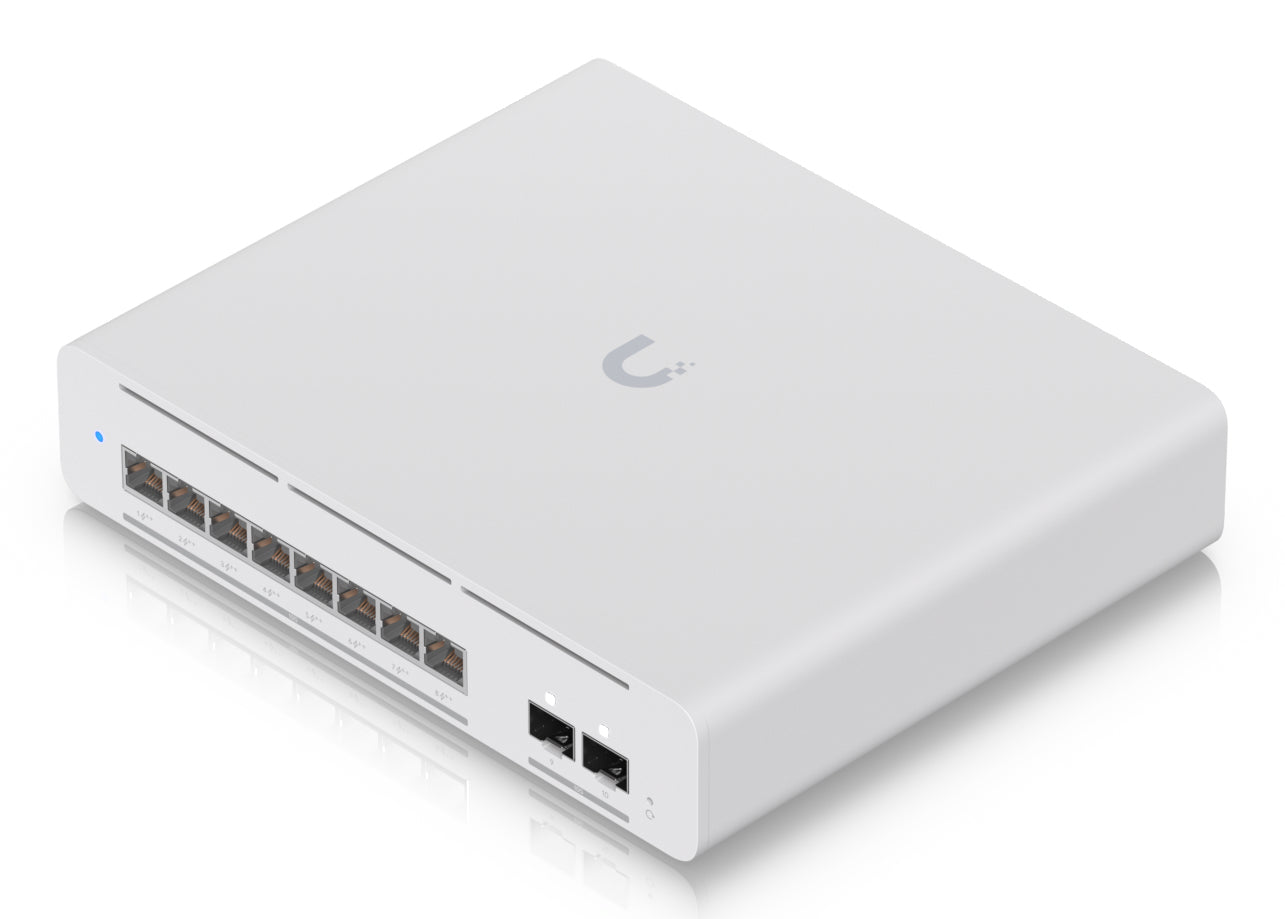

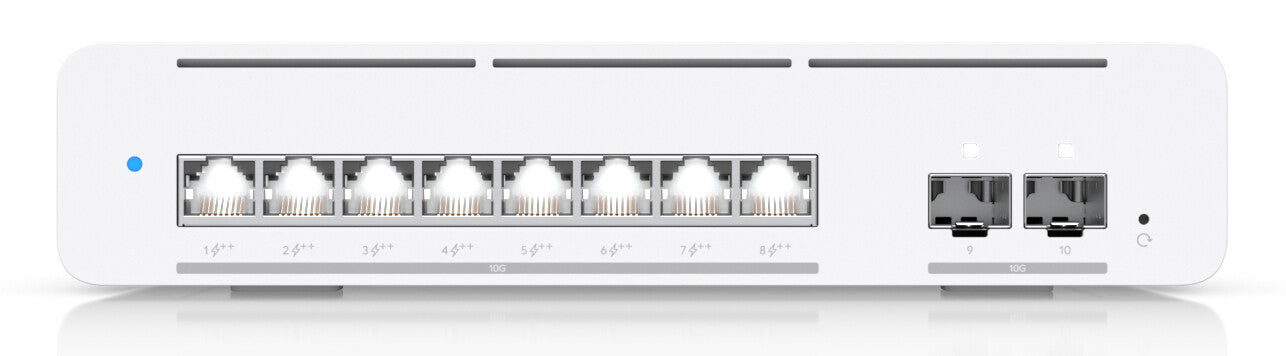

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|

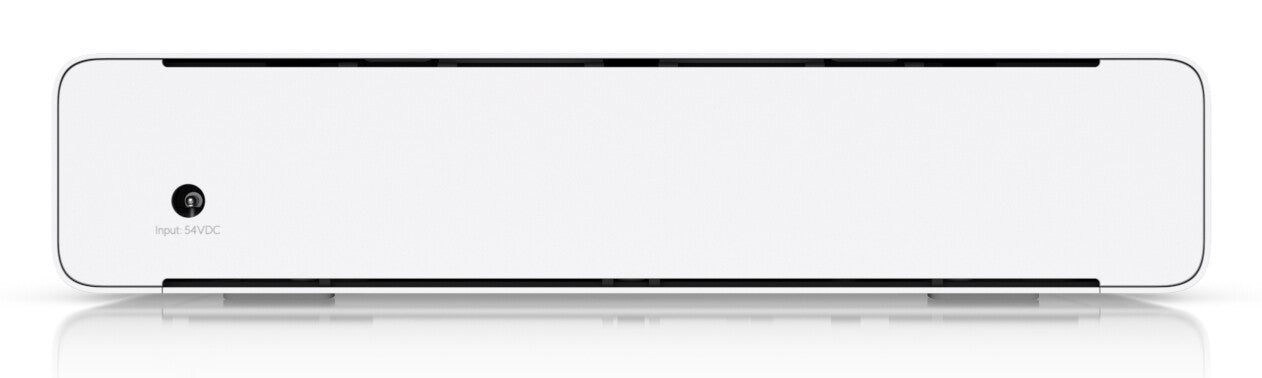

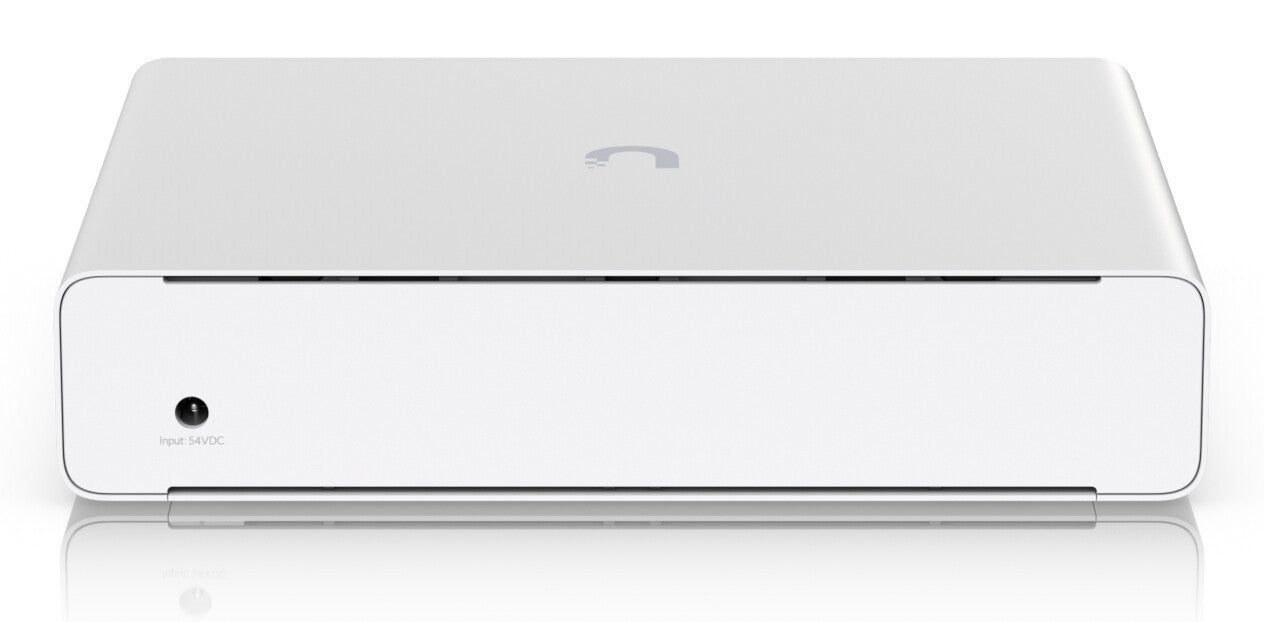

| Power connector | DC-in jack |
| SFP+ module slots quantity | 2 |
| 10G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 1000 |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| IPv4 routes | 12000 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 149 Mpps |
| Switching capacity | 200 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | System |
| Reset button | Yes |
| Housing material | SGCC |
| Product colour | Grey |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 220 W |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 155 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.6 kg |
| Height | 43.7 mm |
| Depth | 173.8 mm |
| Width | 210.4 mm |

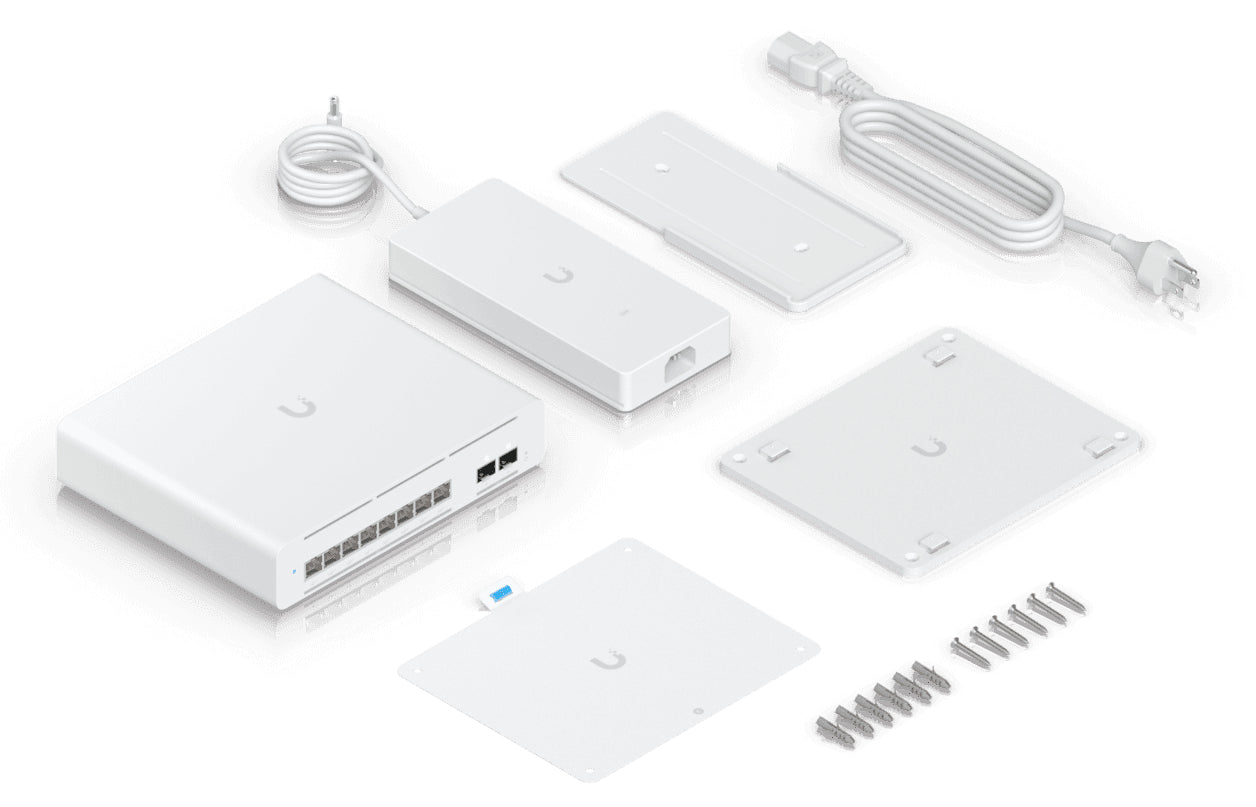

| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | Power |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
