Teltonika SWM281 Managed L2+ Gigabit Ethernet (10/100/1000) Black
iFrame
£186.99
Couldn't load pickup availability
- Managed L2+
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8 entries Switching capacity: 56 Gbit/s
- Rack mounting
- AC

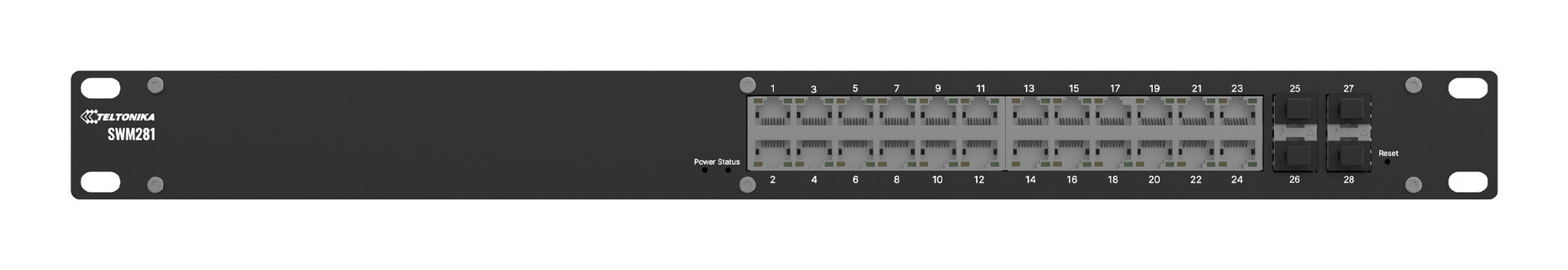

SWM281 Gigabit Ethernet managed switch
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.512 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Forwarding rate | 83.33 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8 entries |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP server |
| Design | |
|---|---|
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Memory type | DDR3-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 20 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | No |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.85 kg |
| Height | 44 mm |
| Depth | 234 mm |
| Width | 483 mm |
| Certificates | |
|---|---|
| Certification | CE, UKCA, CB, RCM, FCC, IC |
