SilverNet SIL 534C24MP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 19U Black
£727.99
Couldn't load pickup availability
- 24 x 10/100/1000M Base TX RJ45 Ports
- 4 xGigabit Combo (SFP/RJ45) Ports
- Auto Negotiation
- Full/Half Duplex
- Auto MDI/MDI X Connection-
- 4Mbits Packet Buffer Size-
- 8K MAC Address Table-
- 10K Jumbo Packets
- IEEE 802.3af/at PoE+
- Advanced PoE Functions: Output Setting, Smart PoE, PoE Scheduling and Budget Management
- Web GUI / CLI / NMS Management
- Redundant Network with STP/RSTP/ERPSv2
- RADIUS, IEEE 802.1X, SNMPv3, HTTPs, SSH
- 3 Year Warranty

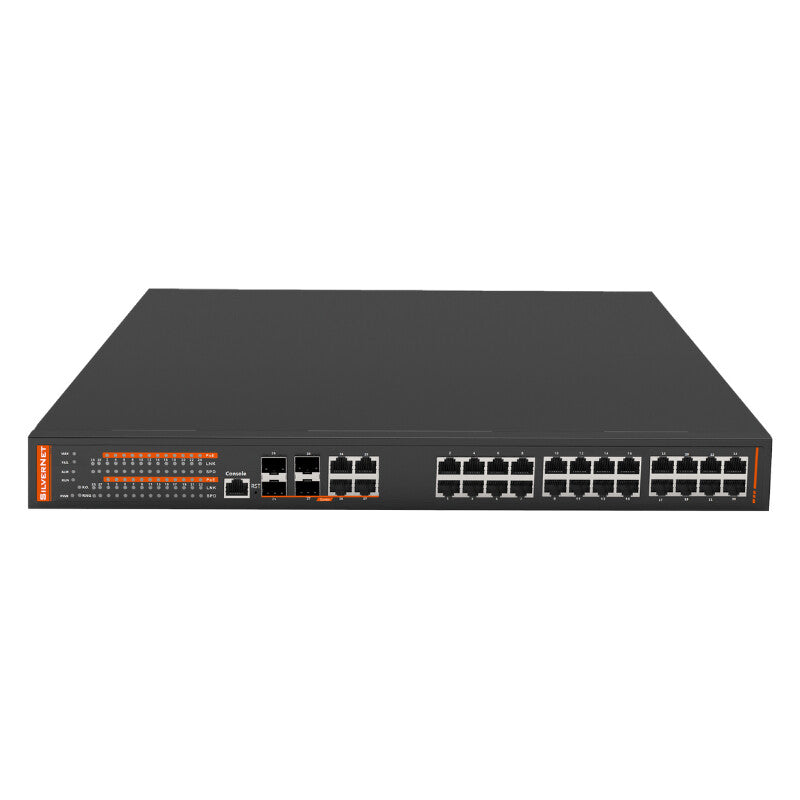

The SIL 534C24MP is a Commercial grade Gigabit PoE+ Managed Switch. It is a fully managed layer 2 switch that provides stable and reliable Ethernet transmission.

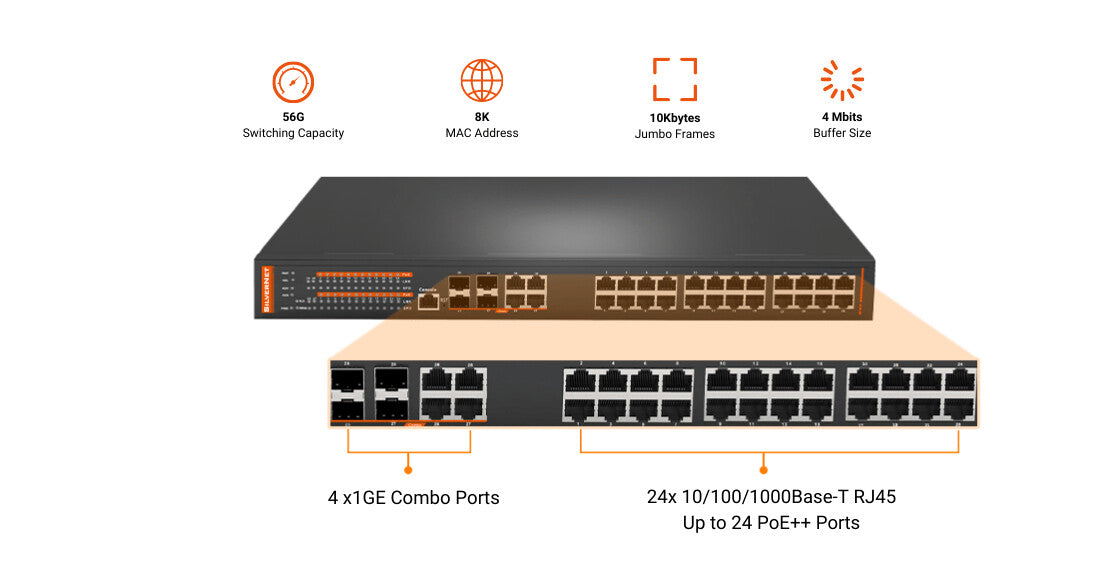

The switch comes with, 24 x 10/100/1000Base-T ports with 4 x Gigabit Combo ports (TP + SFP).
The SIL 534C24MP has no fan, low power consumption and high reliability.
The SIL 534C24MP is ideal for expanding your business network. The switch has configurable Layer 2 network features such as VLANS, PoE Scheduling, IGMP snooping and more.
The switch is fully compliant with the IEEE802.3af/at standard, providing Power-over-Ethernet over twisted pair cables. It delivers great performance for growing networks and are ideal for use with VoIP phones, IP cameras and wireless access points.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| Fiber optic connector | LC, SFP |
| SFP module slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Fast Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000Base-X |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Latency (1 Gbps) | 7 µs |
| Latency (10-100 Mbps) | 7 µs |
| Store-and-forward | Yes |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMPv3, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address entries | Blackhole MAC address entries, Static MAC address entries |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCPv6 client, DHCPv6 server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Electromagnetic compatibility | EN55032 Class A, CISPR 32 FCC Part 15B Class A, EN61000 4 2 (ESD) EN61000 4 3 (RS) EN61000 4 4 (EFT) EN61000 4 5 (Surge) EN61000 4 6 (CS) EN61000 4 8 (PFMF) |
| International Protection (IP) code | IP30 |
| LED indicators | Alarm, LAN, Link, Power, Ring |
| Housing material | Aluminium |
| Product colour | Black |
| Form factor | 19U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 250000 h |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Noise level | 0 dB |
| Power | |
|---|---|
| Power protection features | Overload, Reverse polarity |
| Power consumption (max) | 24 W |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4 kg |
| Height | 45 mm |
| Depth | 300 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 5.08 kg |
| Package height | 80 mm |
| Package depth | 495 mm |
| Package width | 393 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | IEC/EN 62368-1IEC 60068-2-27IEC 60068-2-32IEC 60068-2-6RoHS |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
