£1,103.99

Stock Available: 0
  • LTE Router for Primary or Failover Connectivity
  • Out of band management for remote troubleshooting
  • LTE-Advanced (LTE-A and LTE-A Pro) for 10x faster downlink speeds and 3x faster uplink speeds
  • Cloud Hosting -- Deploy and manage your network from the cloud
  • 2-port or 4-port 10/100/1000 Ethernet
  • Network connectivity via LTE, Wi-Fi, Ethernet, USB 3.2, and Serial
  • RS232, RS485, Alarm Relay, and multiple I/O to connect equipment
  • Advanced feature set with NO Annual Fees

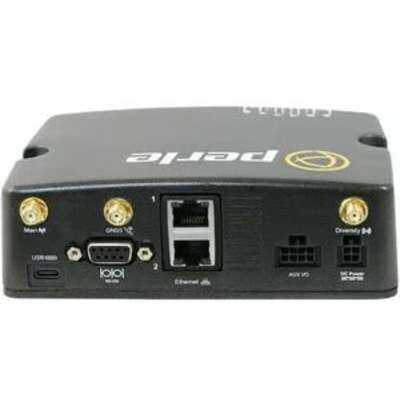

Perle IRG5500 LTE Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots, also have models with WLAN capabilities making them a single network point of contact for fast deployments. And, there is no need for training because an IRG5500 Router comes with an intuitive web GUI. For advanced admin scrips, CLI commands are also available.

Perle IRG5500 Routers provide fast, secure, and reliable managed LTE network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG5500 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

IRG5550 LTE Routers
Building and process automation controllers, Internet of Things (IoT)
Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
Digital signage, ATMs, POS, Kiosks, Temporary "pop-up” stores
Video surveillance controllers, IP cameras, Mobile hotspots
Fleet management, GPS/GNSS Location tracking, Taxis, Public Service Vehicles, vehicle area networking (VAN)
Public Service Vehicles, First responders, Command Centers
Transit systems, Buses, Metro Subways, Railways

Design
Device type Cellular network router
Product colour Black
Housing material Aluminium
LED indicators Power, WAN
Ethernet LAN features
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Wireless LAN features
Wi-Fi No
Mobile network
Data network 4G
4G standard LTE-A
Number of SIM cards 2
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Yes
Serial interface type RS-232
Serial ports quantity 1
Performance
Built-in processor Yes
GPS (satellite) Yes
Antenna connector type SMA
International Protection (IP) code IP54
Antenna gain level (max) 3 dBi
Power
Power source type DC
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 146 mm
Depth 99 mm
Height 45 mm
Weight 590 g
Packaging data
Package width 270 mm
Package depth 170 mm
Package height 70 mm
