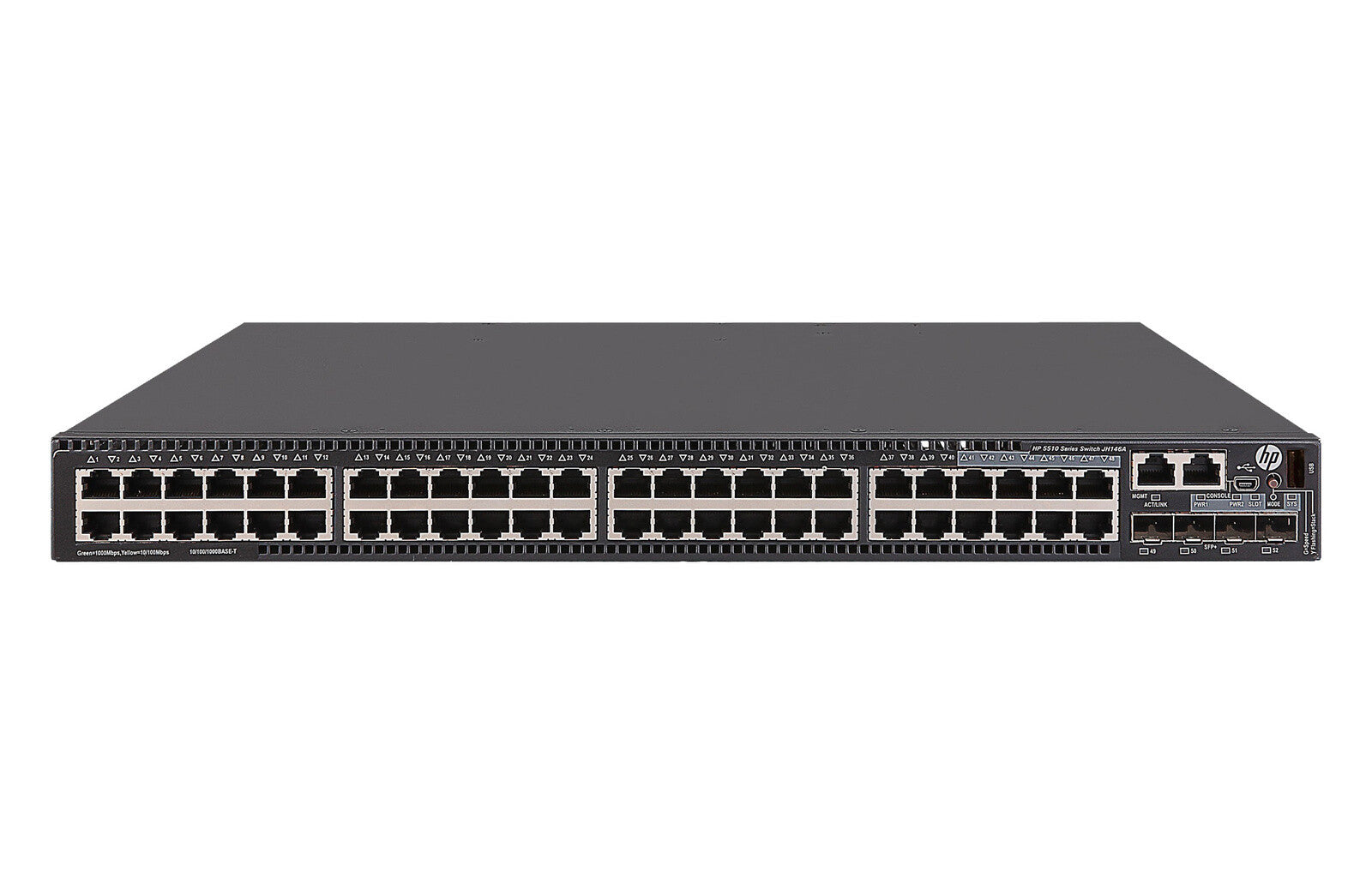

HPE FlexNetwork 5510 48G 4SFP+ HI 1-slot Managed L3 Gigabit Ethernet (10/100/1000) 1U
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- MAC address table: 32768 entries Switching capacity: 336 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC
The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver the highest levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration. Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10 GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 3 µs |
| Latency (1 Gbps) | 5 µs |
| Throughput | 250 Mpps |
| Switching capacity | 336 Gbit/s |
| MAC address table | 32768 entries |
| Security | |
|---|---|
| Authentication | MAC-based authentication |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP snooping, DHCPv6 snooping |
| Protocols | |
|---|---|
| Routing protocols | BGP, BGP4+, OSPF, OSPFv3, RIP, RIPng |
| Design | |
|---|---|
| Airflow direction | Front-to-back airflow |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 150 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.5 kg |
| Height | 43.7 mm |
| Depth | 360 mm |
| Width | 440 mm |
