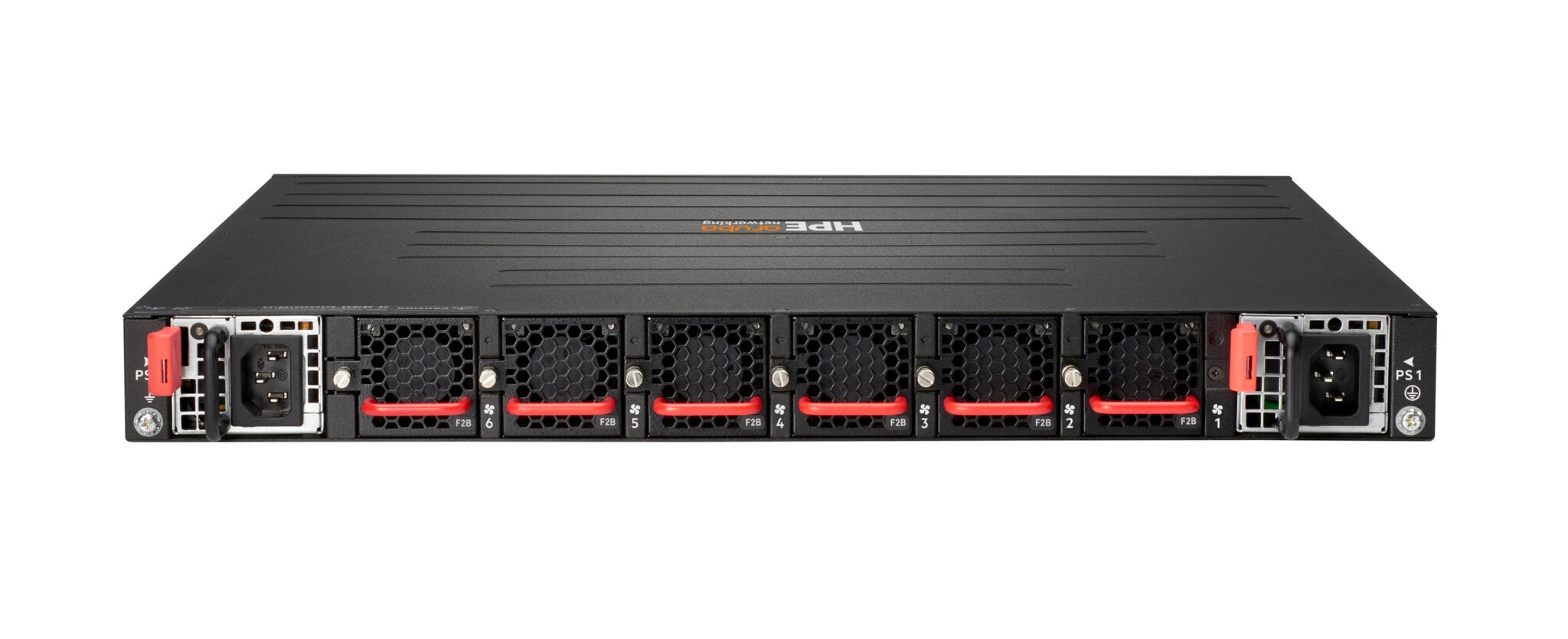

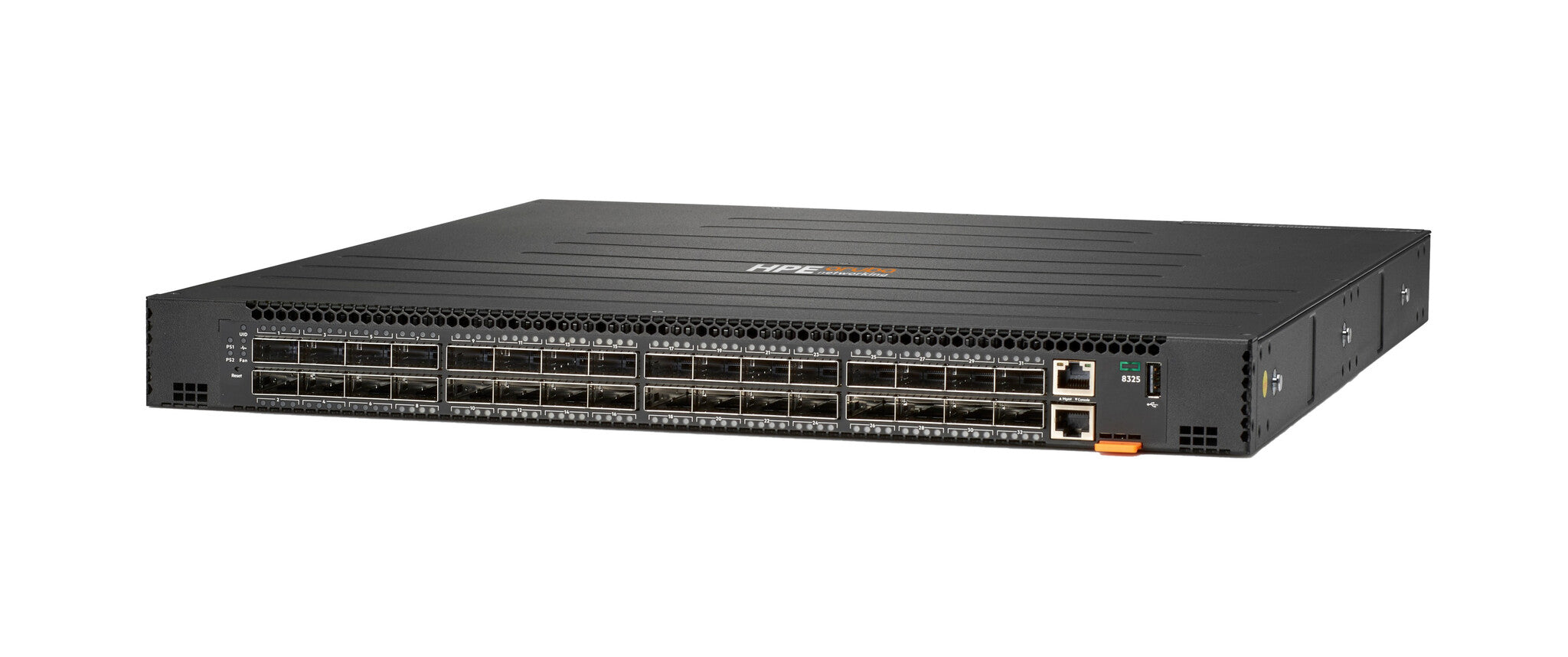

HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle

HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle

Hewlett Packard Enterprise
£36,709.99
Stock Available: 0
  • Managed L3
  • Quality of Service (QoS) support
  • 10G support
  • MAC address table: 98304 entries Switching capacity: 6400 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC Power supply included

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor. The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

What is new supporting point:
CX 8325H has two variations: • 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE • 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High-availability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock

Management features
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
QSFP28 ports quantity 32
Basic switching RJ-45 Ethernet ports type No
Network
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 32 MB
Jumbo frames support Yes
Maximum data transfer rate 100 Gbit/s
Throughput 2000 Mpps
Switching capacity 6400 Gbit/s
Supported data transfer rates 40/100 Gbps
MAC address table 98304 entries
Security
Authentication type RADIUS, TACACS+
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
MLD entries 4094
IPv6 multicast entries 4094
IPv4 multicast entries 4094
Multicast support Yes
Design
Airflow direction Front-to-back airflow
Number of fans 6 fan(s)
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 8000 MB
Internal memory 16000 MB
Processor frequency 2200 MHz
Built-in processor Yes
Power
Power consumption (max) 618 W
Power consumption (typical) 550 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 2
Redundant power supply (RPS) support Yes
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 2110 BTU/h
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 9.5 kg
Height 515.1 mm
Depth 438.4 mm
Width 43.2 mm
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85176990
