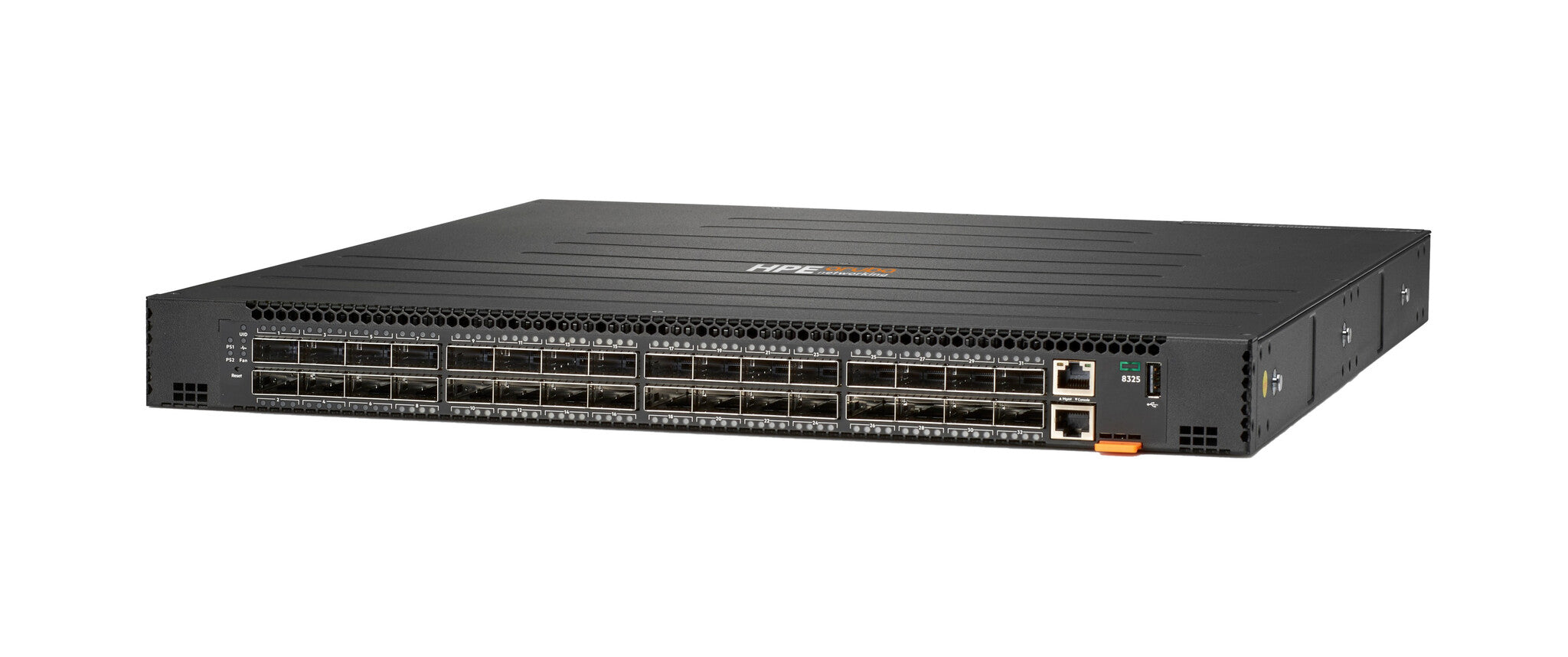

HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle
HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle

HPE Aruba Networking CX 8325-32C 32p 100G QSFP+/QSFP28 Front-to-Back 6 Fans 2 Power Supply Bundle

Hewlett Packard Enterprise
£40,343.99
Stock Available: 0
  • Managed L3
  • Quality of Service (QoS) support
  • 10G support
  • MAC address table: 98304 entries Switching capacity: 6400 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC Power supply included

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor. The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

What is new supporting point:
High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High-availability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations: • 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE • 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
QSFP28 ports quantity 32
Network
Networking standards IEEE 802.1D, IEEE 802.1Q
10G support Yes
Port mirroring Yes
Spanning tree protocol Yes
VLAN support Yes
Data transmission
MAC address table 98304 entries
Supported data transfer rates 1/10/25/40/100 Gbps
Switching capacity 6400 Gbit/s
Throughput 2000 Mpps
Maximum data transfer rate 100 Gbit/s
Jumbo frames support Yes
Packet buffer memory 32 MB
Security
DHCP features DHCP server
Access Control List (ACL) Yes
Authentication type RADIUS, TACACS+
Multicast features
Multicast support Yes
IPv4 multicast entries 4094
IPv6 multicast entries 4094
MLD entries 4094
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
Airflow direction Front-to-back airflow

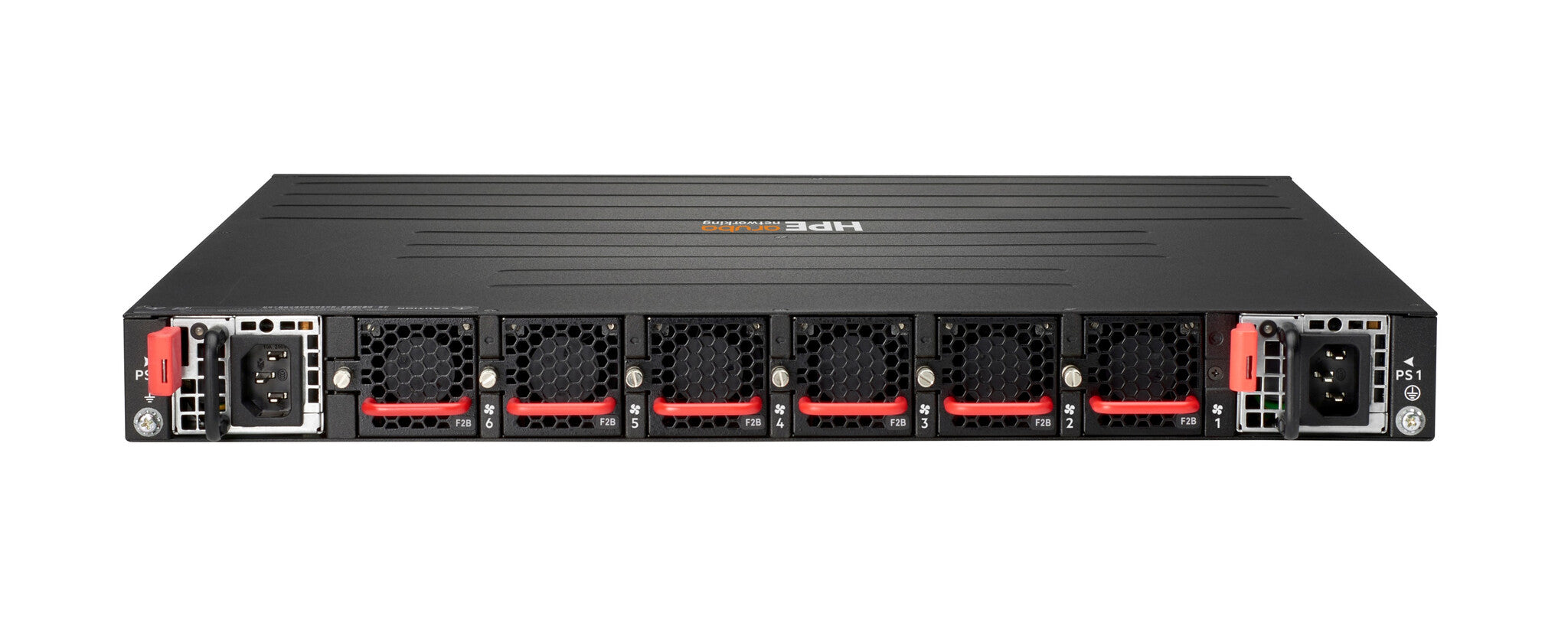

Number of fans 6 fan(s)
Performance
Built-in processor Yes
Processor frequency 2200 MHz
Internal memory 16000 MB
Flash memory 8000 MB
Power
Power source AC
Power supply included Yes
Redundant power supply (RPS) support Yes
Number of power supply units 2
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 550 W
Power consumption (max) 618 W
Power consumption note Maximum: 618 W, 2110 BTU/hr Idle: 143 W, 489 BTU/hr
Power supply note Includes 2 front-to-back power supplies (JL632A) with no additional open PS slots.
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Other features
Fan Field‑replaceable, hot‑swappable, and up to 6 fans
Performance management Industry-standard CLI with hierarchical structure, SNMP v2c/v3, sFlow (RFC 3176), remote monitoring (RMON)
Memory and processor CPU: 2.2 GHz Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash Packet Buffer: 32 MB
Weight (imperial) 9.48 kg (20.9 lbs)
I/O ports (32) 100G QSFP28 ports
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 2110 BTU/h
Weight & dimensions
Width 43.2 mm
Depth 438.4 mm
Height 515.1 mm
Weight 9.5 kg
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85176990
