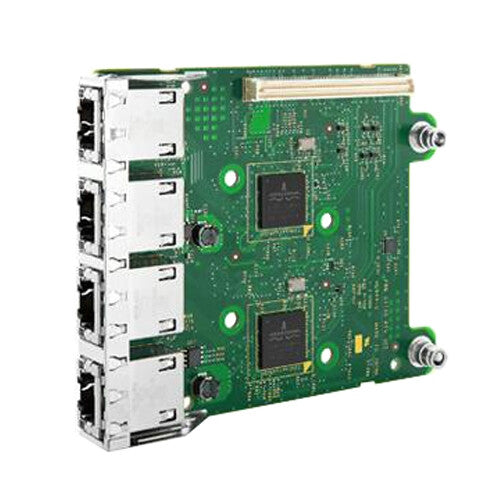

DELL 540-BBHG network card Internal Ethernet 1000 Mbit/s
Couldn't load pickup availability
- Wired
- PCI Express Ethernet
- 1000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server
The BCM5720 is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The Quad-Port Gigabit Network Daughter Card features quad triple-speed IEEE 802.3-compliant Media Access Controllers (MACs) with quad 10/100/1000 Ethernet transceivers (PHYs), PCI Express bus interface, and on-chip memory buffer in a single device. It's based on dual BCM5720 Controllers each providing two ports.
This product is compatible with the following systems:
- PowerEdge R620
- PowerEdge R630
- PowerEdge R720
- PowerEdge R720xd
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R820
- PowerEdge R920
- PowerVault DL4000
- PowerVault DR4100
- PowerVault DX6112 SN.
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5720 |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3 |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Compatible products | DELL PowerEdge R620, R630, R720, R720xd, R730, R730XD, R820, R920, PowerVault DL4000, DR4100, DX6112 SN |
| Product colour | Green |
| Component for | Server |
| Internal | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Receive Side Scaling (RSS) | Yes |
