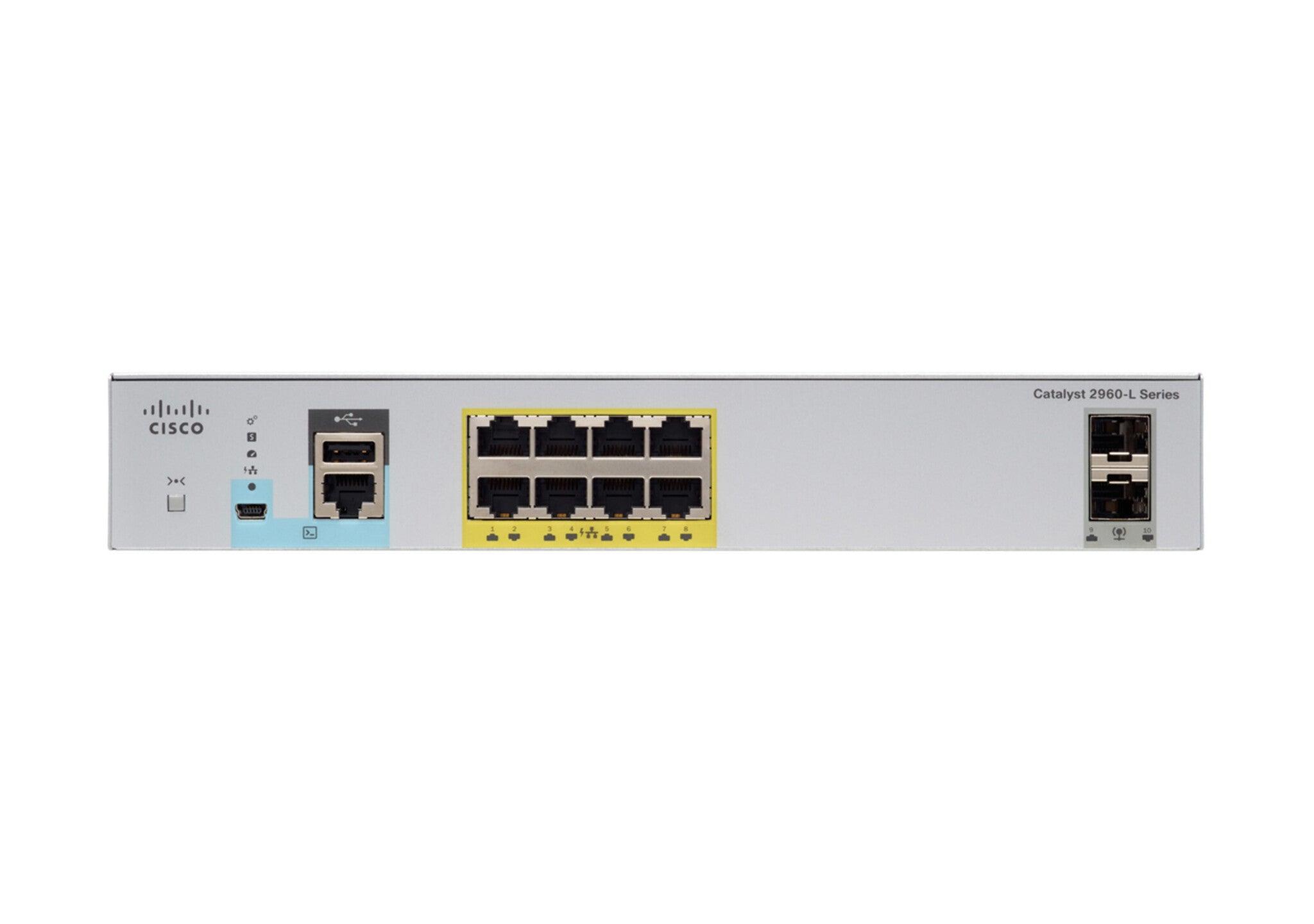

Cisco Catalyst 2960CX-8PC-L Network Switch, 8 Gigabit Ethernet Ports, 8 PoE+ Outputs, 124W PoE Budget, two 1 G SFP and two 1 G Copper Uplinks, Enhanced Limited Lifetime Warranty (WS-C2960CX-8PC-L)
£672.99
Couldn't load pickup availability
- ETHERNET PORT CONFIGURATION: 8 10/100/1000 Gigabit Ethernet ports; 8 PoE+ output ports; two 1 G SFP uplinks; two 1 G copper uplinks
- POE BUDGET: 124W
- FANLESS DESIGN: Silent operation
- INCLUDED SOFTWARE: Ships with LAN Base version of Cisco IOS Software
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 2960CX-8PC-L Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10GBASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9198 |
| Jumbo frames support | Yes |
| Forwarding rate | 17.9 Mpps |
| Switching capacity | 24 Gbit/s |
| Security | |
|---|---|
| IGMP snooping | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | ICMP, ARP, BOOTP, OSPF, DHCP |
| Data link protocols | UDP, TFTP, IP, TCP, FTP |
| Management protocols | Telnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS |
| Design | |
|---|---|
| Safety | UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825 |
| Market segment | Business |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 569530 h |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (typical) | 24.5 W |
| Input current | 1.5 - 3.25 A |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 124 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |

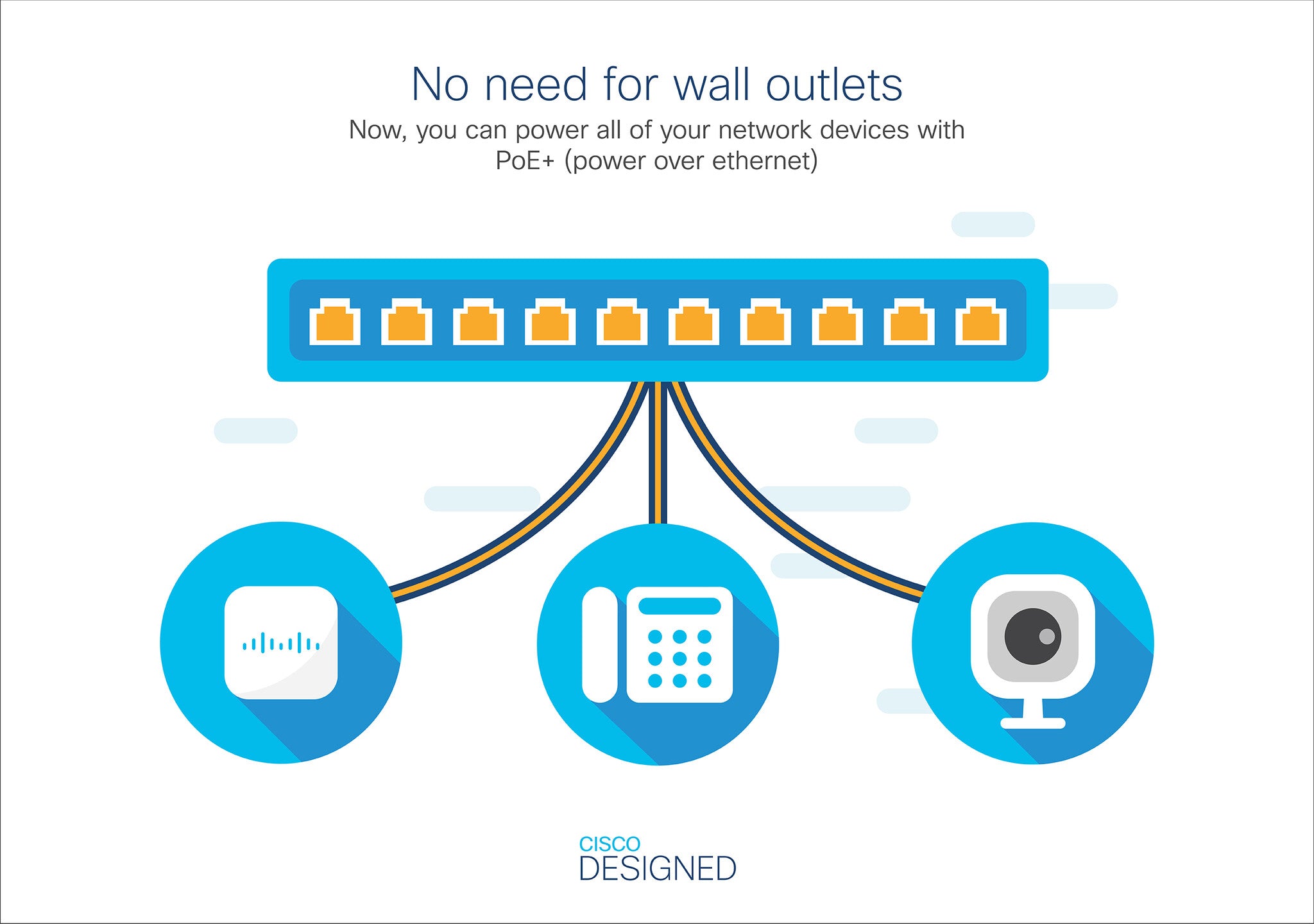

| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 648.3 BTU/h |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.27 kg |
| Height | 44.4 mm |
| Depth | 238 mm |
| Width | 269 mm |
| Packaging data | |
|---|---|
| Package weight | 2.27 kg |
| Package height | 160.3 mm |
| Package depth | 349.2 mm |
| Package width | 327.7 mm |
| Certificates | |
|---|---|
| Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
