Allied Telesis AT-IE220-6GHX-980 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£929.99
Couldn't load pickup availability
- Managed L2 Web-based management SNMPv1/v2c/v3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 4
- 10G support
- MAC address table: 16000 entries Switching capacity: 48 Gbit/s
- Access Control List (ACL)
- DC/PoE Power over Ethernet (PoE)

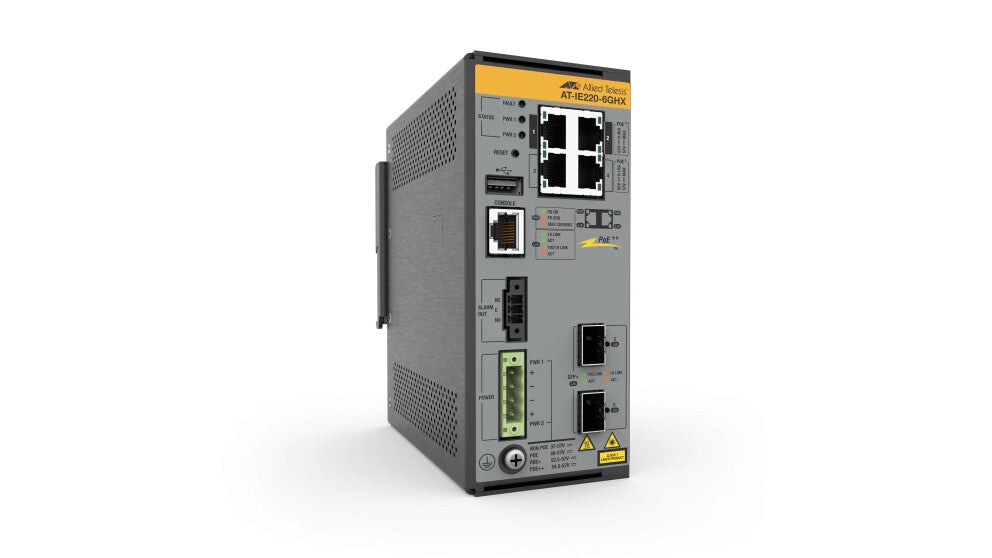

The Allied Telesis IE220-6GHX managed switch features 4x 10/100/1000T copper ports and 2x 1G/10G SFP+ uplinks. Built for enduring performance in harsh environments, this switch is ideal for OT networks and outdoor installations.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Forwarding rate | 35.7 Mpps |
| Switching capacity | 48 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| Authentication | MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
|---|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Housing material | Aluminium, Metal |
| Product colour | Grey |
| Rack mounting | No |
| Performance | |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Power | |
|---|---|
| Power consumption (max) | 17.4 W |
| Input voltage | 37 - 57 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.57 kg |
| Height | 155 mm |
| Depth | 137 mm |
| Width | 65 mm |
