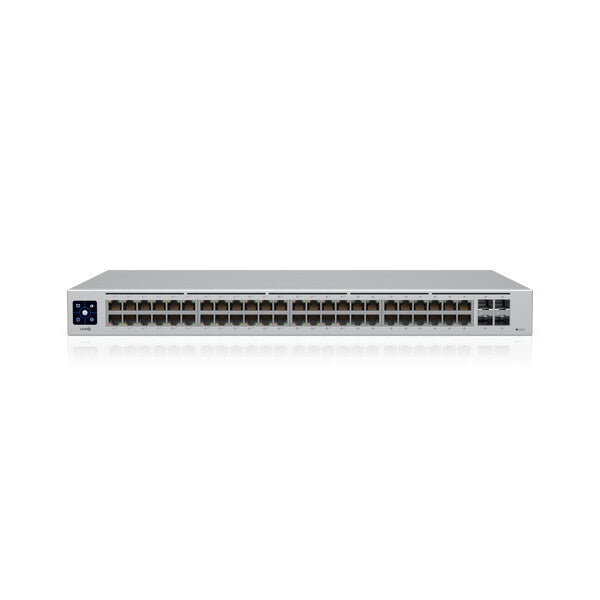

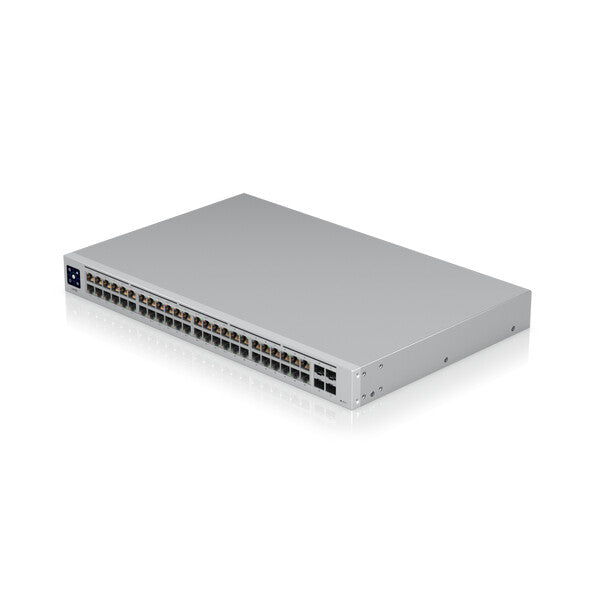

Ubiquiti UniFi USW-48-POE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel
iFrame
£572.99
Couldn't load pickup availability
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Switching capacity | 104 Gbit/s |
| Security | |
|---|---|
| Authentication type | RADIUS |
| Design | |
|---|---|
| LED indicators | Activity, Link, Speed |
| Product colour | Stainless steel |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Fanless | Yes |
| Power | |
|---|---|
| Power consumption (max) | 45 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.52 kg |
| Height | 43.7 mm |
| Depth | 285 mm |
| Width | 442.4 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
