Ubiquiti UniFi Pro HD 24 Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Grey
iFrame
£571.99
Couldn't load pickup availability
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (22) 2.5 GbE, (2) 10 GbE ports
- (4) 10G SFP+ ports
- DC power backup ready
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC/DC |
| SFP+ module slots quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Network | |
|---|---|
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| IPv4 routes | 12000 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1x |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 171.12 Mpps |
| Switching capacity | 230 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Display type | LCM |
| LED indicators | Link, Speed, Status |
| Reset button | Yes |
| Housing material | SGCC |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 60 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 102.36 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.2 kg |
| Height | 44 mm |
| Depth | 285 mm |
| Width | 442.4 mm |
| Packaging content | |
|---|---|

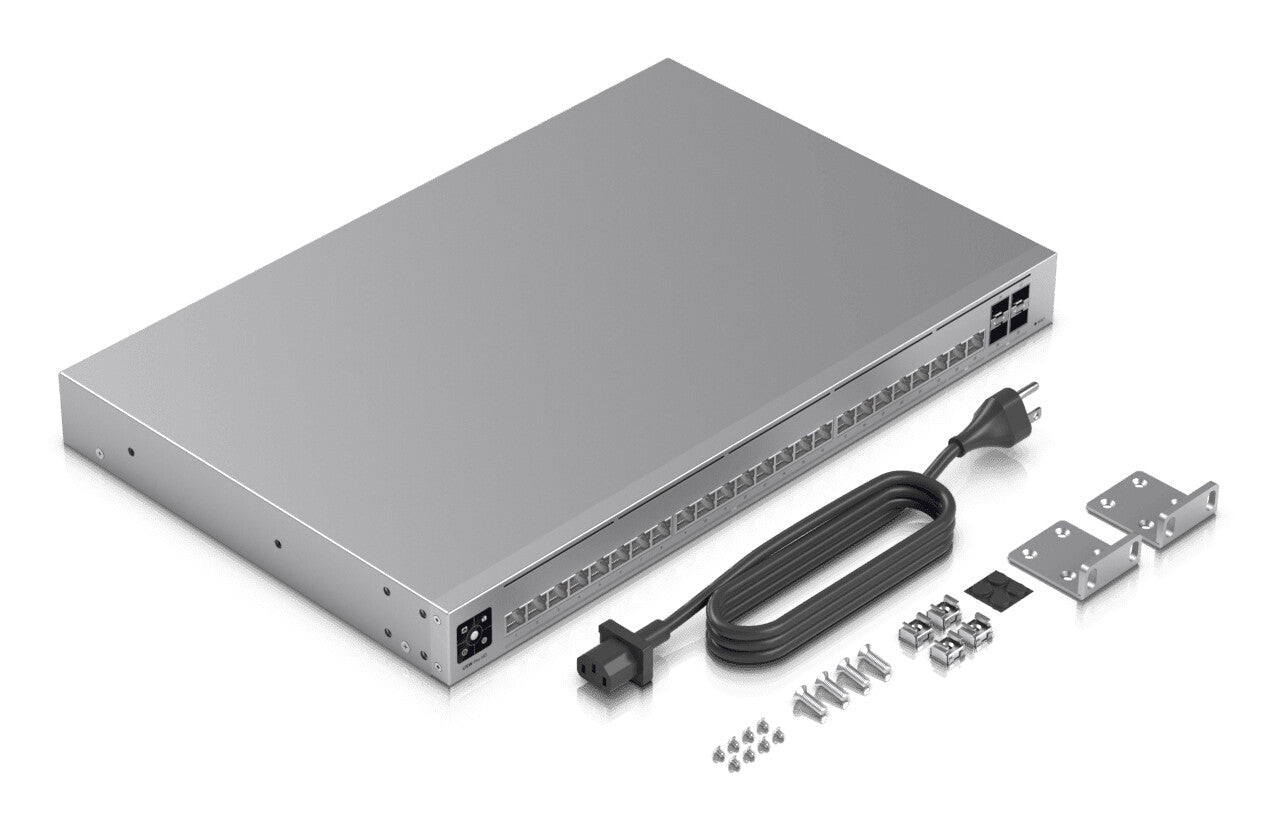

| Rack mount kit | Yes |
| Cables included | Power |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
