Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
iFrame
£383.99
Couldn't load pickup availability

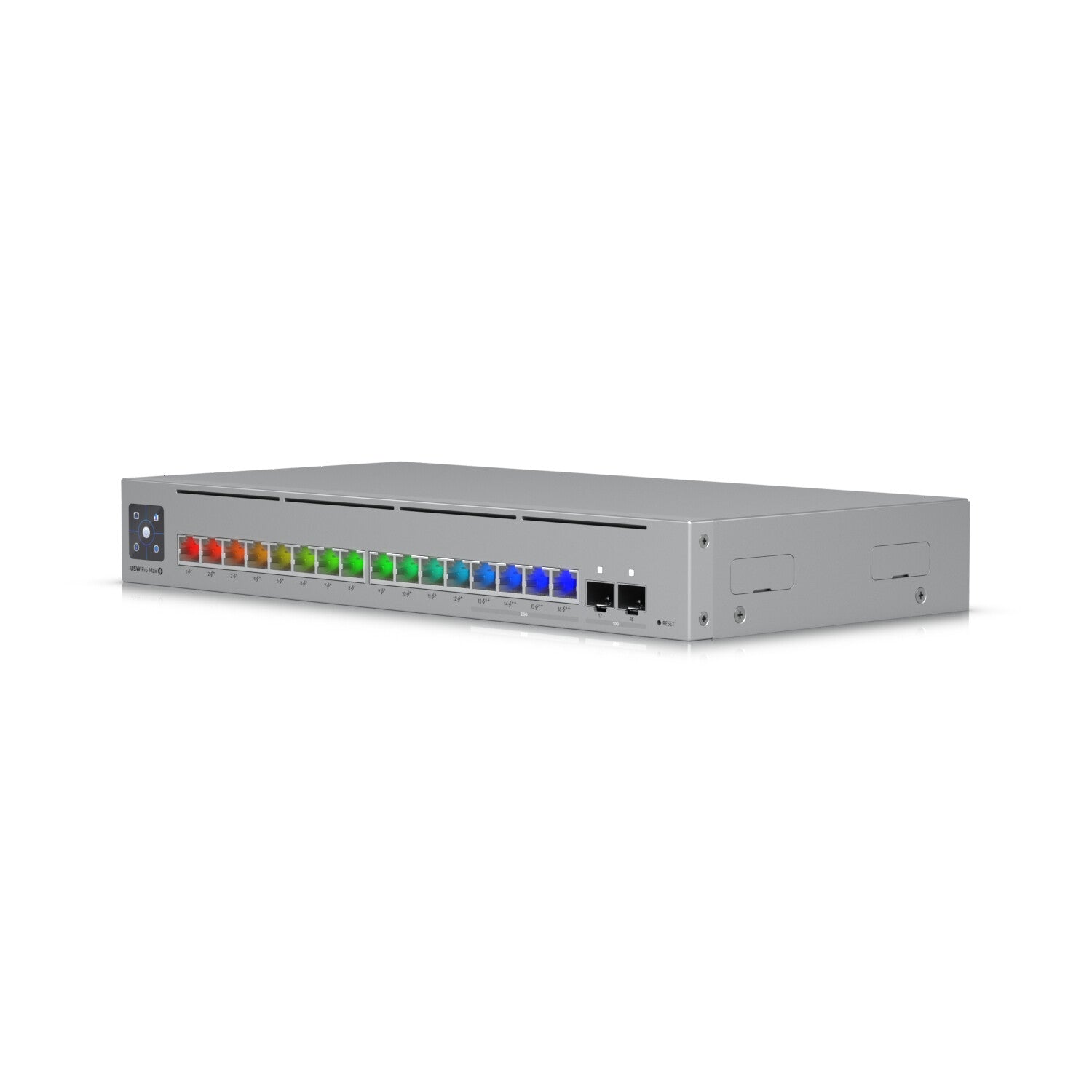

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| SFP+ module slots quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
|---|---|
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1x |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Forwarding rate | 62.496 Mpps |
| Switching capacity | 84 Gbit/s |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP snooping, DHCPv6 relay |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Display type | LCM |
| LED indicators | System |
| Reset button | Yes |
| Housing material | Steel |
| Product colour | Grey |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 30 W |
| DC input voltage | 44 - 57 V |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) power per port | 15 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 43.7 mm |
| Depth | 160 mm |
| Width | 325.1 mm |

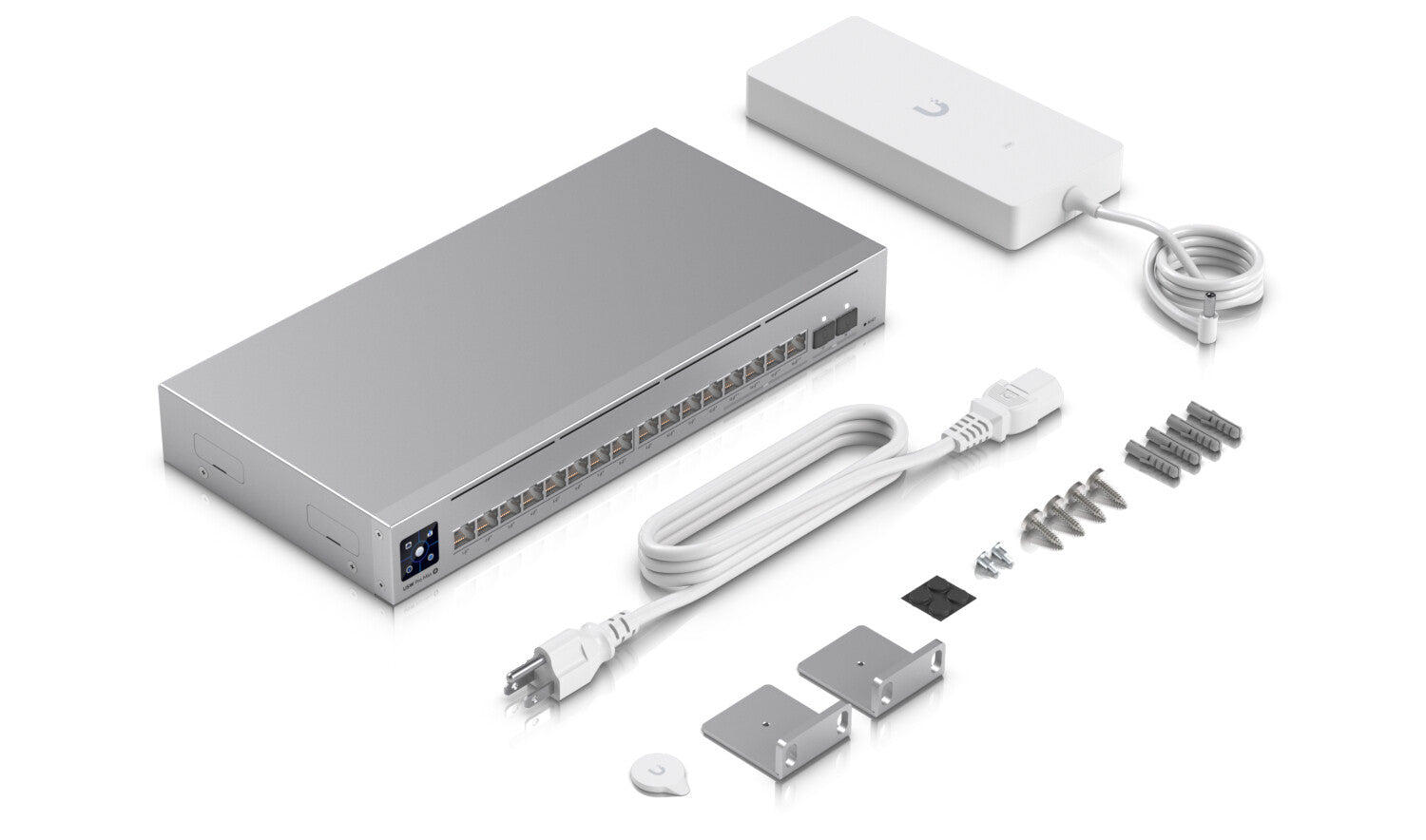

| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | Power |
| Packaging data | |
|---|---|
| Mounting brackets included | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
