Teltonika SWM282 Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
iFrame
£288.99
Couldn't load pickup availability
- Managed L2+ Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8000 entries Switching capacity: 56 Gbit/s
- Rack mounting
- AC Power over Ethernet (PoE)

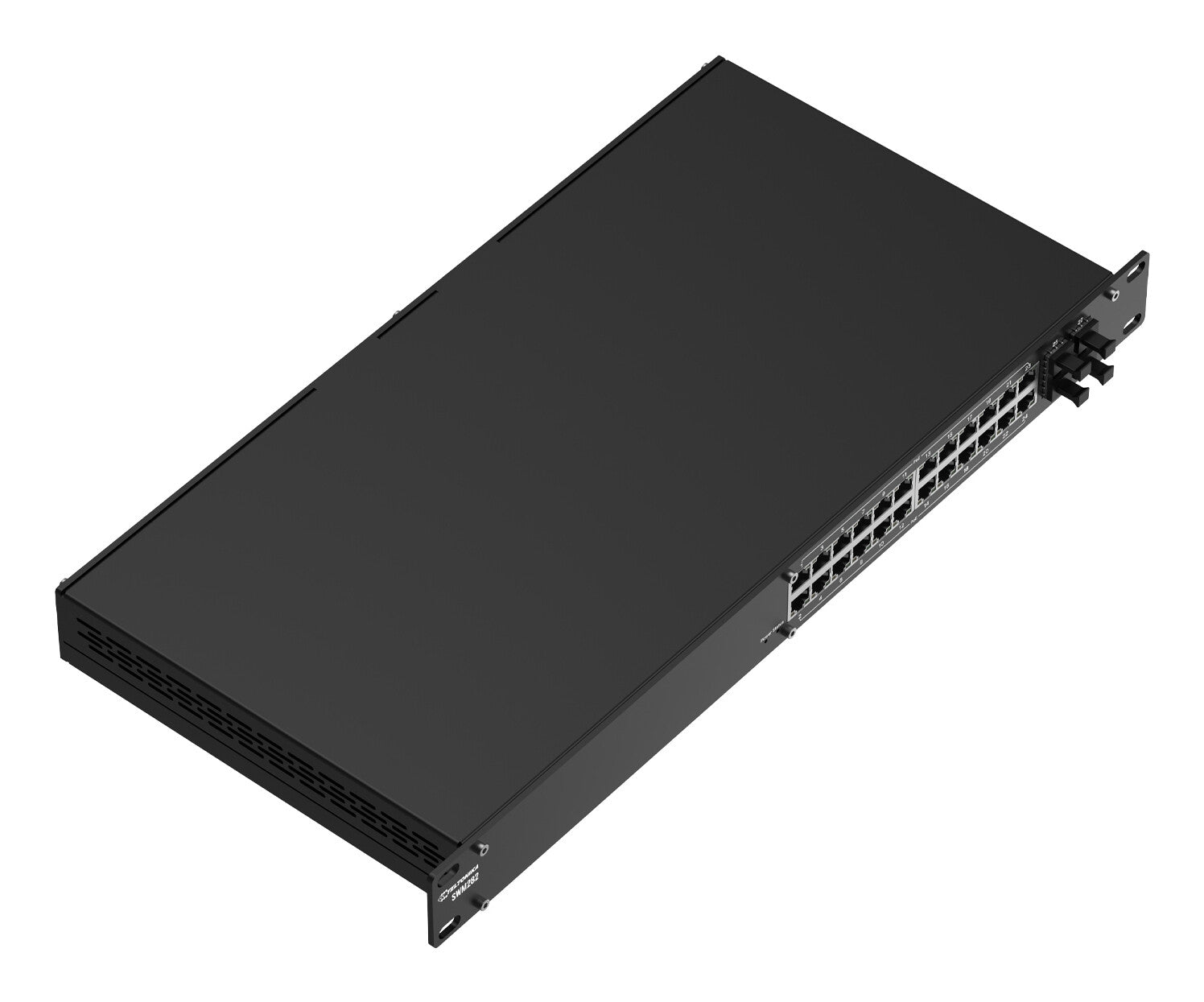

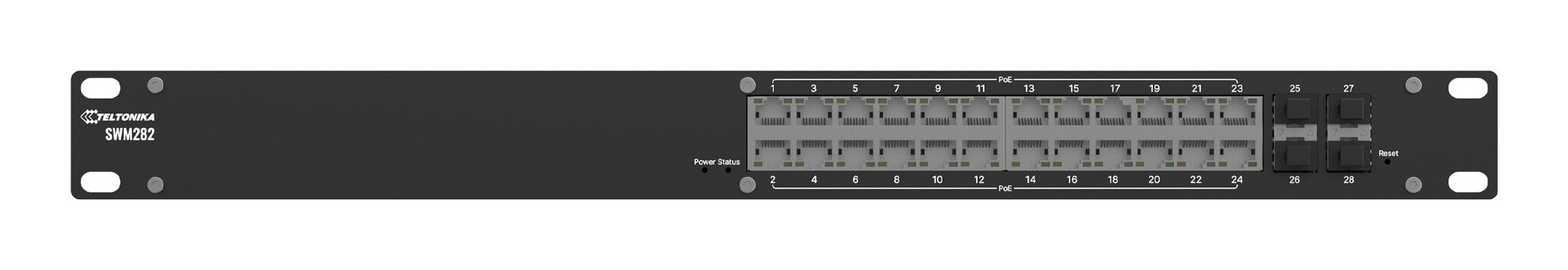

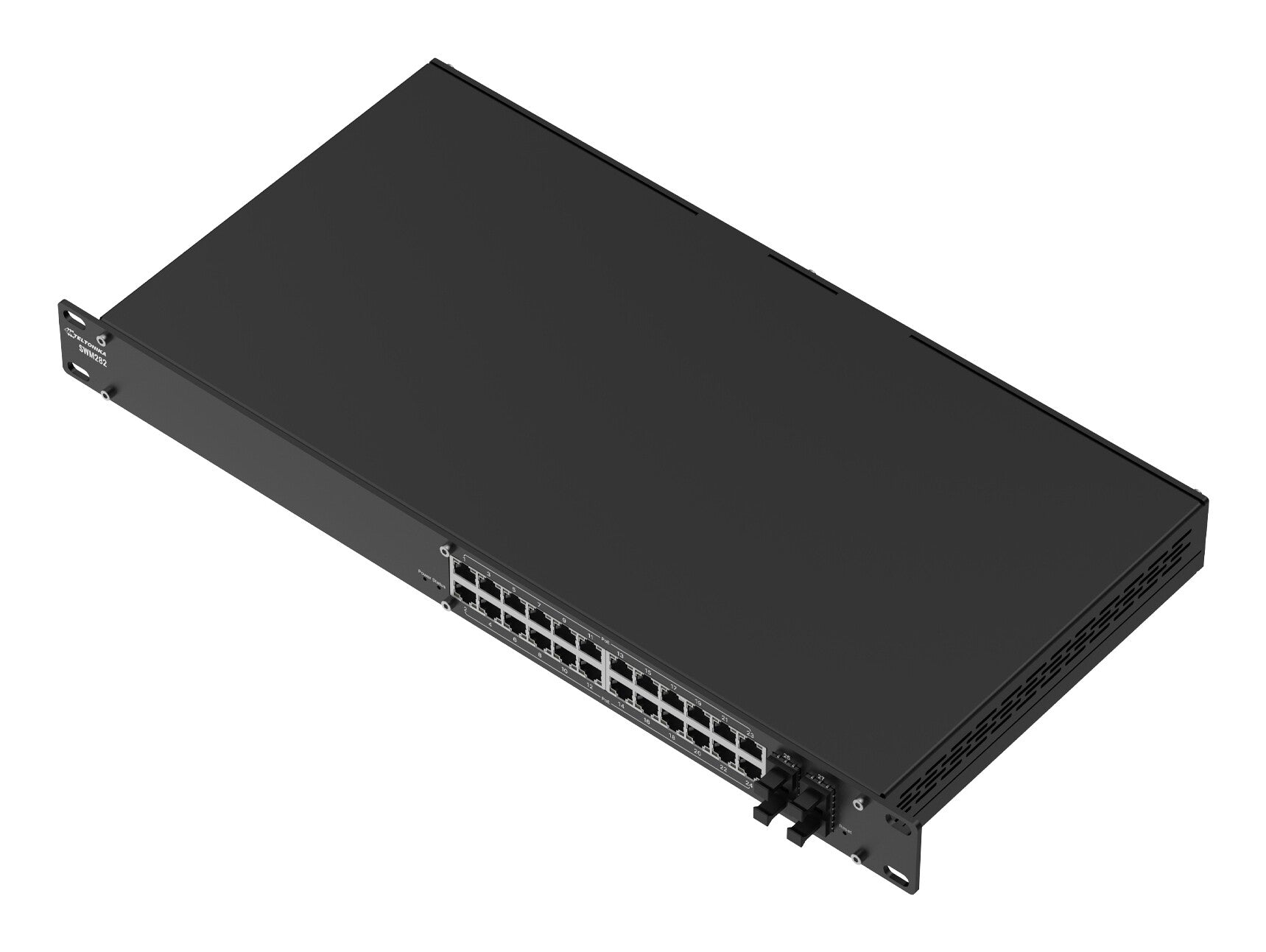

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|

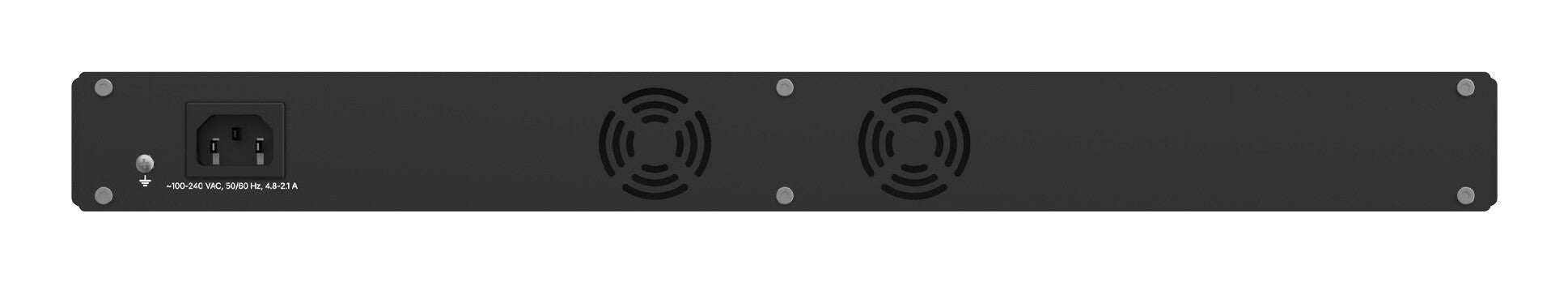

| Power connector | AC-in jack |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.512 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 83.33 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WFQ, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| DHCP features | DHCP server, DHCP client, DHCPv6 client |
| Design | |
|---|---|
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 500 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 330 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | No |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 300 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) modes | Alternative A |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.29 kg |
| Height | 44 mm |
| Depth | 234 mm |
| Width | 483 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
| Certificates | |
|---|---|
| Compliance certificates | CE, UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC) |
