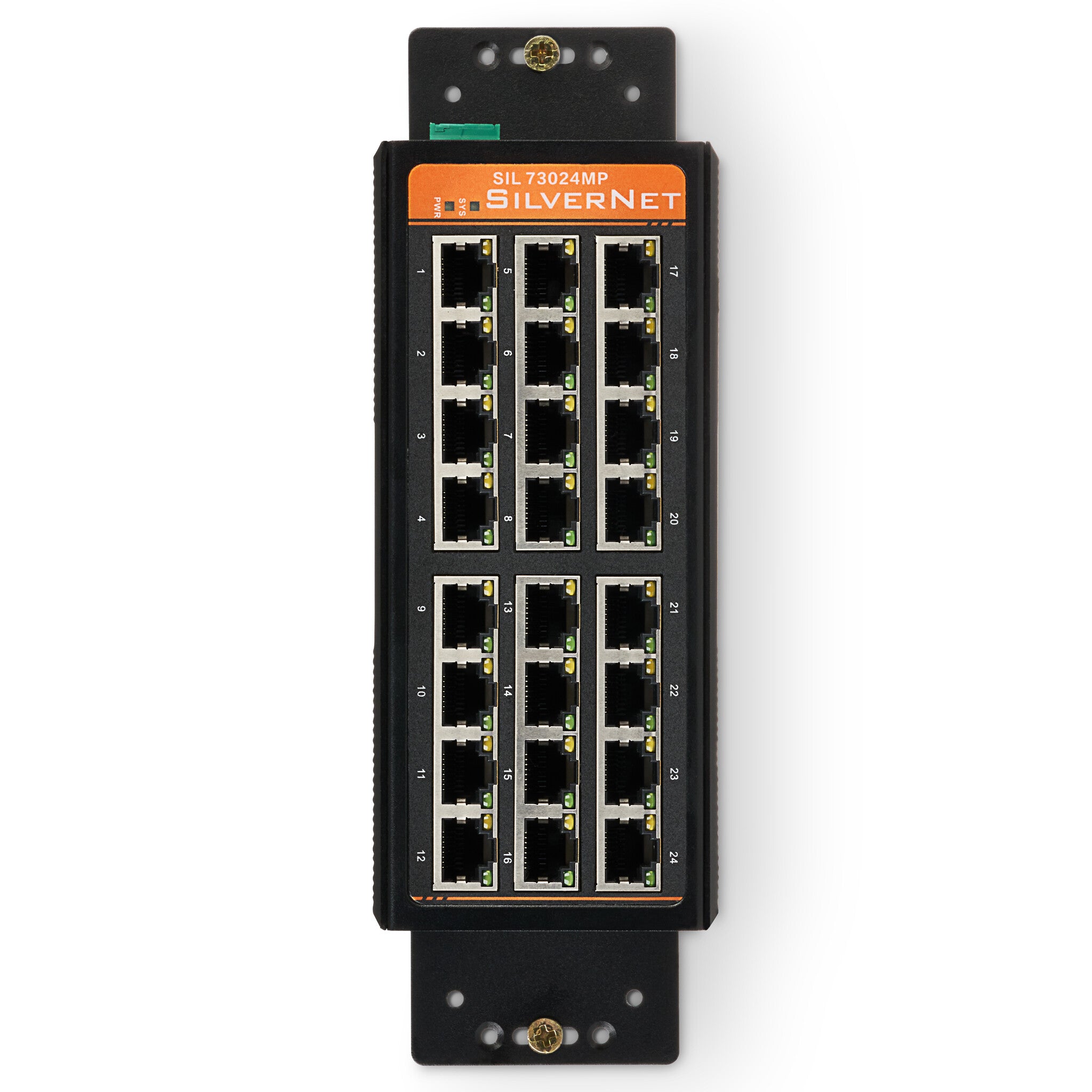

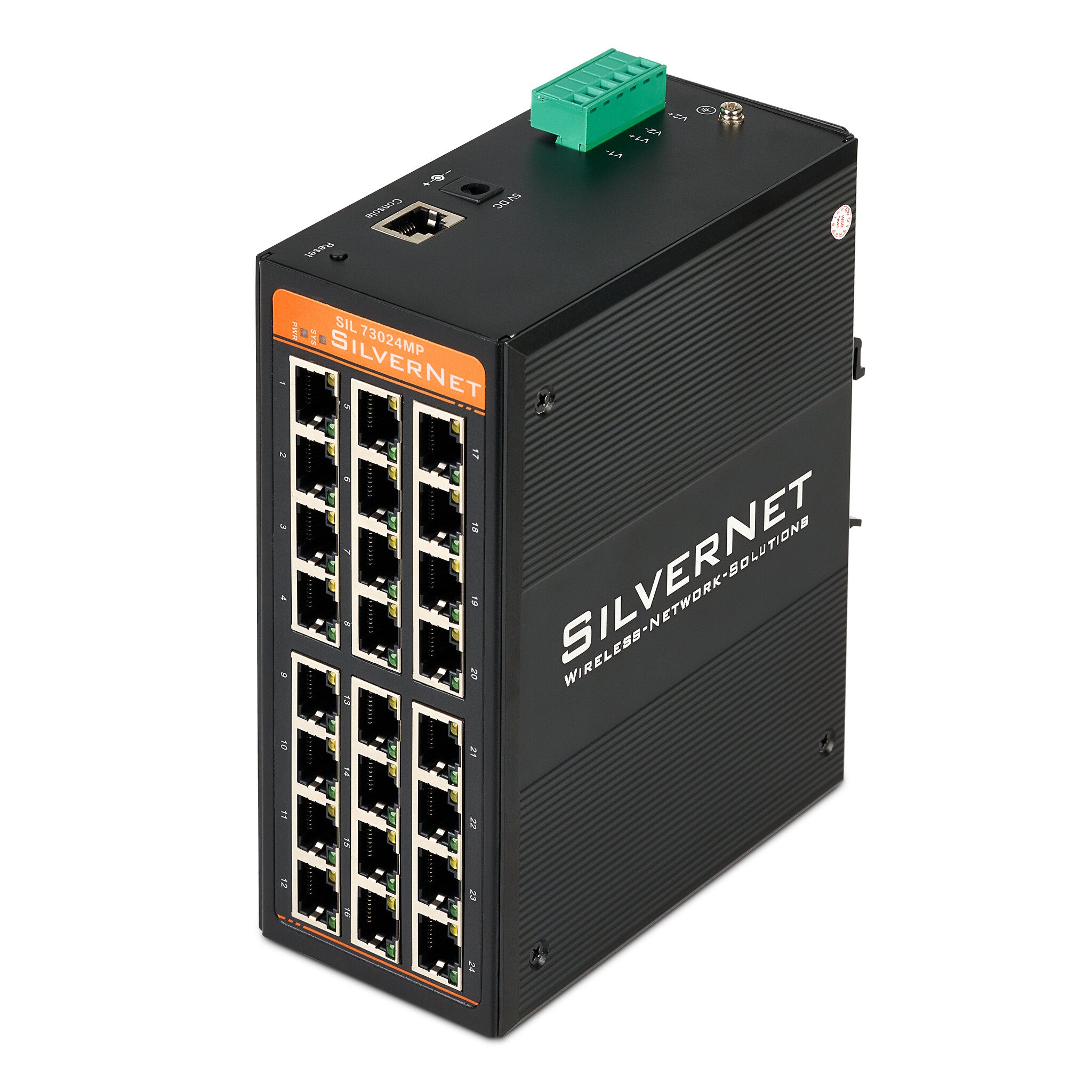

SilverNet SIL 73024MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£589.99
Couldn't load pickup availability
- 24 x 10/100/1000Base-T
- 16 x 30W PoE ports
- 40Gbps bandwidth
- IEEE803.af/at compliant PoE+
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full-duplex
- Store and forward
- Max table size: 16K
- Wide range power design ( 10~58VDC )
- Operating temperature (-40 ̊C ~ +85 ̊C)
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection

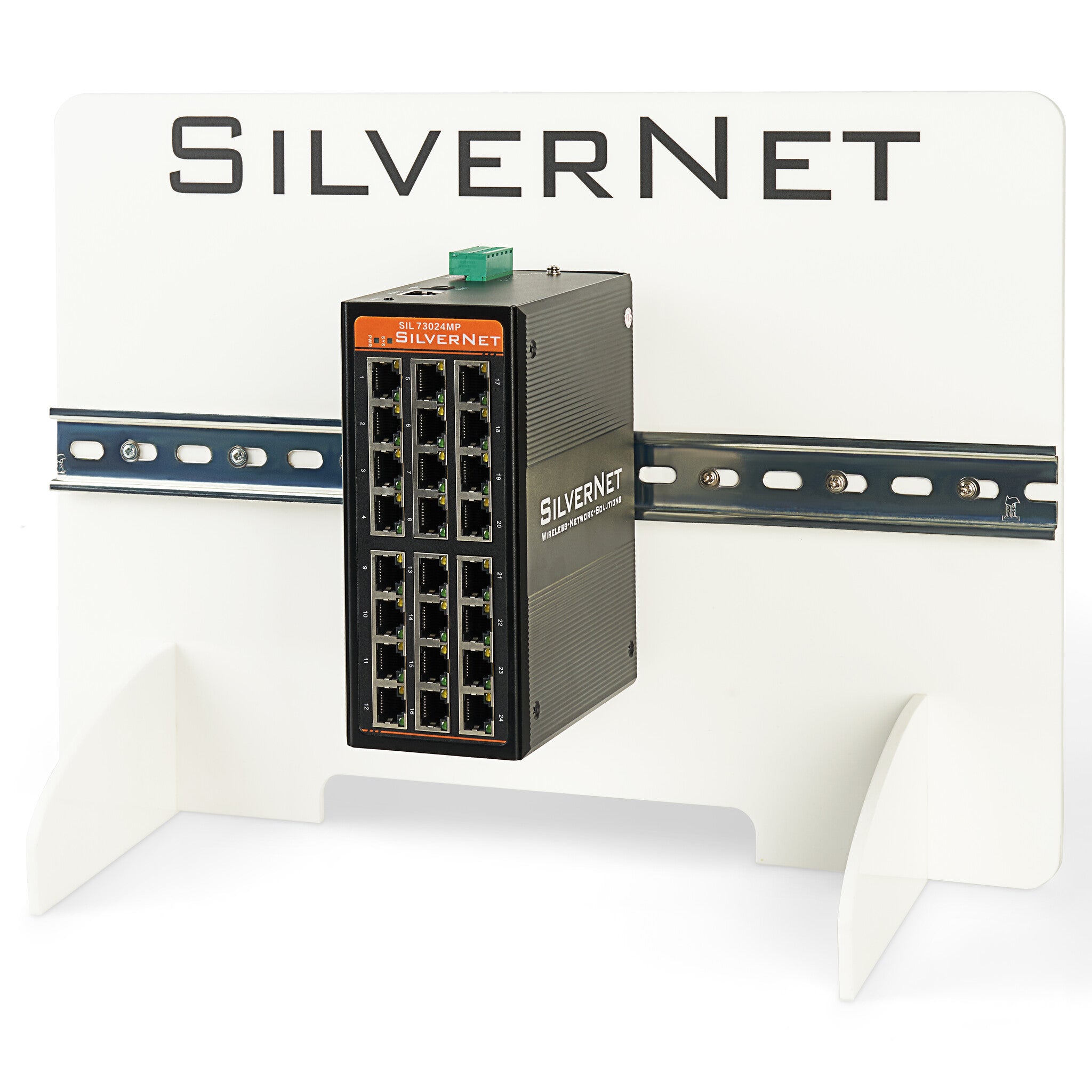

- DIN rail and Wall mounted installation
- Dual 48vDC input for power supply redundancy
The SIL 73024MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, boasting 24 x 10/100/1000Base-T ports, with 16 capable of providing PoE+.
Like its Series 7 counterparts, this switch offers smart features such as a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.
It serves as a flexible solution for extending Ethernet across distances through fiber daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. Additionally, it functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments.
Complying with the IEEE802.3af/at standard, the switch facilitates Power-over-Ethernet delivery via twisted pair cables.
| Management features | |
|---|---|
| User operation log | Yes |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4095 |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Latency (1 Gbps) | 7 µs |
| Latency (10-100 Mbps) | 7 µs |
| Store-and-forward | Yes |
| Forwarding rate | 29.76 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| IP-MAC-Port binding | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| LED indicators | Data, LAN, PoE, Power |
| Reset button | Yes |
| Temperature sensor | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | No |
| Performance | |
|---|---|
| Minimum system requirements | Web Browser |
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power protection features | Overload, Reverse polarity |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 7 W |
| DC input voltage | 9 - 56 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | No |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 480 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.15 kg |
| Height | 160 mm |
| Depth | 140 mm |
| Width | 70 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | RS-232 |
| Packaging data | |
|---|---|
| Package weight | 1.4 kg |
| Package height | 95 mm |
| Package depth | 205 mm |
| Package width | 215 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | CEFCC 15 AIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8IEC 60068-2-27IEC 60068-2-32IEC 60068-2-6EN50121-4UKCA BS EN 55032:2015/A11:2020UKCA BS EN IEC 61000-3-2:2019+A1:2021UKCA BS EN 61000-3-3:2013/A2:2021UKCA BS EN 55035:2017/A11:2020UKCA BS EN IEC 62368-1:2020+A11:2020UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
