SilverNet SIL 716S8C4M network switch Managed L3 Gigabit Ethernet (10/100/1000)
Couldn't load pickup availability
- 16 x SFP, 8 x RJ45 / SFP Combo, 4 x 10G SFP+ Ports
- Up to 12Mbit Cache, supporting up to 4k Video Traffic
- 128Gbps Bandwidth
- 10Kbytes Maximum Packet Length
- 16K MAC Address Table
- Store and Forward (Full/Half Duplex Mode)
- <7μs Response Time
- Supports IEEE802.3, u, z, ab, x, az, ah
- Supports IEEE802.1X + IEEE802.1Q

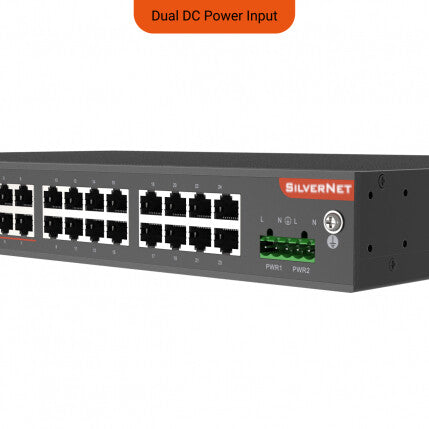

- Dual Redundant Power Supply
- Wide range power design (15~56VDC)
- Operating temperature (-40°C ~+75°C)
- Overcurrent Protection
- Reverse Polarity Protection
- Ethernet ESD protection
- IP40 Protection
- High Strength Metal Enclosure

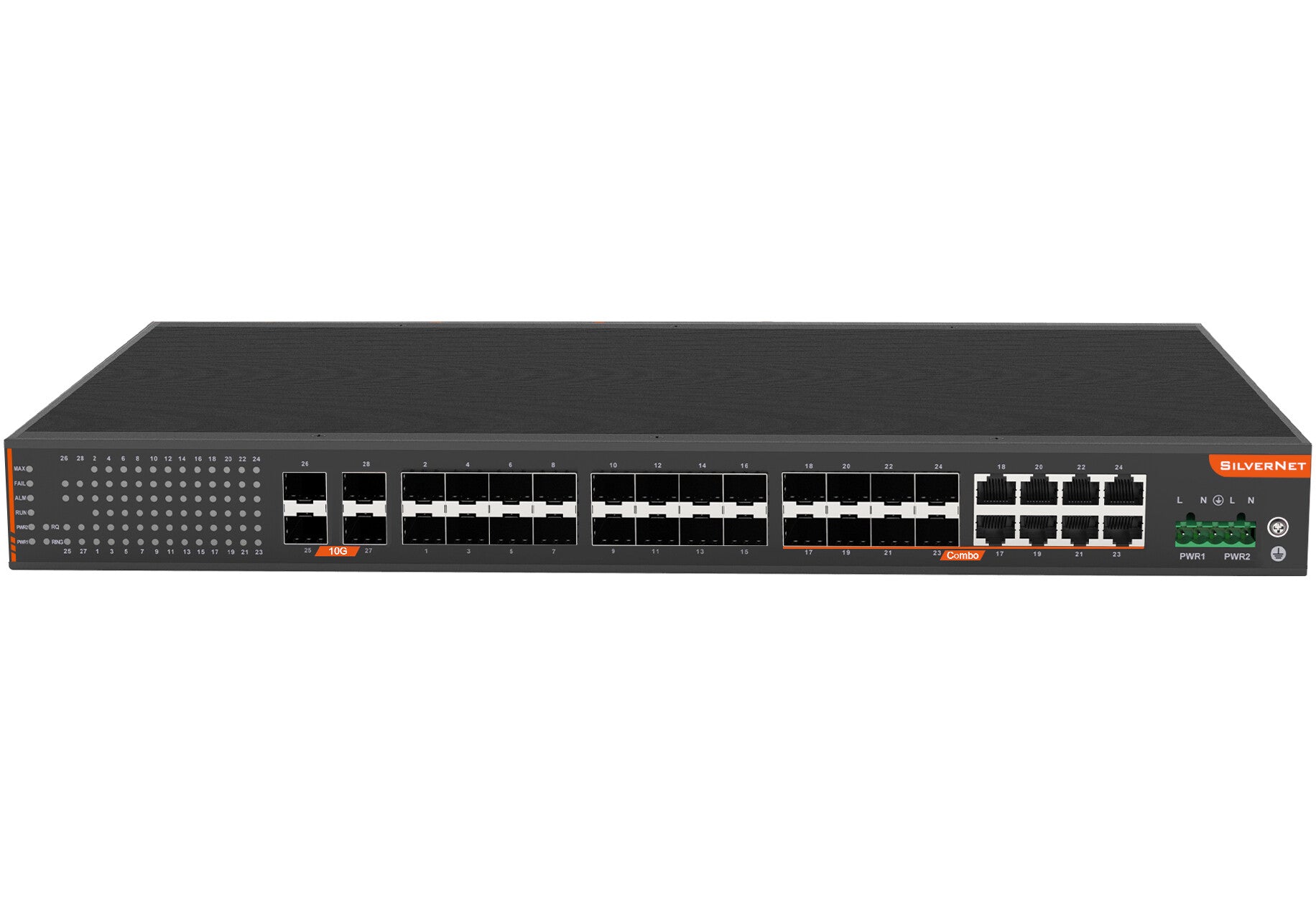

The SIL 716S8C4M is a rack-mountable Layer 3 Managed Network Switch tailored for industrial applications. Its sleek Top-of-Rack design ensures efficient use of space in rack cabinets, making it perfect for deployment in enterprise, ITS, and utility market networks.
This switch provides 16 Gigabit SFP Downlink Ports, 8 RJ45+SFP Combo Ports, and 4 10Gb SFP Uplink Ports.
Its fanless design employs natural cooling, promoting efficient heat dissipation and allowing for increased power consumption elsewhere, thus enhancing processing power.
For environments where space optimization and interconnectivity are crucial, such as large-scale enterprise networks, these switches are ideal. They boast an extended temperature range, ensuring sustained high performance in unconditioned outdoor cabinets and industrial settings. Housed in a durable metal enclosure, they are built to endure harsh conditions.
The SilverNet 716S8C4M is reliable and sturdy, adhering to IEEE802.3, u, z, ab, x, az, ah standards, as well as IEEE802.1X + 802.1Q.
Its fibre optics ports include a modular SFP slot, compatible with any MSA-compliant 1.25Gbps SFP or 10Gbps SFP+ transceiver.
| Management features | |
|---|---|
| MIB support | Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | Terminal block (2-pin) |
| Combo SFP ports quantity | 8 |
| Installed SFP+ modules quantity | 4 |
| Installed SFP modules quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fast Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-X, 1000BASE-X |
| Data transmission | |
|---|---|
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | HTTPS, SNMPv3, SSL/TLS |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 4096 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| International Protection (IP) code | IP40 |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Housing material | Aluminium |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 250000 h |
| Power | |
|---|---|
| Power protection features | Over current, Reverse polarity |
| Power consumption (max) | 24 W |
| DC input voltage | 9 - 56 V |
| AC input voltage | 110 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Operational conditions | |
|---|---|
| Heat dissipation | 75 BTU/h |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.8 kg |
| Height | 45 mm |
| Depth | 300 mm |
| Width | 400 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Packaging data | |
|---|---|
| Package weight | 3.3 kg |
| Package height | 80 mm |
| Package depth | 495 mm |
| Package width | 393 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | IEC60068-2-27IEC60068-2-6IEC60068-2-31EN 60950-1UL 60950-1CSA C22.2 No.60950-1UL 508 |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
