SilverNet SIL 716E8C4M network switch Managed L3 Gigabit Ethernet (10/100/1000)
Couldn't load pickup availability
- 16 x GE, 8 x RJ45 / SFP Combo, 4 x 10G SFP+ Ports
- Up to 12Mbit Cache, supporting up to 4k Video Traffic
- 128Gbps Bandwidth
- 10Kbytes Maximum Packet Length
- 16K MAC Address Table
- Store and Forward (Full/Half Duplex Mode)
- <7μs Response Time
- Supports IEEE802.3, u, z, ab, x, az, ah
- Supports IEEE802.1X + IEEE802.1Q

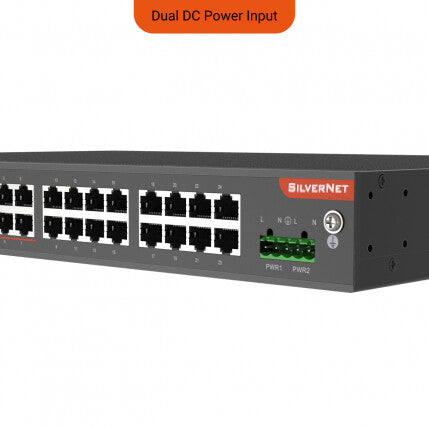

- Dual Redundant Power Supply
- Wide range power design (15~56VDC)
- Operating temperature (-40°C ~+75°C)
- Overcurrent Protection
- Reverse Polarity Protection
- Ethernet ESD protection
- IP40 Protection
- High Strength Metal Enclosure

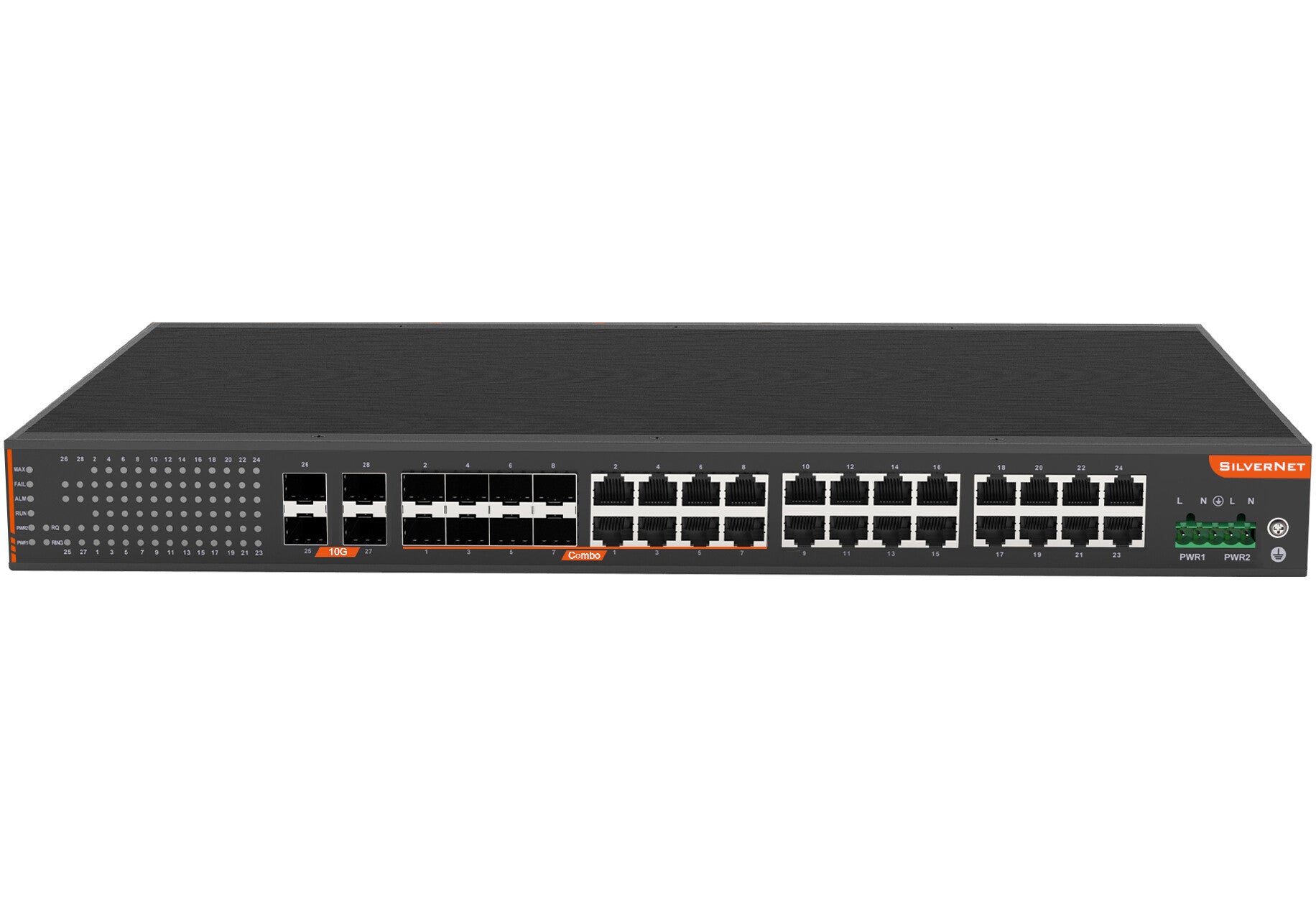

The SIL 716E8C4M is a rack mountable Layer 3 Network Switch designed for industrial use. The sleek Top-of-Rack design enables efficient spacing in rack cabinets, making it ideal for installation in enterprise, ITS and utility market networks.
The SIL 716E8C4M offers 16 x Gigabit Ethernet Downlink Ports, 8 x RJ45+SFP Combo Ports and 4 x 10Gb SFP Uplink Ports.
The fanless design of the SIL 716E8C4M utilises natural cooling and ensures proficient heat dissipation. This allows more power consumption to be used elsewhere, increasing processing power.
In areas where effective use of space and interconnectivity are vital, for example large scale enterprise networks, these Switches are ideal. They have an extended temperature range which enables them to continue their high-performance in unconditioned outdoor cabinets and industrial environments. Encased in a high strength metal enclosure, these Switches are designed to withstand the elements.
Reliable and robust, the SilverNet 716E8C4M is fully compliant with the IEEE802.3, u, z, ab, x, az, ah standards, as well as IEEE802.1X + 802.1Q.
The fibre optics ports feature a modular SFP slot suitable for any kind of MSA-compliant pluggable 1.25Gbps SFP transceiver or 10Gbps SFP+ transceiver.
| Management features | |
|---|---|
| MIB support | Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | Terminal block (2-pin) |
| Combo SFP ports quantity | 8 |
| Installed SFP+ modules quantity | 4 |
| Installed SFP modules quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Fast Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Latency (10 Gbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10-100 Mbps) | 7 µs |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMPv3, SSL/TLS |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 4096 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| International Protection (IP) code | IP40 |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Housing material | Aluminium |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 250000 h |
| Power | |
|---|---|
| Power protection features | Over current, Reverse polarity |
| Power consumption (max) | 24 W |
| DC input voltage | 9 - 56 V |
| AC input voltage | 110 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Operational conditions | |
|---|---|
| Heat dissipation | 75 BTU/h |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.8 kg |
| Height | 45 mm |
| Depth | 300 mm |
| Width | 400 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Packaging data | |
|---|---|
| Package weight | 3.3 kg |
| Package height | 80 mm |
| Package depth | 495 mm |
| Package width | 393 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | IEC60068-2-27IEC60068-2-6IEC60068-2-31EN 60950-1UL 60950-1CSA C22.2 No.60950-1UL 508 |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
