£154.99

Stock Available: 0
  • 2.5G/10G Multi-Gig speeds: 4x 2.5GBASE-T RJ45 ports supporting speeds: 2.5G, 1G, and 100Mb. 2x 10GBASE-T RJ45 ports supporting five speeds: 10G, 5G, 2.5G, 1G, and 100Mb. Provides 60Gbps switching capacity
  • Plug and play: No complicated setup required. The QSW-2104-2T-R2 automatically sets the best transfer speeds based on connected devices. There’s no need to upgrade or replace older hardware immediately

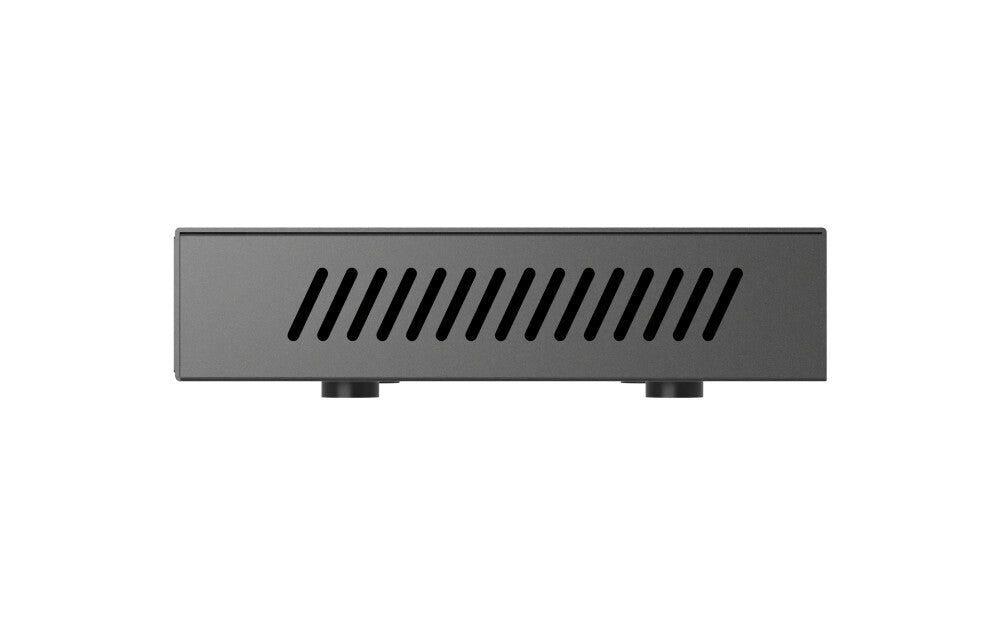

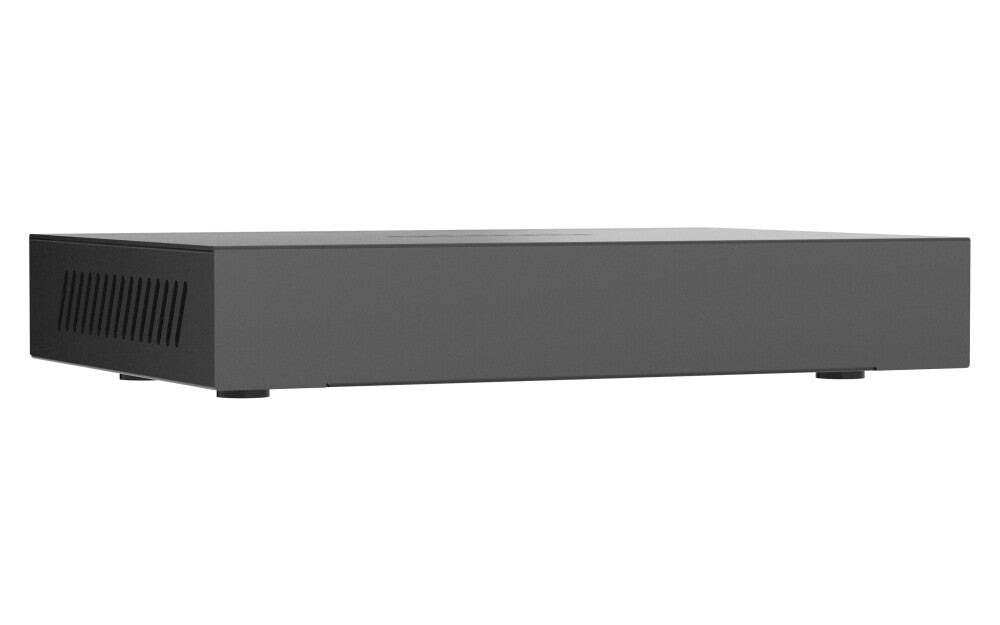

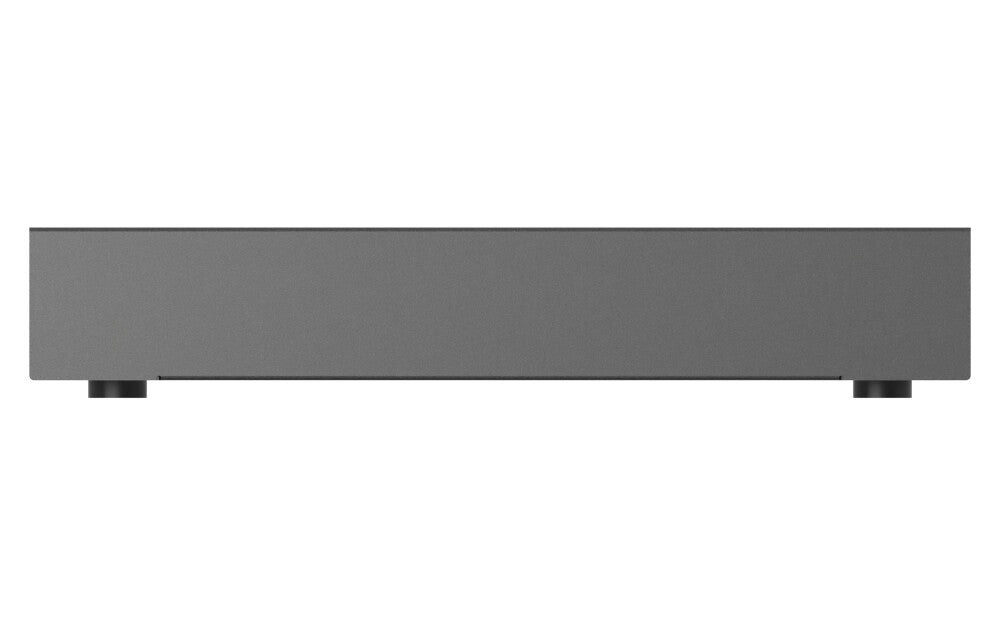

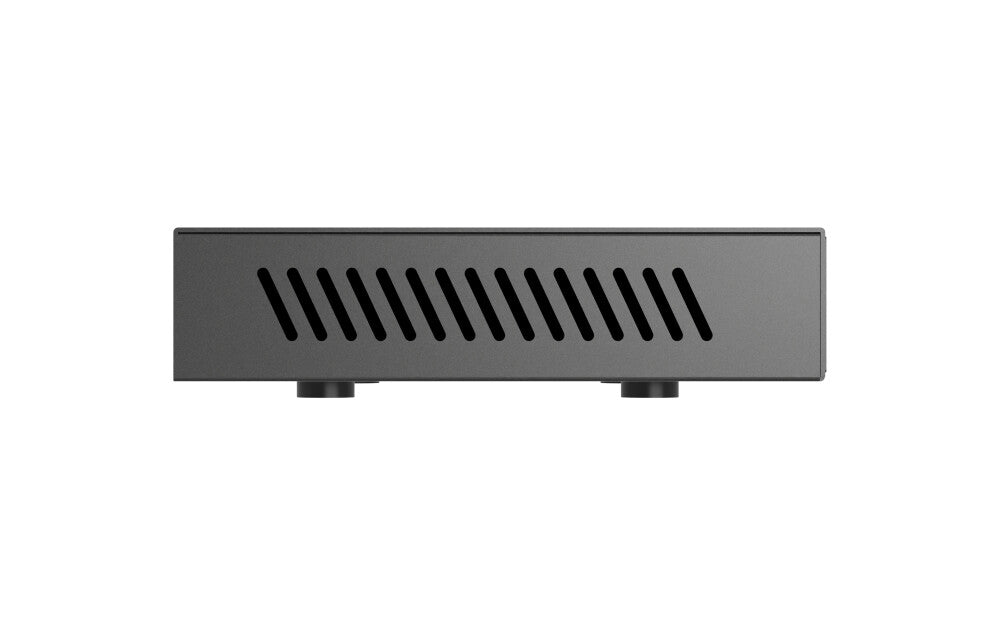

  • Desktop design: Light, compact, and compliant with EEE low-power energy-saving and EMC Class B, ideal for indoor environments
  • Silent operation: Fanless, ultra-quiet design with efficient heat dissipation, ensuring a noise-free working environment
  • Ensure stable network: Built-in loop detection and blocking automatically detects and blocks any network loops, ensuring smooth and uninterrupted network performance
  • Jumbo Frame supported: Supports 12K jumbo frame transmission, improving large file transfer efficiency and reducing packet loss rates

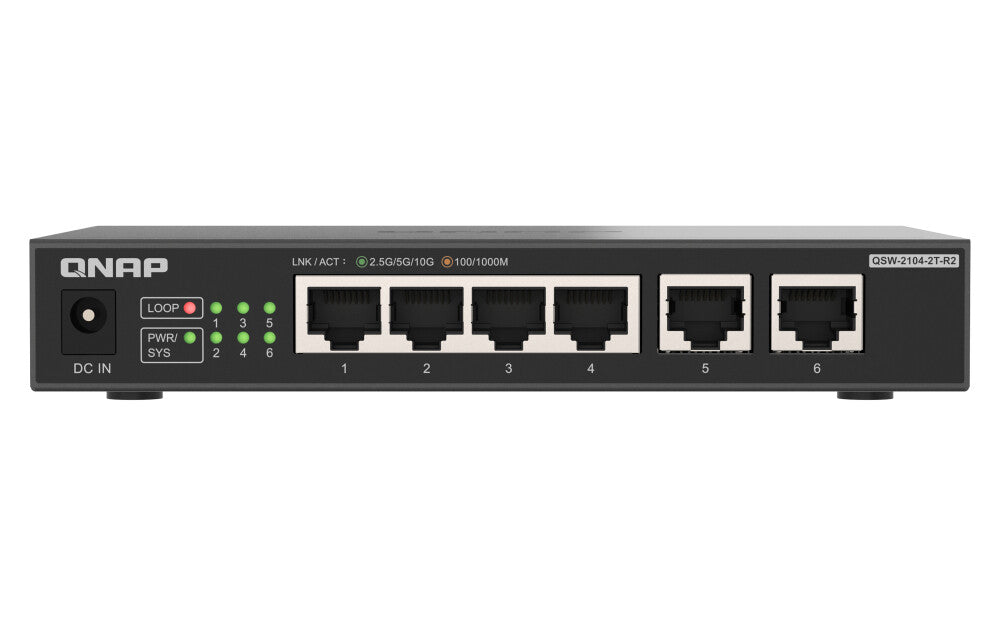

QSW-2104-2T-R2

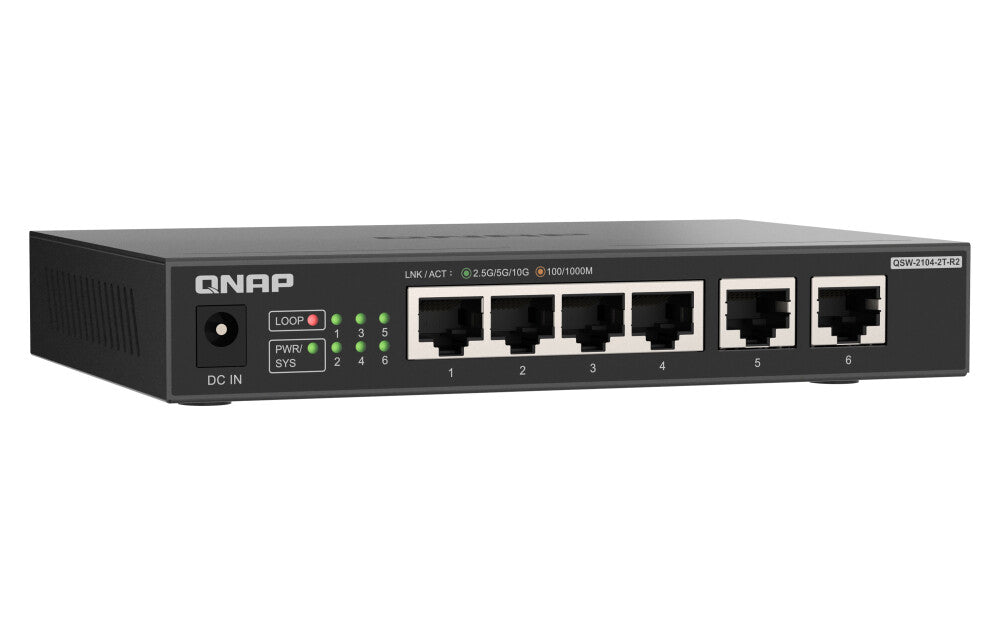

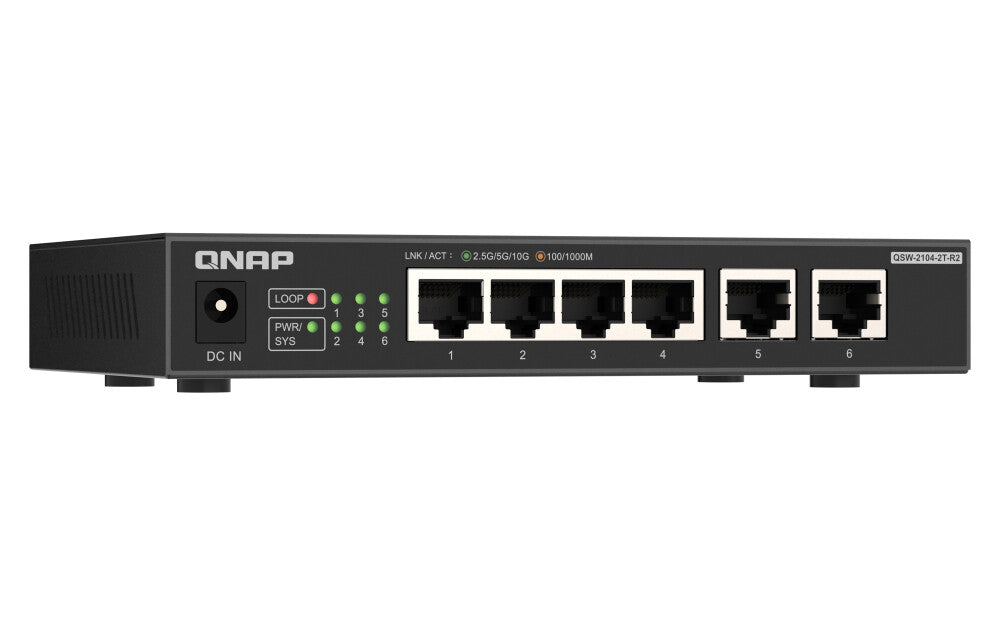

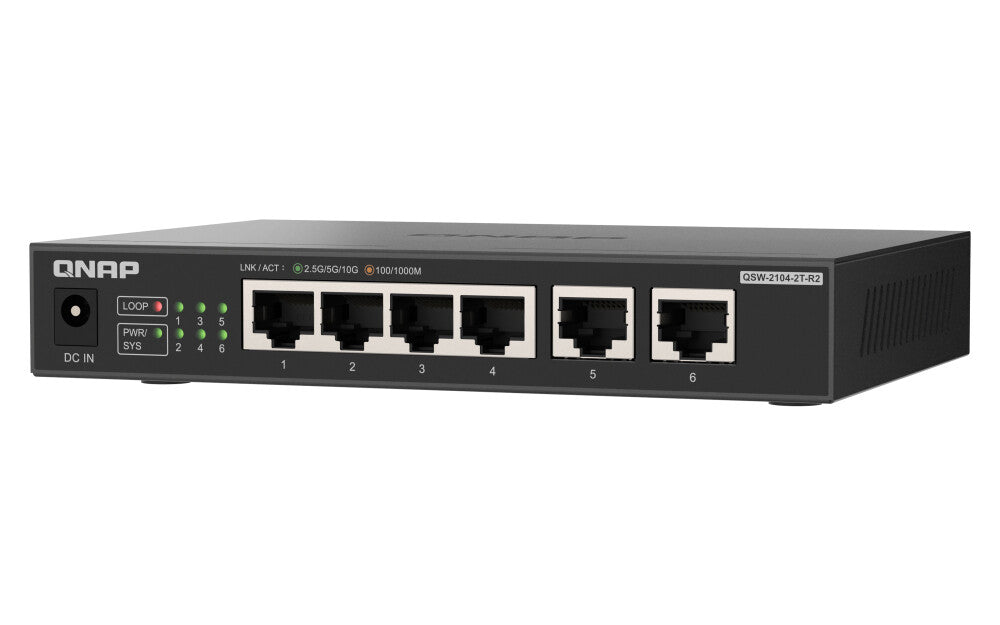

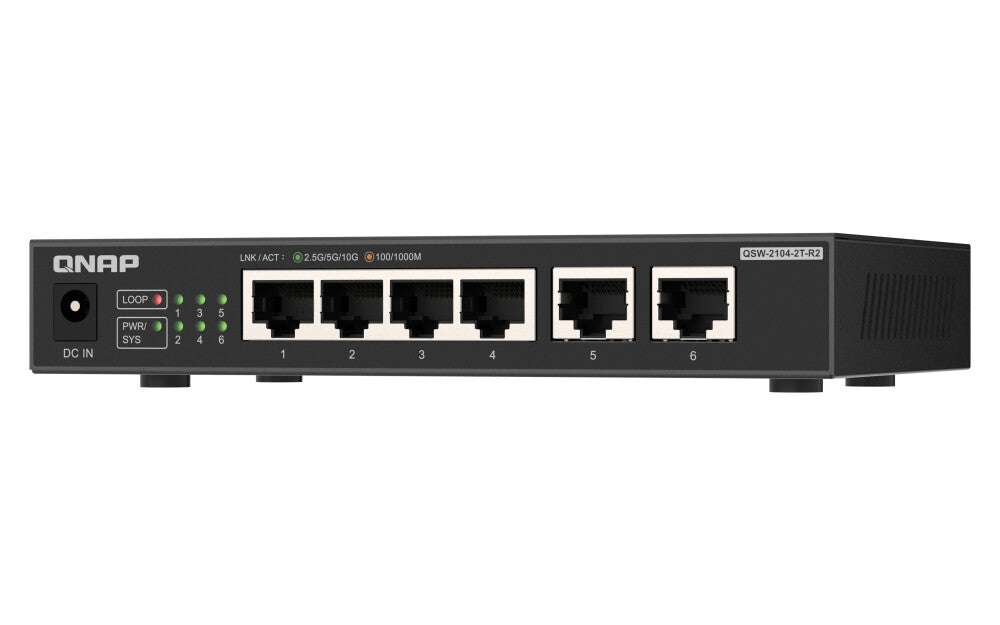

4-port 2.5GbE and 2-port 10GbE Multi-Gig unmanaged switch. Affordably upgrade to high-speed networking.

Upgrade now with our wallet-friendly compact 6-port high-speed switch! The QNAP QSW-2104-2T-R2 unmanaged switch with four 2.5GbE ports and two 10GbE ports allows you to upgrade to stable high-speed networking at an affordable price. Integrated seamlessly with Wi-Fi 6/6E/7 for optimal wireless network performance, the QSW-2104-2T-R2 is perfect for offices and multimedia teams, providing high-speed data transfer, large file sharing, and efficient collaborative workflows. The QSW-2104-2T-R2 is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

Management features
Switch type Unmanaged
Ports & interfaces
Power connector DC-in jack
10G Ethernet (copper) ports quantity 2
2.5G Ethernet (copper) ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity 6
Network
10G support Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Data transmission
Switching capacity 60 Gbit/s
MAC address table 4000 entries
Security
Loop protection Yes
Design
LED indicators Yes
Product colour Black
Form factor Desktop
Power
Power consumption (max) 18 W
Input voltage 1.5 V
Input current 12 A
Power supply included Yes
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating relative humidity (H-H) 10 - 95%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 450 g
Height 26 mm
Depth 110 mm
Width 160 mm
Packaging content
Manual Yes
Packaging data
Package weight 522 g
Package height 47 mm
Package depth 128 mm
Package width 254 mm
Certificates
Certification CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
