• Interface
• 24-port RJ45
• 12-port 10/100/1000Mbps “Data input”
• 12-port 10/100/1000Mbps “Data + Power output”
• One 10/100/1000BASE-T management port
• Reset button for system management
• Power over Ethernet
• Complies with IEEE 802.3at Power over Ethernet Plus mid-span PSE
• Up to 12 IEEE 802.3at/802.3af devices powered
• 220-watt PoE budget
• Supports PoE power up to 30.8 watts (802.3at PoE+) /15.4 watts (802.3af PoE) for each PoE port
• Automatically detects PD
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m cable length
• PoE Management
• Total PoE power budget control
• Per port PoE power schedule
• PoE function enable/disable
• Per port PoE function enable/disable
• PoE port power feeding priority
• PD classification detection
• Over temperature protection
• PD alive check
• Management
• Web interface for remote management
• Supports Network Time Protocol (NTP)
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP trap for alarm notification of events
• System log and remote syslog
• Hardware
• 19-inch rack mountable; 1U height
• Reset button for resetting to default setting and system reboot
• LED indicators for PoE ready and PoE activity
• LED indicators for power alert and fan alert
• FCC Part 15 Class A, CE

PLANET POE Managed PoE Injector Hub series, a cost-effective and quick PoE solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3at Power over Ethernet Plus network system without replacing the existing Ethernet Switch.

A Cost-effective Managed PoE+ Injector Hub

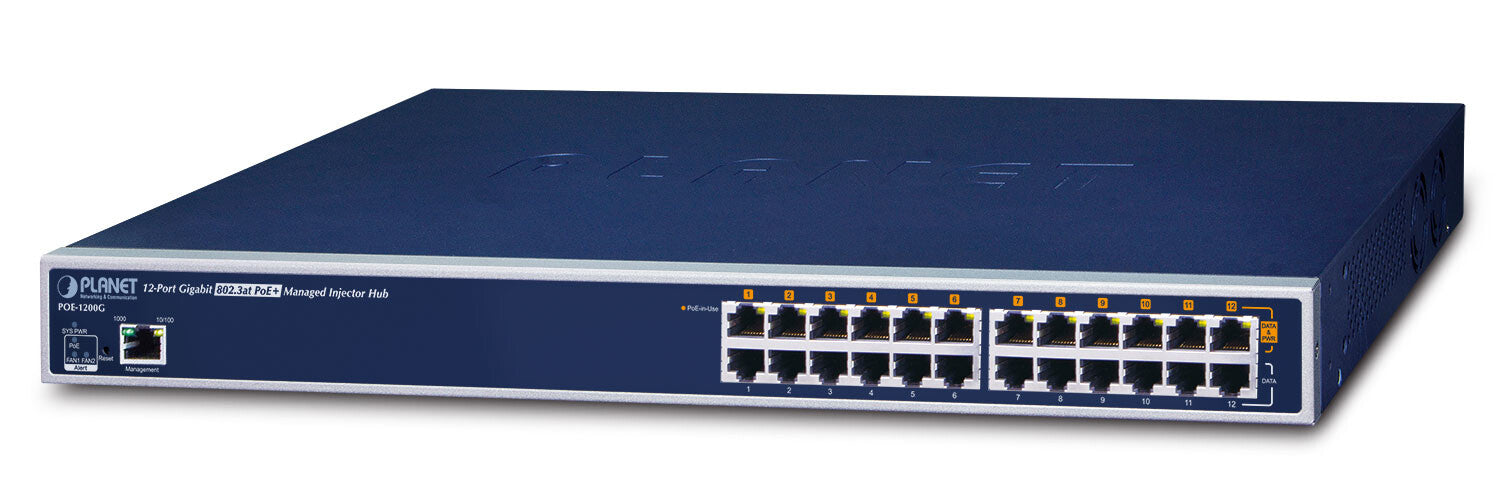

With PoE in great demand, the IEEE 802.3af standard is being replaced by IEEE 802.3at (also known as PoE Plus) Type 1. PLANET new POE-1200G is specifically designed to support 802.3at PoE+. The POE-1200G is a high-density, rack-mountable managed PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. As its name implies, the unit can inject a total PoE budget of 220 watts into PDs. Its 12 10/100/1000BASE-T Ethernet ports can each deliver up to 36 watts of power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to remote 802.3at/af powered devices (PDs).

The POE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Quick and Easy PoE Network Deployment
The POE-1200G is installed between a regular Ethernet Switch and the PDs. There are totally 24 RJ45 STP ports on the front panel of the POE-1200G, of which the 12 ports are on the lower stack functioned as "Data input" while the other 12 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the POE-1200G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
