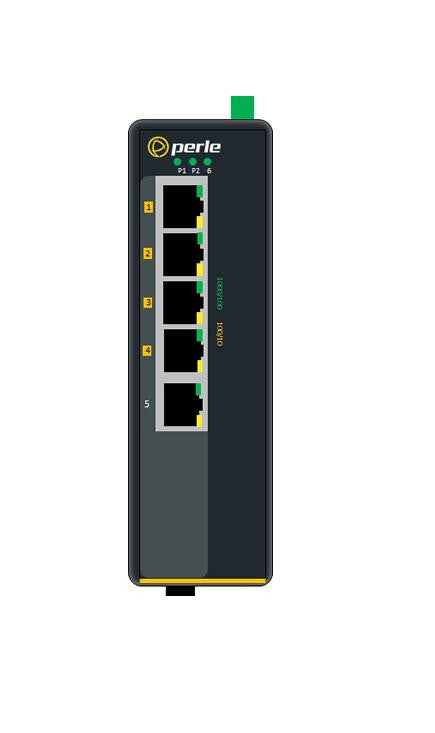

Perle IDS-105GPP-S2SC10 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Couldn't load pickup availability
- Basic switching RJ-45 Ethernet ports quantity: 5
- 1000BASE-T, 100BASE-T, 10BASE-T
- MAC address table: 8000 entries
- Power over Ethernet (PoE)
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-108FPP have 4 ports that also provide up to 30 watts of power to Powered Devices (PDs) such as wireless access points, Voice over IP phones and IP cameras. Learn more about PoE.
The IDS-105GPP is a 5 to 7 port Industrial Gigabit Ethernet switch providing advanced performance enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
IDS-105G are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C. They come in a variety of models with 5 copper ports, 5 copper ports plus 1 fiber port or 5 copper ports plus 2 fiber ports.
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Optical fiber | |
|---|---|
| Wavelength | 1310 nm |
| Transmission distance (max) | 10 km |
| Fiber type | Single-mode |
| Fiber ethernet cabling technology | 1000BASE‑LH, 1000BASE‑LX |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 485 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 370 g |
| Height | 138 mm |
| Depth | 111 mm |
| Width | 35.5 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 520 g |
| Package height | 70 mm |
| Package depth | 260 mm |
| Package width | 170 mm |
