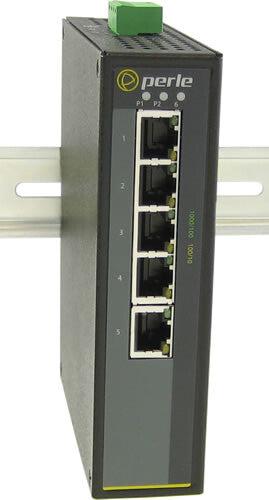

Perle IDS-105G-S1SC20U Unmanaged Gigabit Ethernet (10/100/1000) Black
Couldn't load pickup availability
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- 1000BASE-T, 100BASE-T, 10BASE-T
- MAC address table: 8000 entries
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
The IDS-105G is a 5 to 7 port Industrial Gigabit Ethernet switch providing advanced performance enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
The IDS-105G which comes in a variety of models with 5 copper ports, 5 copper ports plus 1 fiber port or 5 copper ports plus 2 fiber ports. All are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C.
Perle has been designing industrial hardware for serial ModBus and Profinet to Ethernet conversion environments for over 35 years and have used this expertise to design the toughest Ethernet switches on the market. Don’t trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you proven assurance that your system will keep running for years to come.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SC |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Optical fiber | |
|---|---|
| Wavelength | 1550 nm |
| Transmission distance (max) | 20 km |
| Fiber type | Single-mode |
| Fiber ethernet cabling technology | 1000BASE‑BX, 1000BASE‑BX10 |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| MAC address table | 8000 entries |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 41 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 320 g |
| Height | 35.5 mm |
| Depth | 138 mm |
| Width | 111 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 470 g |
| Package height | 170 mm |
| Package depth | 70 mm |
| Package width | 260 mm |
