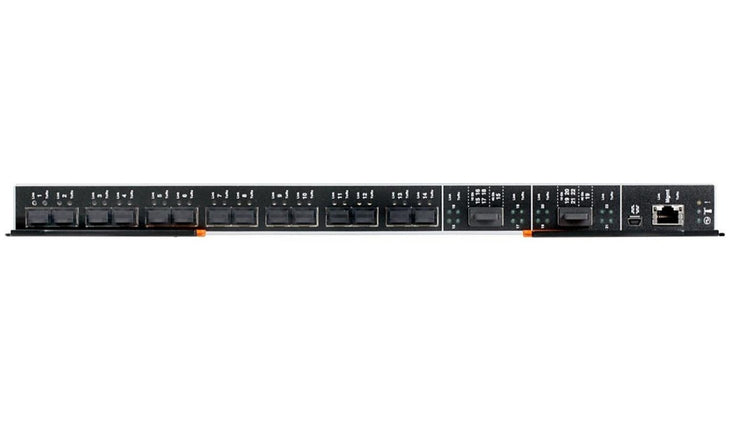

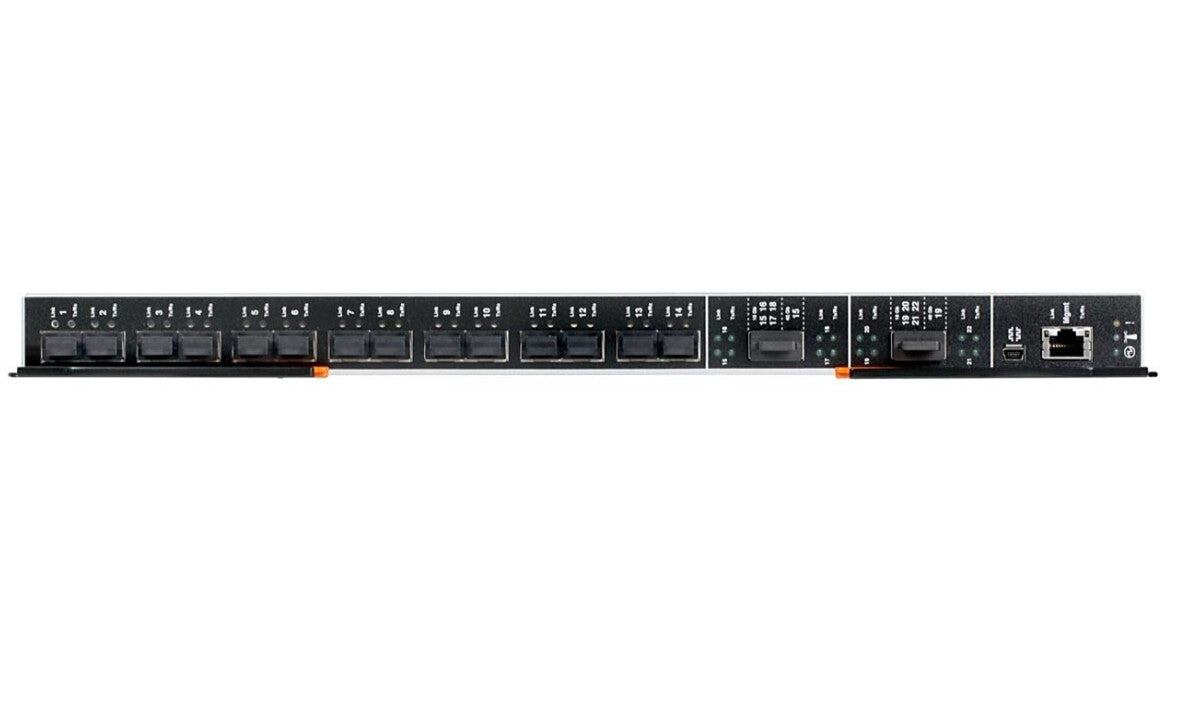

Lenovo 00FM518 network switch Managed L2/L3 Black
Couldn't load pickup availability
- Managed L2/L3 SNMP v1,v3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 128000 entries
- Access Control List (ACL)
The Lenovo® Flex System Fabric SI4093 System Interconnect Module enables simplified integration of Flex System™ into your networking infrastructure and provides the capability of building simple connectivity for points of delivery or clusters up to 126 nodes.
The SI4093 requires no management for most data center environments, which eliminates the need to configure each networking device or individual ports, thus reducing the number of management points. It provides a low latency, loop-free interface that does not rely upon spanning tree protocols, which removes one of the greatest deployment and management complexities of a traditional switch. The SI4093 offers administrators a simplified deployment experience while maintaining the performance of intra-chassis connectivity.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Network | |
|---|---|
| Number of VLANs | 4095 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 10GBASE-T, 40GBASE-ESR4, 40GBASE-LR4 |
| Data transmission | |
|---|---|
| MAC address table | 128000 entries |
| Security | |
|---|---|
| Security algorithms | SSH |
| Access Control List (ACL) | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1,v3 |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 236805 h |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 30 mm |
| Depth | 317 mm |
| Width | 401 mm |
| Packaging data | |
|---|---|
| Package weight | 4.1 kg |
| Package height | 114 mm |
| Package depth | 432 mm |
| Package width | 508 mm |
| Certificates | |
|---|---|
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class AIEC/EN 60950-1, Second EditionCanada ICES-003, issue 4, Class AJapan VCCI, Class AAustralia/New Zealand AS/NZS CISPR 22:2006, Class ATaiwan BSMI CNS13438, Class ACE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3)CISPR 22, Class AChina GB 9254-1998Turkey Communiqué 2004/9; Communiqué 2004/22Saudi Arabia EMC.CVG, 28 October 2002 |
