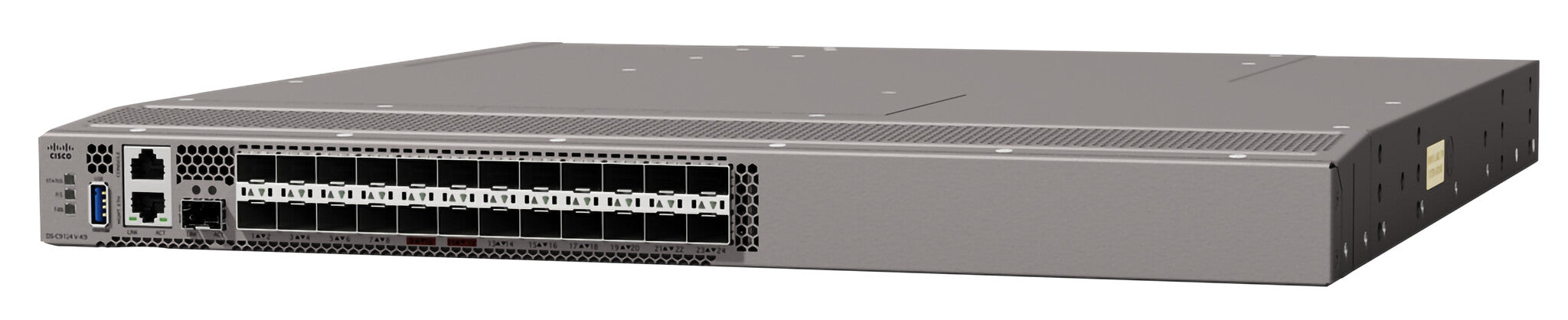

HPE SN6710C 64Gb 24/8 32Gb Short Wave SFP+ Fibre Channel v2 Switch
Couldn't load pickup availability
- Managed SNMP v3
- Console port: RS-232
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
Are you looking for a high-performance Fibre Channel (FC) switch for the modern SAN? The HPE Storage Fibre Channel Switch C-series SN6710C delivers 64 or 32 Gbps Fibre Channel switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-the-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6710C is available with partially populated or fully populated ports with either 64 Gb or 32 Gb speeds. Additionally, investing in this switch for the lower-speed (32 Gbps) server rack gives you the flexibility to upgrade to 64 Gbps performance in the future.
What is new supporting point:
HPE Storage Fibre Channel Switch C-series SN6710C configurations.
8 port upgrade license.
SKUs with up-front cost relief (designated by "v2" in description).
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RS-232 |
| SFP+ module slots quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | No |
| Security | |
|---|---|
| Security algorithms | SNMPv3 |
| Authentication type | RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v3 |
| Design | |
|---|---|
| Number of fans | 4 fan(s) |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 286 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating altitude | -60 - 2000 m |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.5 kg |
| Height | 457.2 mm |
| Depth | 439.4 mm |
| Width | 43.7 mm |
