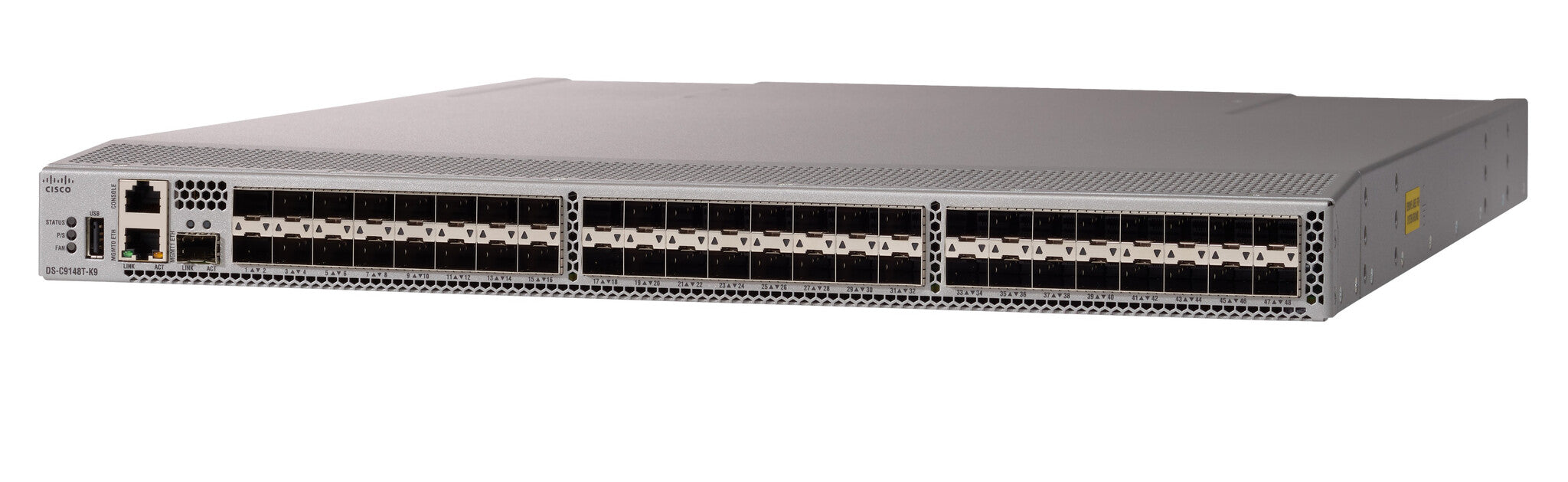

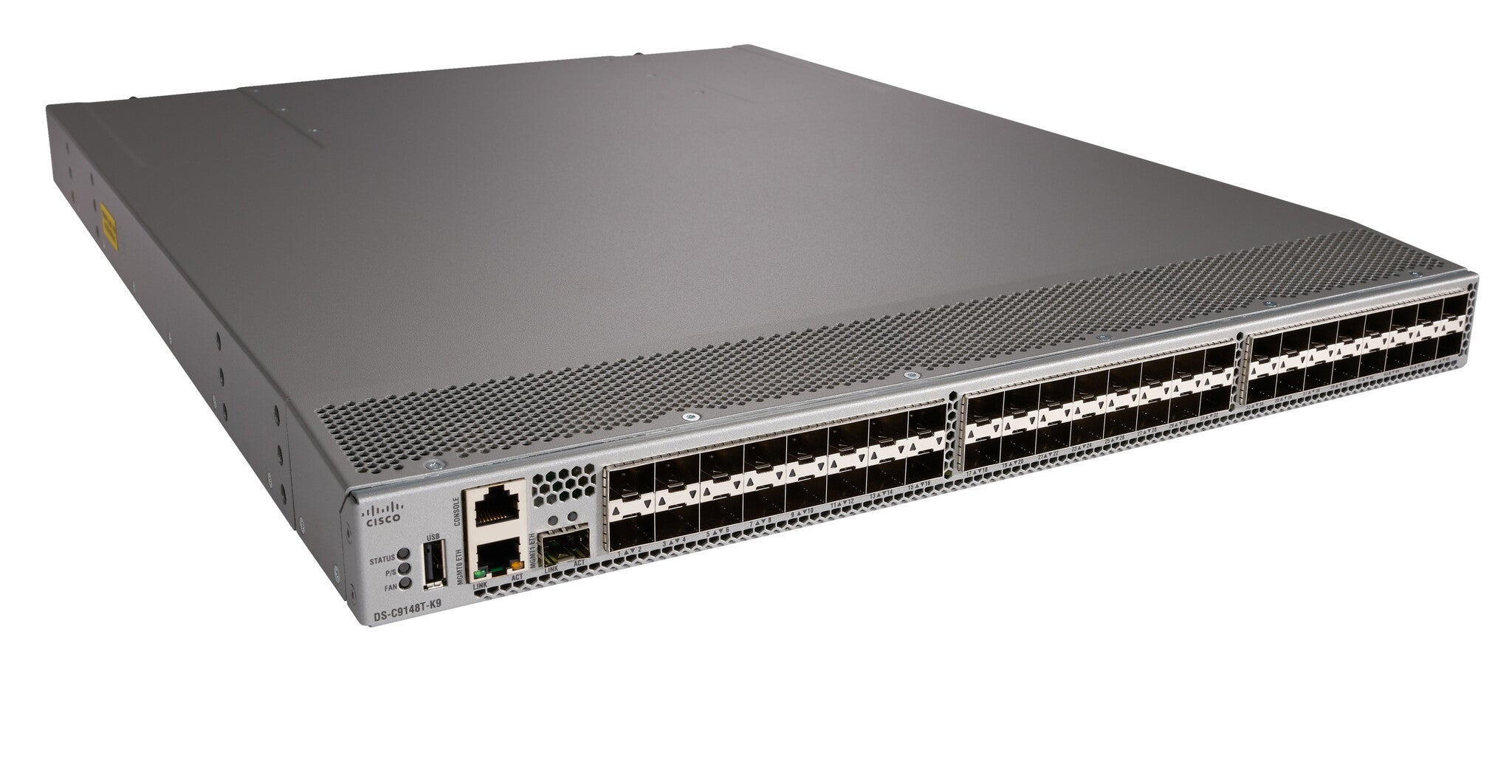

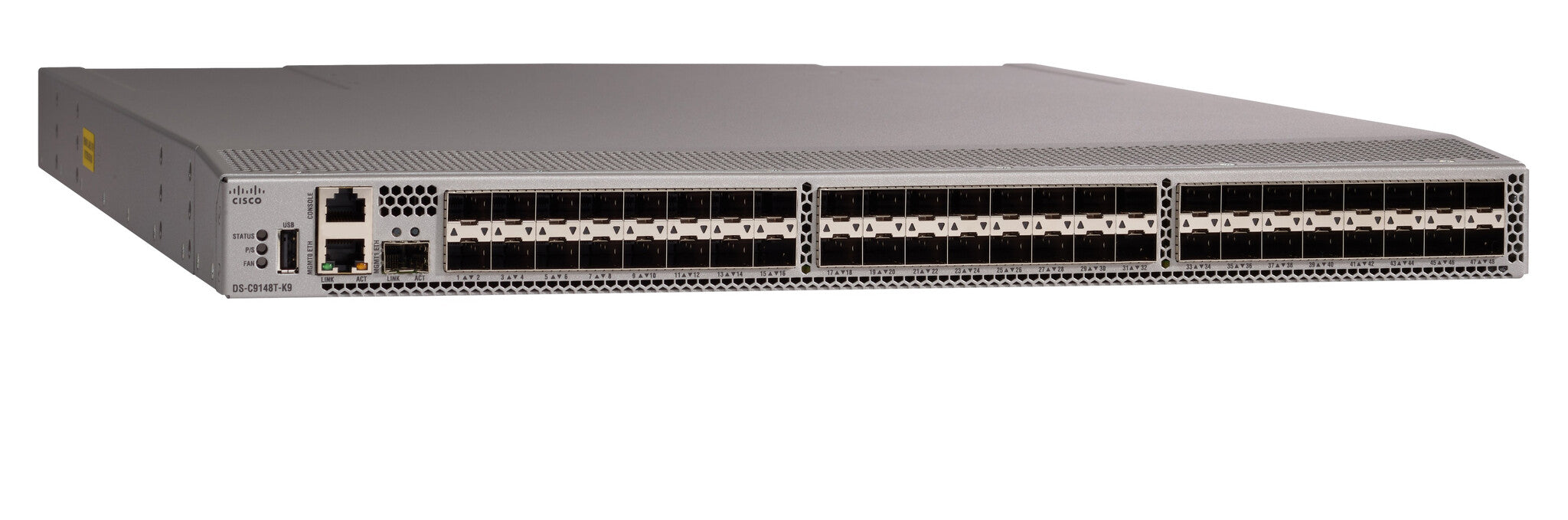

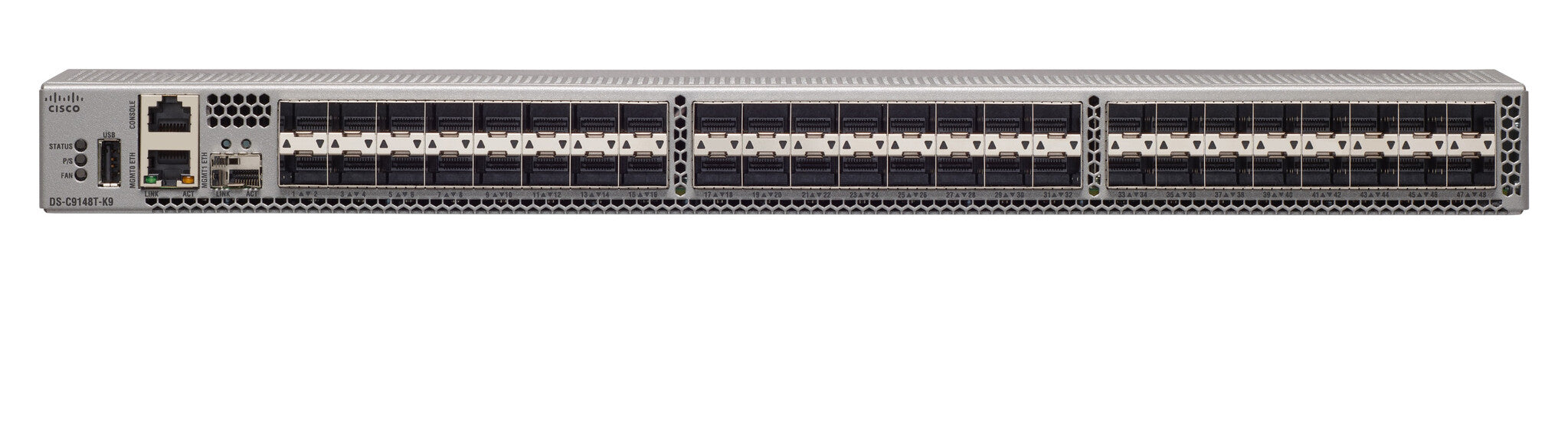

HPE SN6620C 32Gb 48-port 32Gb SFP+ Fibre Channel Switch
Couldn't load pickup availability
- Managed SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI
- Quality of Service (QoS) support
- Switching capacity: 1536 Gbit/s
- 1U Rack mounting
- Power supply included
Are you looking for a high-speed Fibre Channel connectivity for NVMe/All-Flash arrays? HPE Storage Fibre Channel Switch C-series SN6620C delivers 32 Gbps FC switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications providing the benefits of greater bandwidth, scale, and consolidation. The switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (FC-NVMe) workloads whenever available without any hardware upgrade in the SAN. For flexibility, the HPE Storage Fibre Channel Switch C-series SN6620C scales from 24-48 ports. Additionally, investing in this switch for the lower speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.
What is new supporting point:
New subscription-based Advantage and Premier license bundles with Cisco DCNM / Cisco Nexus Dashboard Fabric Controller (NDFC), Enterprise and SAN Analytics.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | No |
| Data transmission | |
|---|---|
| Switching capacity | 1536 Gbit/s |
| MAC address table | 0 entries |
| Security | |
|---|---|
| Security algorithms | SNMPv3 |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI |
| Design | |
|---|---|
| Number of fans | 4 fan(s) |
| Product colour | Metallic |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.66 kg |
| Height | 43.7 mm |
| Depth | 566 mm |
| Width | 43.7 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
