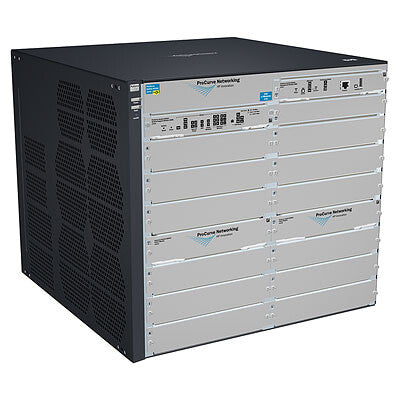

HPE ProCurve 8212-92G-PoE Managed L3+ Power over Ethernet (PoE) 19U Black
Couldn't load pickup availability
- Managed L3+ SNMPv1/v2c/v3
- Basic switching RJ-45 Ethernet ports quantity: 96 Console port: RS-232
- 10G support
- Switching capacity: 993.6 Gbit/s
- 19U Rack mounting
- Power over Ethernet (PoE)
Overview
The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl Switch Series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches. Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl Switch Series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments. It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
| Management features | |
|---|---|
| Switch layer | L3+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RS-232 |
| Fiber optic connector | SFP |
| SFP+ module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 96 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x |
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Throughput | 739 Mpps |
| Switching capacity | 993.6 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC, ICE, VCCI, EN |
| Safety | CSA, UL, IEC, EN |
| LED indicators | Power |
| Product colour | Black |
| Form factor | 19U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 63 dB |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 127 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Connectivity technology | Wired |
| Latency | 3.7 |
| Operational conditions | |
|---|---|
| Heat dissipation | 4900 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 46.6 kg |
| Height | 392.6 mm |
| Depth | 475 mm |
| Width | 444.5 mm |
| General | |
|---|---|
| Product family | ProCurve |
| Product series | E8200 zl |
