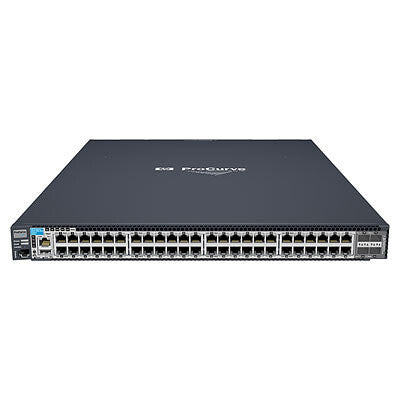

HPE ProCurve 6600-48G-4XG Managed L2 1U Black
Couldn't load pickup availability
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RS-232
- 1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 64000 entries Switching capacity: 176 Gbit/s
- 1U Rack mounting Stackable
The HP 6600 Switch Series consists of the most advanced data center server edge switches in the HP networking product line. The 6600 switch series includes 10/100/1000Base-T and 10-GbE SFP+ 1U rackmount switches enhanced for server edge connectivity with front-to-back (reversible) airflow, redundant hot-swappable power, and redundant hot-swappable fans. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of connectivity interfaces and expanded buffering, the 6600 switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.
- Enhanced for data center server access layer
- Front-to-back, reversible airflow
- Redundant, hot-swappable power supplies and fans
- 64K MAC address scalability
- Consistent ProVision ASIC-based switch fabric
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Console port | RS-232 |
| SFP+ module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Routing entries | 10000 |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3 |
| Data transmission | |
|---|---|
| Packet buffer memory | 108 MB |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Throughput | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
| Safety | CSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950 |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 71.8 dB |
| Flash memory | 4 MB |
| Internal memory | 256 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Power consumption (typical) | 226 W |
| Input voltage | 100-120/200-240 VAC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Power supply slots open | 2 |
| Weight (imperial) | 10.7 kg (23.5 lbs) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Size (imperial) | 64.1 cm (25.2") |
| Input frequency | 50 - 60 Hz |
| Power LED | Yes |
| Dimensions (WxDxH) | 641.4 x 442.5 x 43.2 mm |
| Latency | 2.4, 3.4 |
| Operational conditions | |
|---|---|
| Heat dissipation | 890 BTU/h |
| Non-operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 10.7 kg |
| Height | 43 mm |
| Depth | 442 mm |
| Width | 641 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| General | |
|---|---|
| Product family | ProCurve |
| Product series | E6600 |
