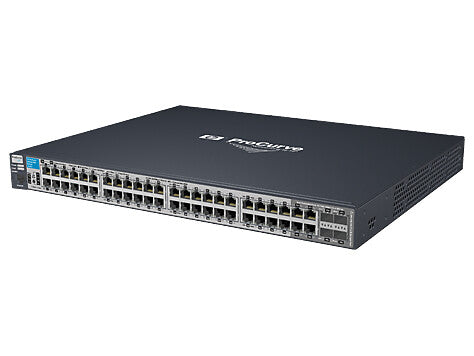

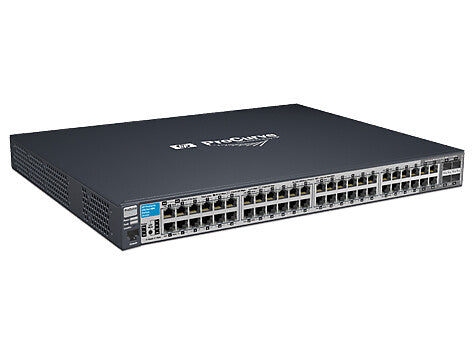

HPE ProCurve 2910al-48G-PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power over Ethernet (PoE)
The HP ProCurve 2910al Switch Series consists of four switches: the HP ProCurve 2910al-24G and 2910al-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP ProCurve 2910al-48G and 2910al-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910al switch supports up to four optional 10-Gigabit (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.
| Management features | |
|---|---|
| MIB support | MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB |
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 2000 |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 6 MB |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1.3 µs |
| Latency (1 Gbps) | 2.9 µs |
| Throughput | 131 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC part 15 Class A; EN 55022/CISPR-22 Class A; VCCI Class A. |
| Safety | EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950. |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM |
| Processor frequency | 515 MHz |
| Processor model | ARM11 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 556 W |
| Input current | 6.4 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 667 BTU/h |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.88 kg |
| Height | 44 mm |
| Depth | 365.8 mm |
| Width | 442.5 mm |
| General | |
|---|---|
| Product family | ProCurve |
| Product series | E2910 al |
