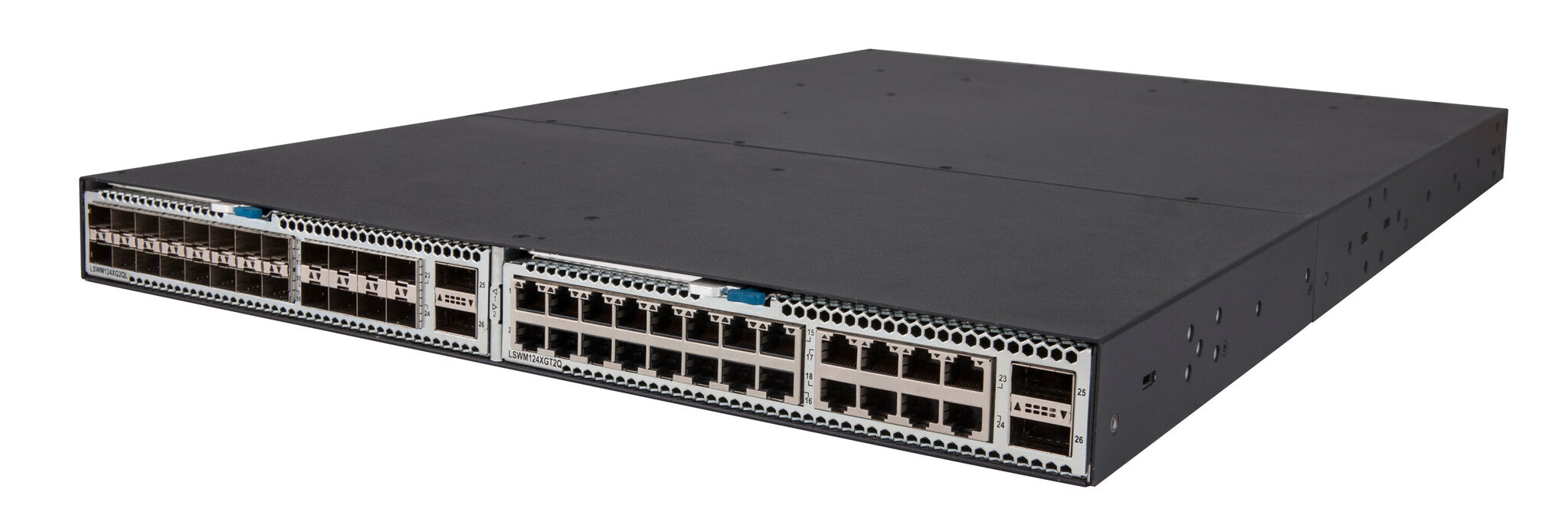

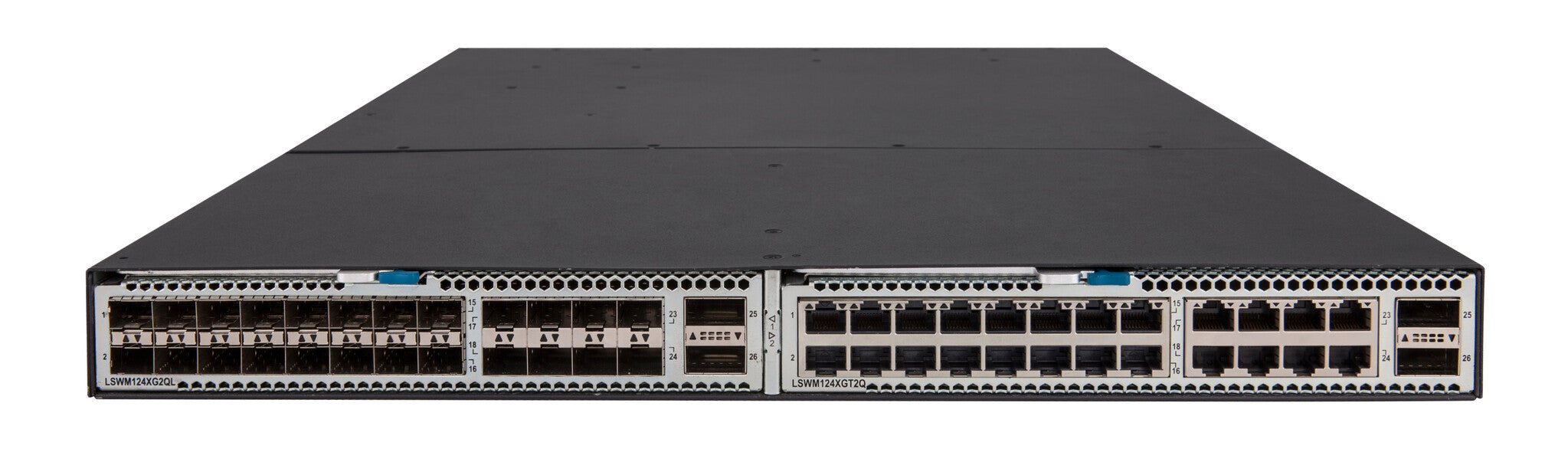

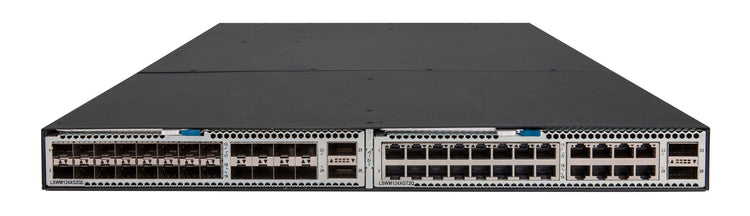

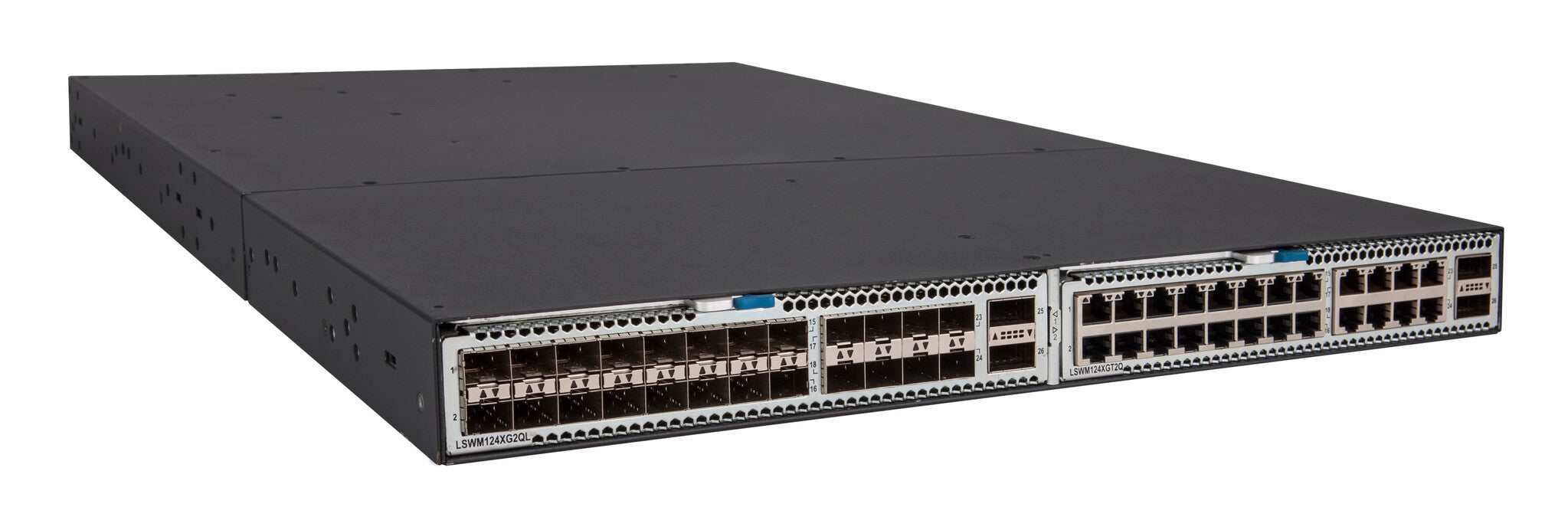

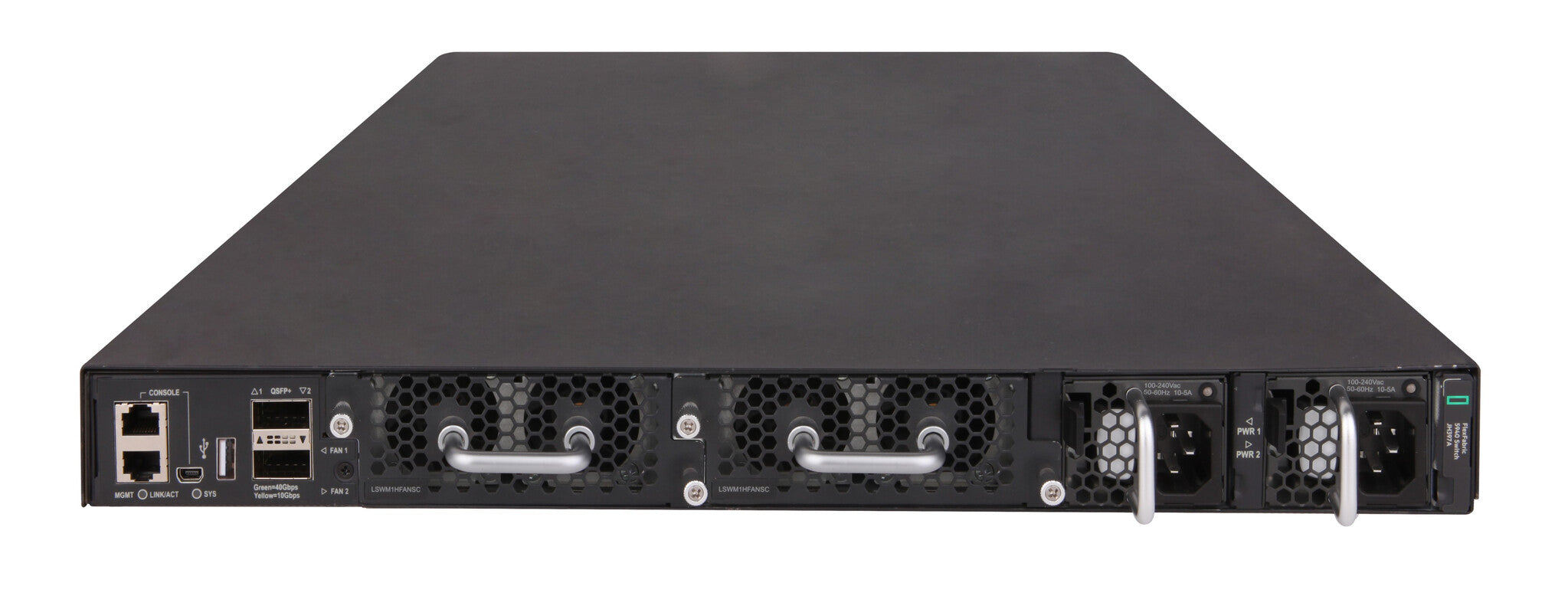

HPE Networking Comware Switch 48XGT 6QSFP28 5940
Couldn't load pickup availability
- Managed L2/L3 Web-based management SNMP, Telnet, FTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/Mini-USB
- 10G support
- MAC address table: 288000 entries Switching capacity: 2160 Gbit/s
- 1U Rack mounting Stackable
The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. The 5940 Switch includes 100G uplink technology which is part of the HPE FlexFabric data center solution and is a cornerstone of the FlexNetwork architecture. The 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.
What is new supporting point:
Pre-configured switch bundles for deployment in the campus aggregation and core.
VXLAN Layer 2 and Layer 3 gateway support.
Comware 7 advanced modular operating system designed for high availability.
IRF supports of up to nine switches simplifies management by up to 88%.
EVPN, OpenFlow and SDN automate manual tasks and speed service delivery.
HPE FlexFabric Network Analytics solution provides network visibility and all information to run the network at its optimal performance.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Fiber optic connector | QSFP28 |
| QSFP+ module slots quantity | 6 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| 10G support | Yes |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| Packet buffer memory | 16 MB |
| Latency (10 Gbps) | 1 µs |
| Throughput | 1607 Mpps |
| Switching capacity | 2160 Gbit/s |
| MAC address table | 288000 entries |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP, Telnet, FTP |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 1024 MB |
| Internal memory | 4096 MB |
| Physical stacking (units) | 9 |
| Power | |
|---|---|
| Power consumption (max) | 320 W |
| Power consumption (typical) | 320 W |
| Input voltage | -40 - -75 V |
| DC input voltage | 40 - 60 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | No |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Warranty period | 1 year(s) |
| Operational conditions | |
|---|---|
| Heat dissipation | 887 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Height | 43.6 mm |
| Depth | 660 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
