£17,171.99

Stock Available: 0
  • Managed L2/L3
  • Quality of Service (QoS) support
  • 10G support
  • Switching capacity: 1440 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC Power supply included

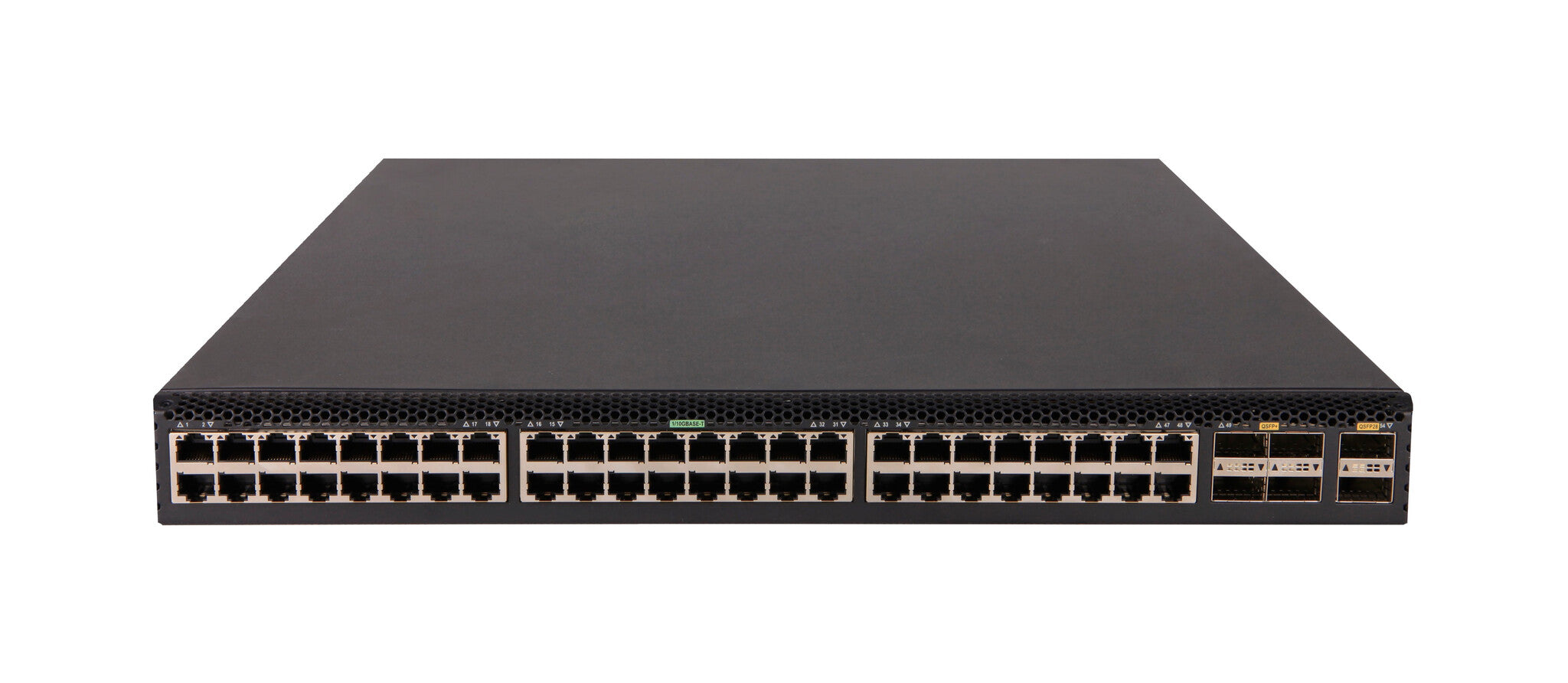

The HPE Networking Comware Switch Series 5710 are purpose built top-of-rack data center switches that address the growth of Web, cloud and dense virtualized environments that require high performance 1/10GbE server connectivity, direct attached IP storage networking and GbE out-of-band server management. The 5710 Series switch is a family of fixed high-performance and low-latency 1/10GbE top-of-rack data center switches designed for small to mid-size data center rack server connectivity. The HPE Networking Comware Switch Series 5710 provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the 5710 Series switch offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.

What is new supporting point:
Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products
Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.

Management features
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 48
Basic switching RJ-45 Ethernet ports type No
Network
10G support Yes
Data transmission
Packet buffer memory 12 MB
Jumbo frames support Yes
Latency (10 Gbps) 1.5 µs
Throughput 1071 Mpps
Switching capacity 1440 Gbit/s
Security
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP server
Protocols
Routing protocols BGP, IS-IS, MPLS, OSPF, RIP, VRRP
Design
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 1024 MB
Internal memory 4096 MB
Memory type SDRAM
Physical stacking (units) 9
Power
Power consumption (max) 74 W
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 607 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 45 °C
Logistics data
Harmonized System (HS) code 85176990
