£508.99

Stock Available: 0
  • Managed L3 SNMP
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 16384 entries Switching capacity: 20 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC Power supply included Power over Ethernet (PoE)

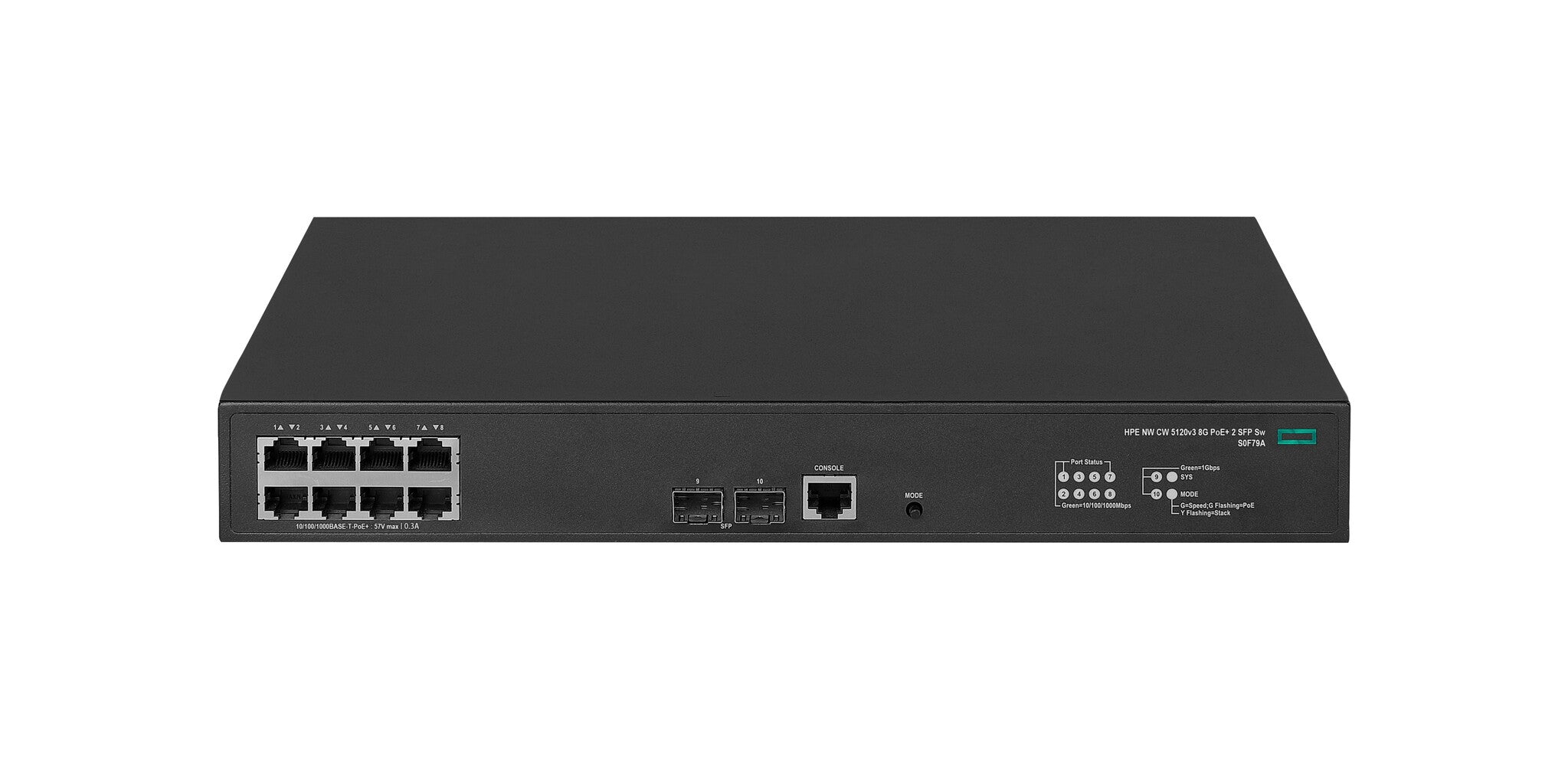

HPE Networking Comware 5120v3 Campus Switch Series offers cost-effective high-performance Gigabit Ethernet connectivity tailored for small organizations with limited IT personnel. PoE+ ports seamlessly support voice, video, and wireless applications. Fanless design helps ensures silent operation while the compact size allows flexible placement options. Embedded power supplies help minimize heat dissipation, promoting a cool and reliable networking environment. These switches offer advanced functionalities such as IRF stacking that enables higher redundancy and reliability, while access control lists (ACLs) empower network administrators to enforce security policies, manage traffic, and safeguard network resources. This switch series also includes SmartMC at no additional cost, and when combined with HPE Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.

What is new supporting point:
Low cost, Gigabit Ethernet access switch for small- to medium-sized organizations with Layer 2 routing, RIP, and PoE+ models for voice, video, and wireless.
Includes embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC).
SNMP-based centralized network management with HPE Intelligent Management Center for consistent network manageability and CLI, Telnet, and web-based network management for easier device management.
HPE Intelligent Resilient Framework (IRF) technology that enables plug-and-play device aggregation and link aggregation of up to 9 devices, enhancing network redundancy and resource utilization.
MAC address support of up to 16K enables greater scalability, more devices can be added into the network and access policies can be defined per their MAC addresses leading to greater network security.
Fanless switch with embedded power supplies offers the advantages of low power consumption, noise-free operation, and reduced heat dissipation.

Management features
Switch layer L3
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Spanning tree protocol Yes
10G support No
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 1.5 MB
Latency (1 Gbps) 5 µs
Throughput 15 Mpps
Switching capacity 20 Gbit/s
MAC address table 16384 entries
Security
Authentication MAC-based authentication
Access Control List (ACL) Yes
Protocols
Management protocols SNMP
Design
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 256 MB
Internal memory 512 MB
Memory type SDRAM
Physical stacking (units) 9
Power
Power consumption (max) 125 W
AC input frequency 50/60 Hz
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 30 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 3 kg
Height 43.6 mm
Depth 239 mm
Width 330 mm
