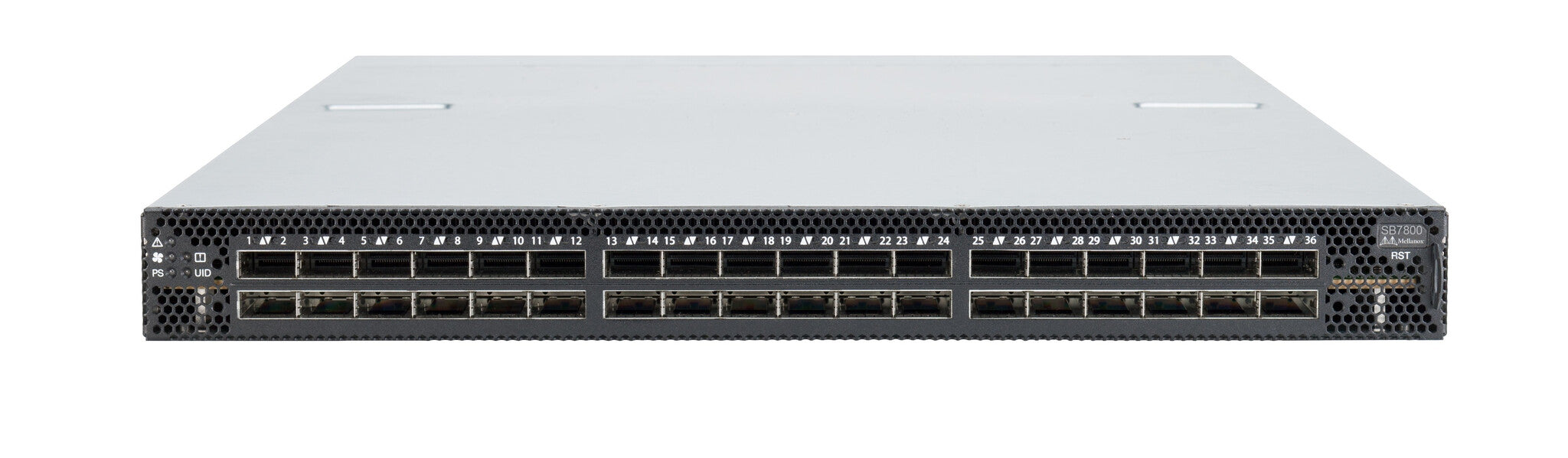

HPE Mellanox InfiniBand EDR v2 Managed 1U Metallic

HPE Mellanox InfiniBand EDR v2 Managed 1U Metallic

Hewlett Packard Enterprise
£37,799.99
Stock Available: 0
  • Managed
  • MAC address table: 16384 entries Switching capacity: 7000 Gbit/s
  • 1U Rack mounting Stackable
  • Power supply included

Mellanox InfiniBand (IB) EDR Switches are supported to work with HPE InfiniBand Adapters to deliver high performance connectivity for HPC clusters using HPE ProLiant XL and DL Server families. The 1U switches feature 36 QSFP28 ports delivering up to 7Tbps of non-blocking bandwidth with 90ns port-to-port latency.

Ideally suited for Customers who deploy high-performance computing (HPC) clusters based on HPE ProLiant XL and DL Servers using InfiniBand technology.

Management features
Switch type Managed
Ports & interfaces
Fiber optic connector QSFP28
Fiber ports quantity 36
Basic switching RJ-45 Ethernet ports type No
Network
Port mirroring Yes
Optical fiber
Switching optical modules type 100 Gigabit Ethernet
Data transmission
Switching capacity 7000 Gbit/s
MAC address table 16384 entries
Design
Airflow direction Front-to-back airflow
Number of fans 4 fan(s)
Product colour Metallic
Form factor 1U
Stackable Yes
Rack mounting Yes
Power
Power consumption (max) 374 W
Power consumption (typical) 136.08 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 2
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 11 kg
Height 43.7 mm
Depth 685.8 mm
Width 427.7 mm
Packaging content
Quick start guide Yes
