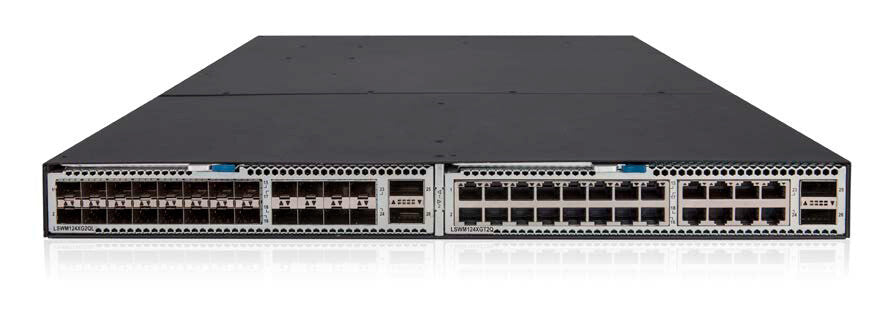

HPE FlexFabric 5930 Managed L3 1U
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Console port: RJ-45
- 10G support
- MAC address table: 288000 entries Switching capacity: 1440 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
The HPE FlexFabric 5930 Switch Series provides a high performance and ultra-low-latency 40 GbE Top-of-Rack (ToR) data center switch. The switch series is part of the Hewlett Packard Enterprise FlexFabric data center solution, which is a cornerstone of the FlexNetwork architecture. With the increase pace of deploying virtualized applications, adopting Software-Defined networking, and the server-to-server traffic, many data centers now require spine and ToR switch innovations that will meet their requirements.
Included in this bundle: (1) FlexFabric 5930 2QSFP+ 2-slot Switch (JH178A), (2) HPE X712 Back (Power
Side) to Front (Port Side) Airflow High Volume Fan Tray (JG553A), and (2) HPE 58x0AF 650W AC Power
Supply (JC680A)
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| QSFP+ module slots quantity | 2 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x |
| Optical fiber | |
|---|---|
| Switching optical modules type | 40 Gigabit Ethernet |
| Data transmission | |
|---|---|
| Packet buffer memory | 12.2 MB |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1 µs |
| Throughput | 1071 Mpps |
| Switching capacity | 1440 Gbit/s |
| MAC address table | 288000 entries |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Protocols | |
|---|---|
| IPv6 FIB entries | 64000 |
| IPv4 FIB entries | 128000 |
| Design | |
|---|---|
| Airflow direction | Back-to-front airflow |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 1024 MB |
| Internal memory | 4096 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Number of power supply units | 2 |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 44.2 mm |
| Depth | 660 mm |
| Width | 440 mm |
